Cruise Control Component Views

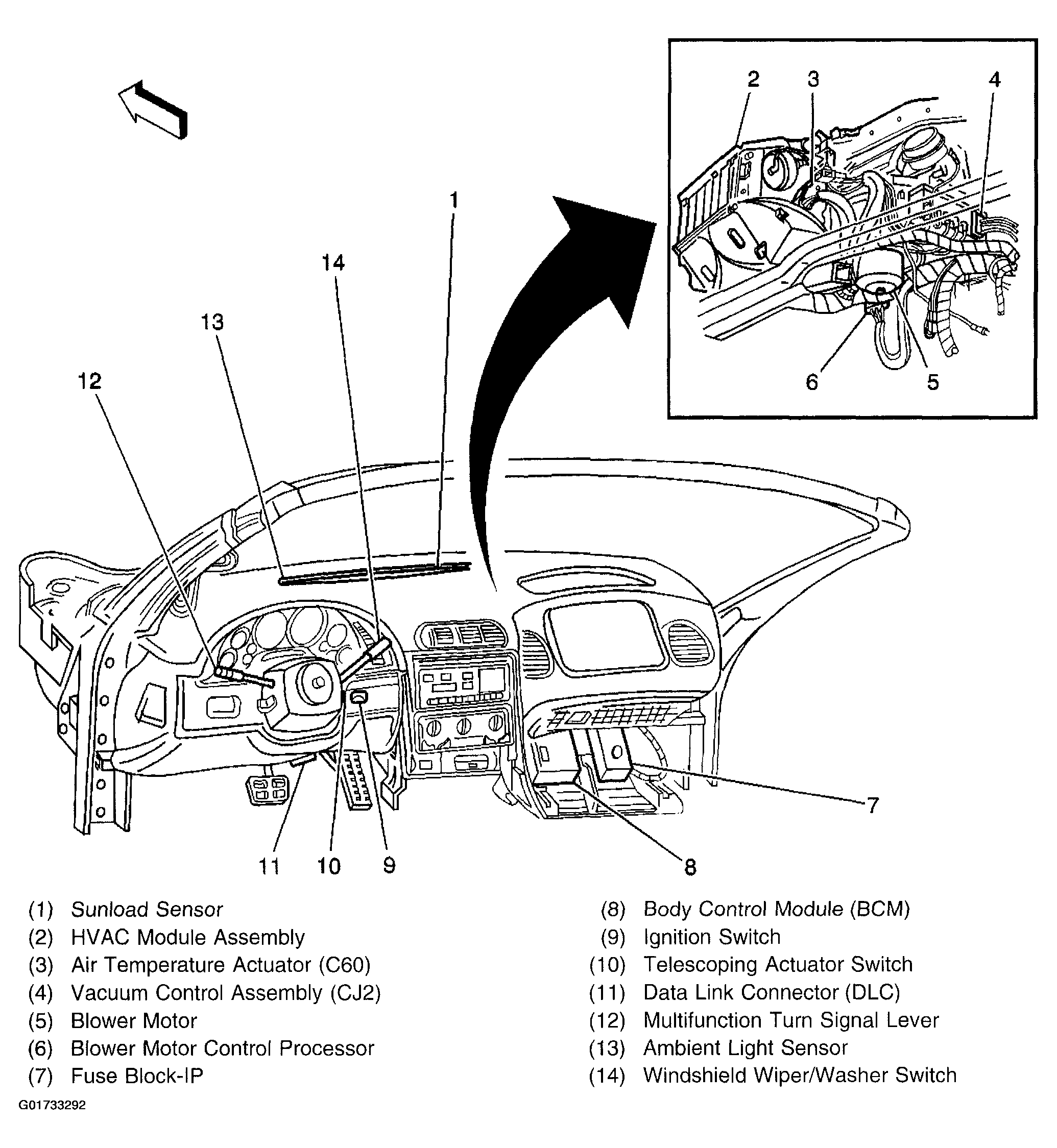

Fig 1: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Fig 2: Under Side of the Dash - Left

Courtesy of GENERAL MOTORS CORP.

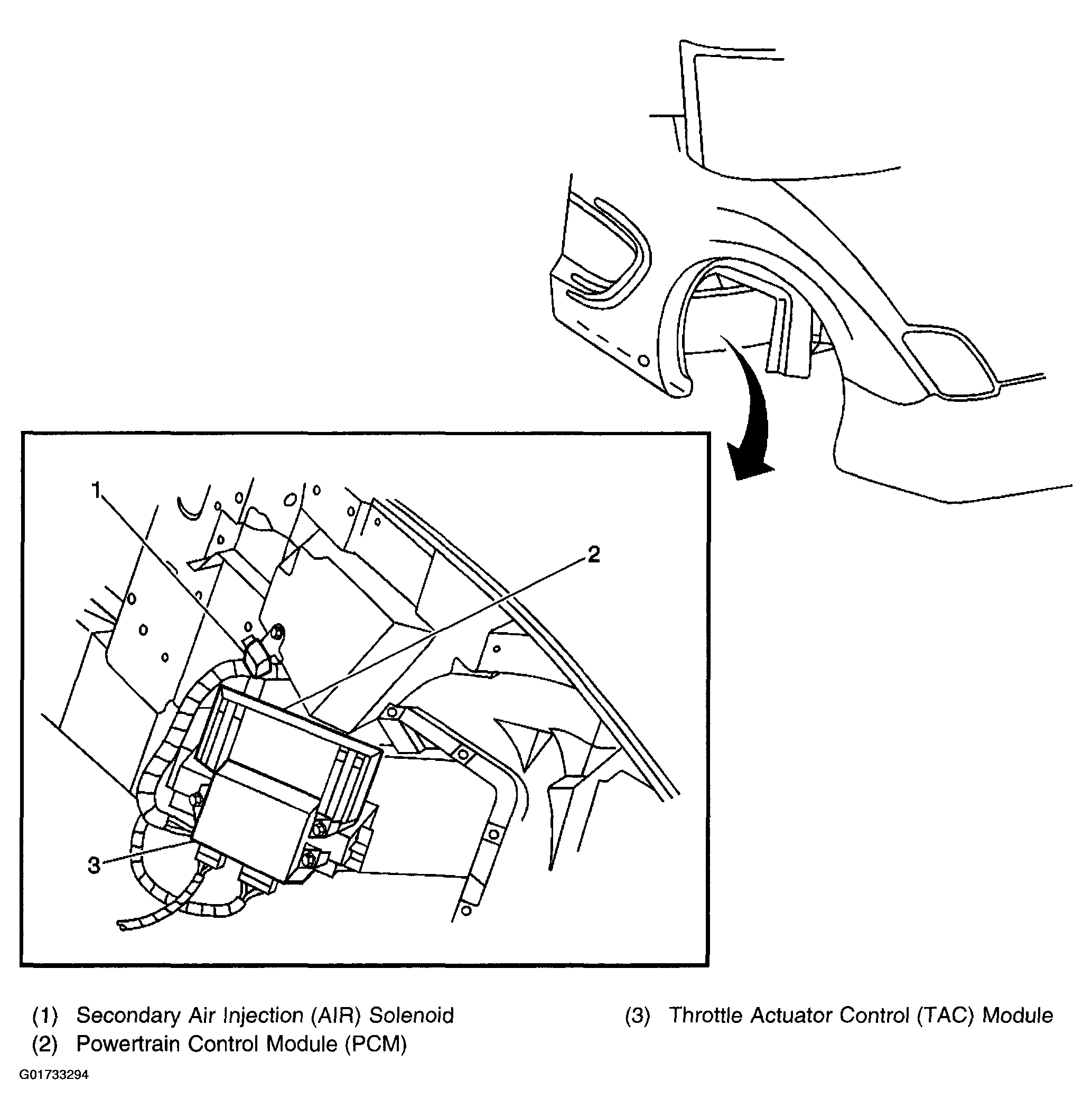

Fig 3: RH Wheel Well

Courtesy of GENERAL MOTORS CORP.
