Cruise Control Connector End Views

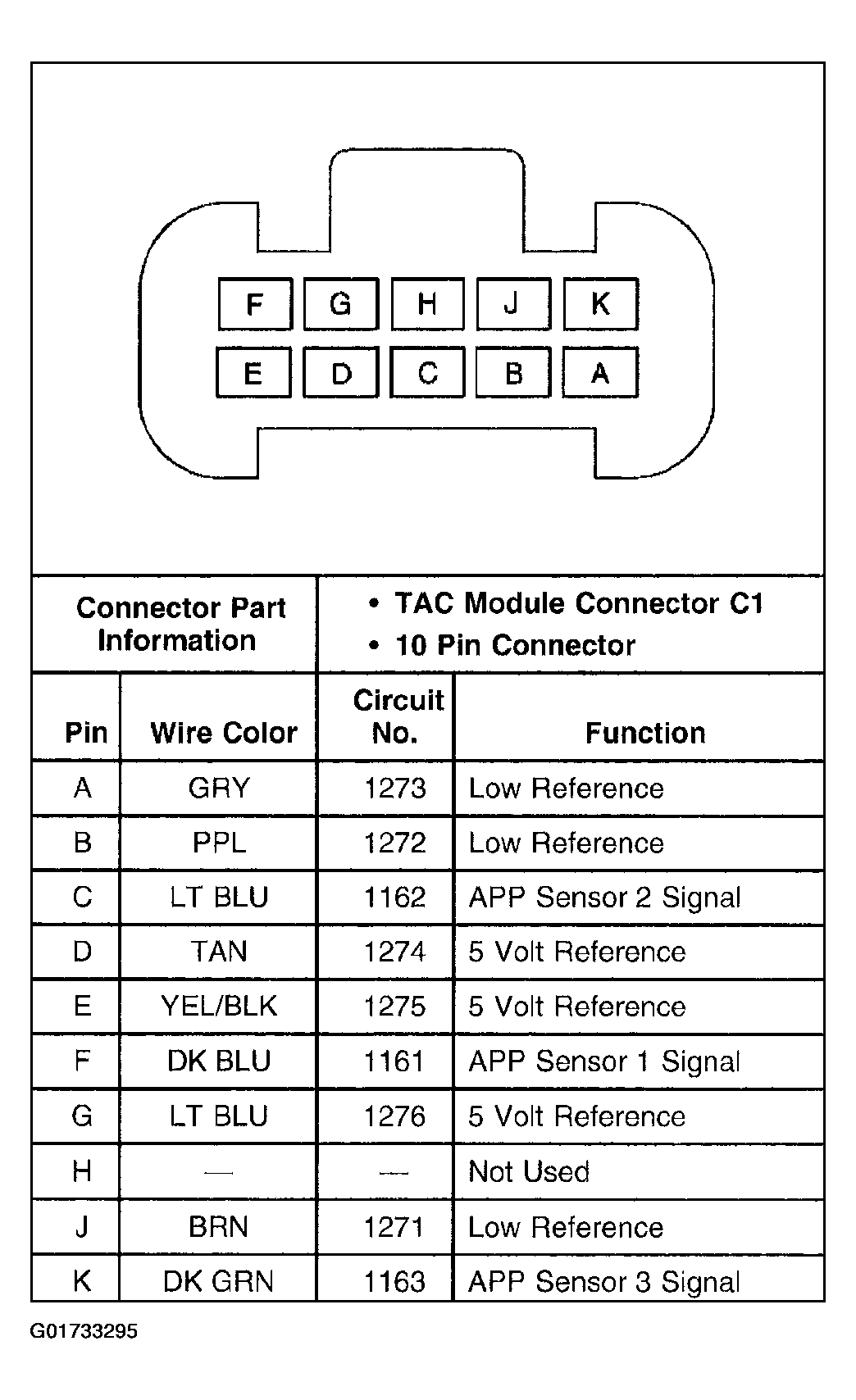

Fig 1: Throttle Actuator Control (TAC) Module C1

Courtesy of GENERAL MOTORS CORP.

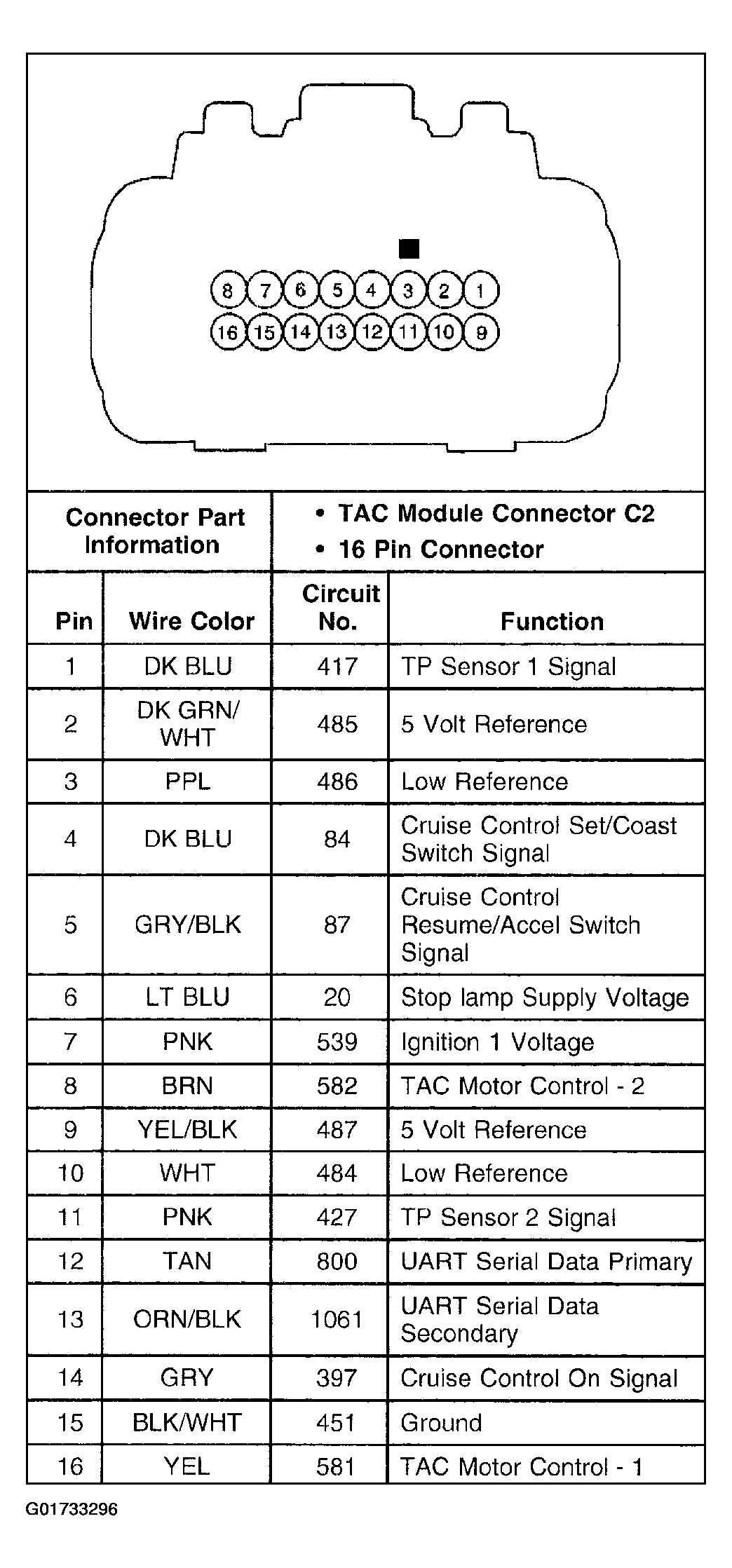

Fig 2: Throttle Actuator Control (TAC) Module C2

Courtesy of GENERAL MOTORS CORP.

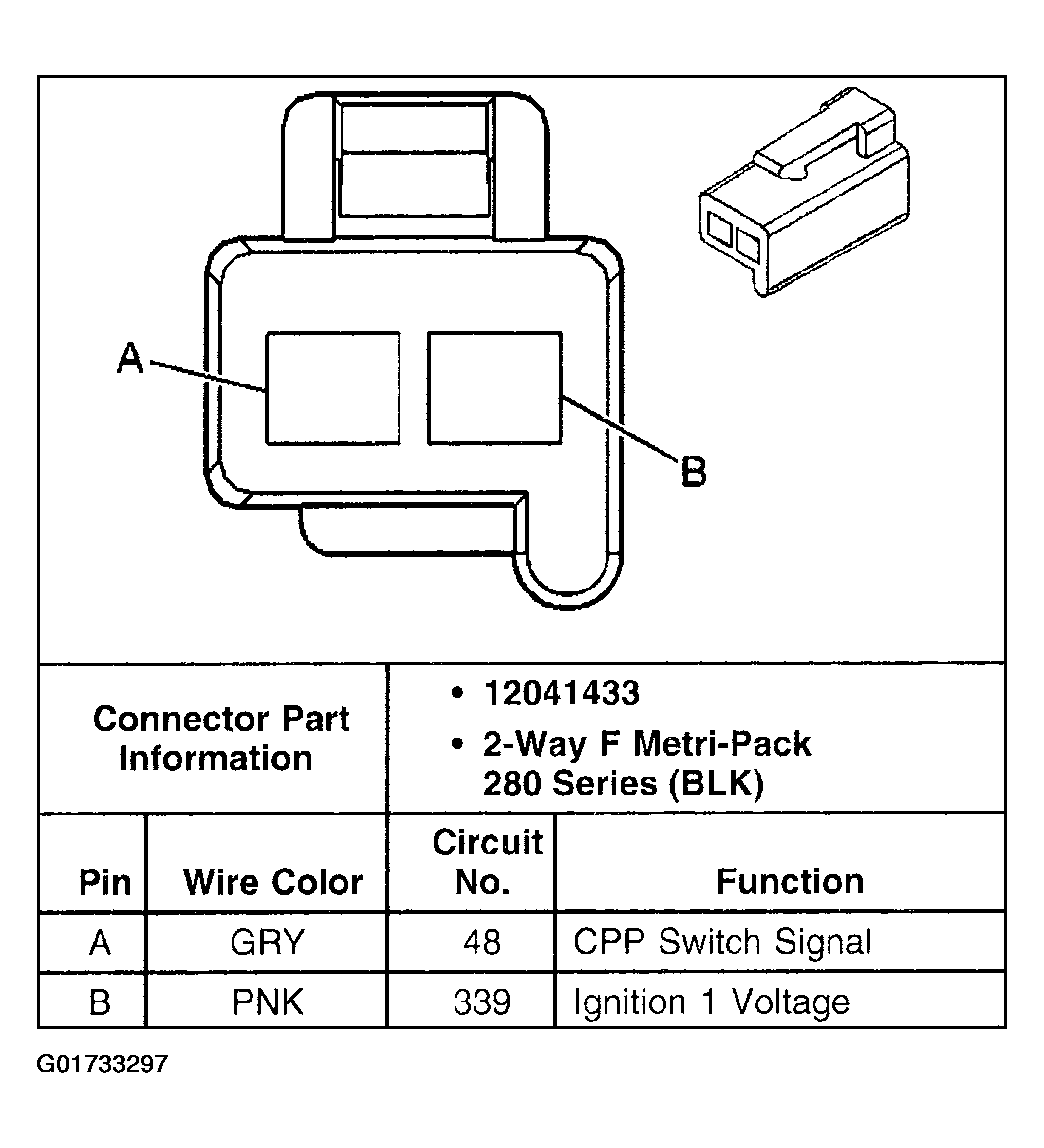

Fig 3: Clutch Pedal Position (CPP) Switch

Courtesy of GENERAL MOTORS CORP.
