Section 2 (Automatic Transmission Servicing): Identification: Transmission

WARNING: This page is about a different variant/trim than selected.
NOTE: For transmission identification, see Fig 1 .

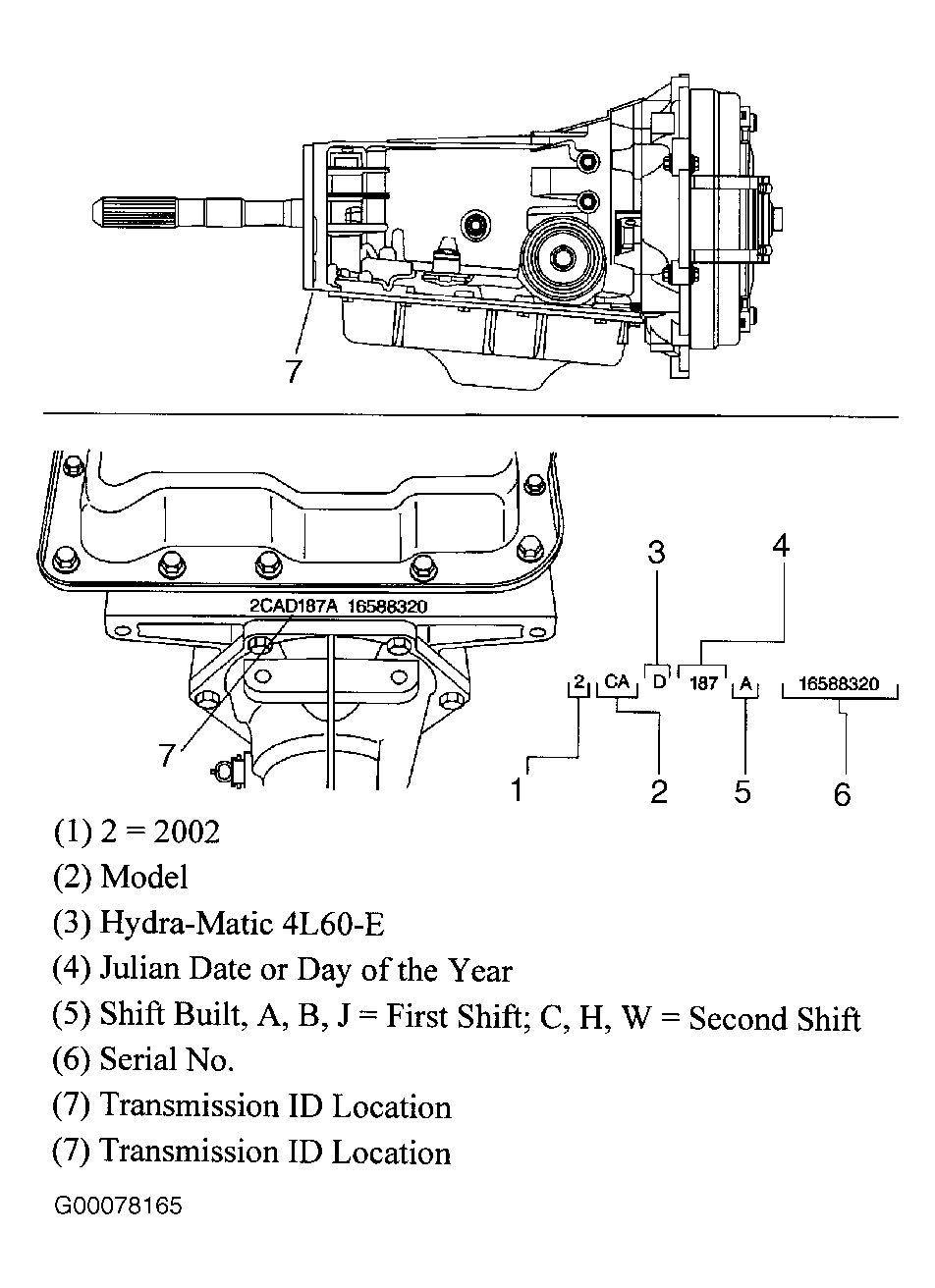

Fig 1: Identifying Transmission Identification Information
G00078165Courtesy of GENERAL MOTORS CORP.
