Engine Block - Bottom View

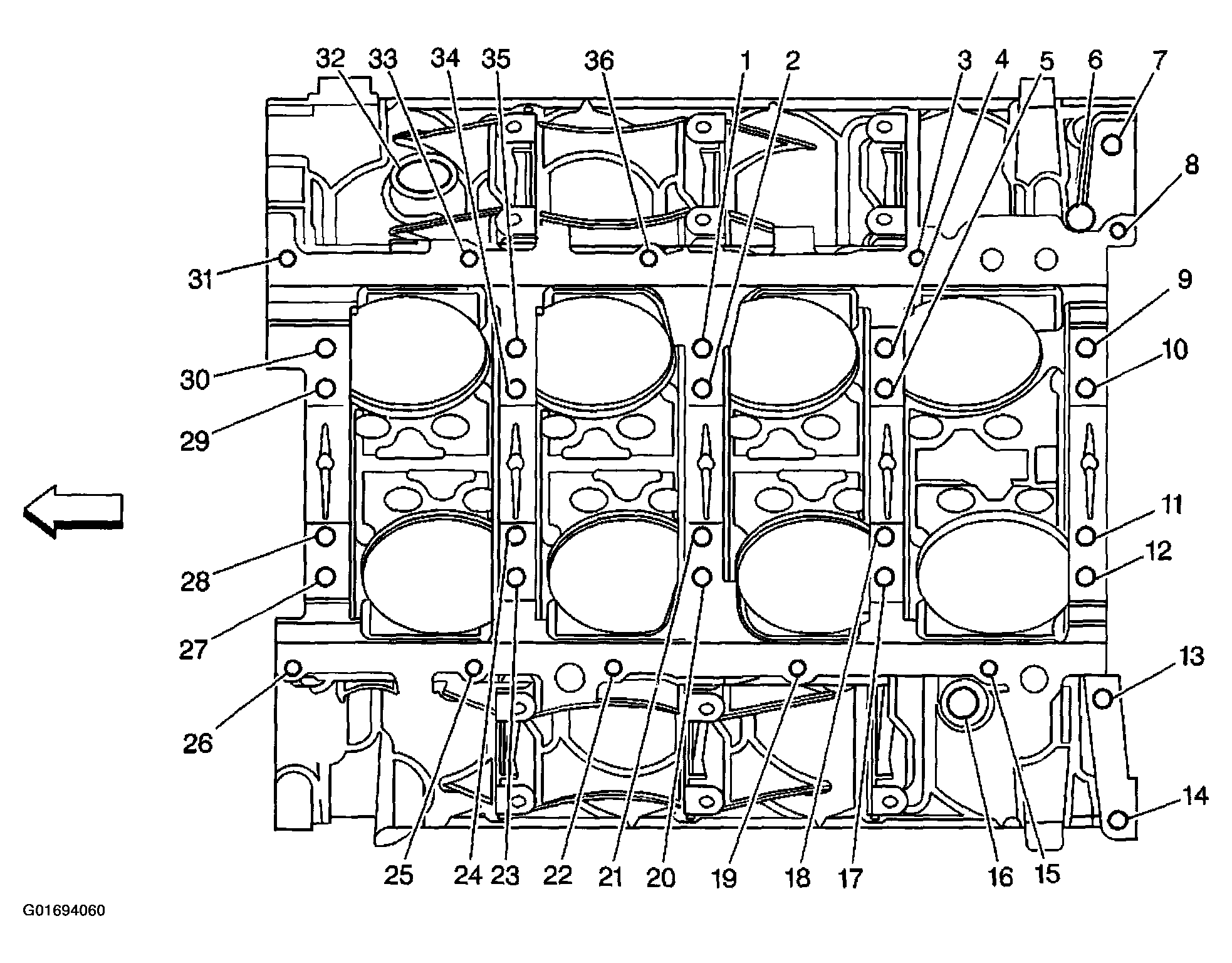

Fig 1: Engine Block - Bottom View
G01694060Courtesy of GENERAL MOTORS CORP.

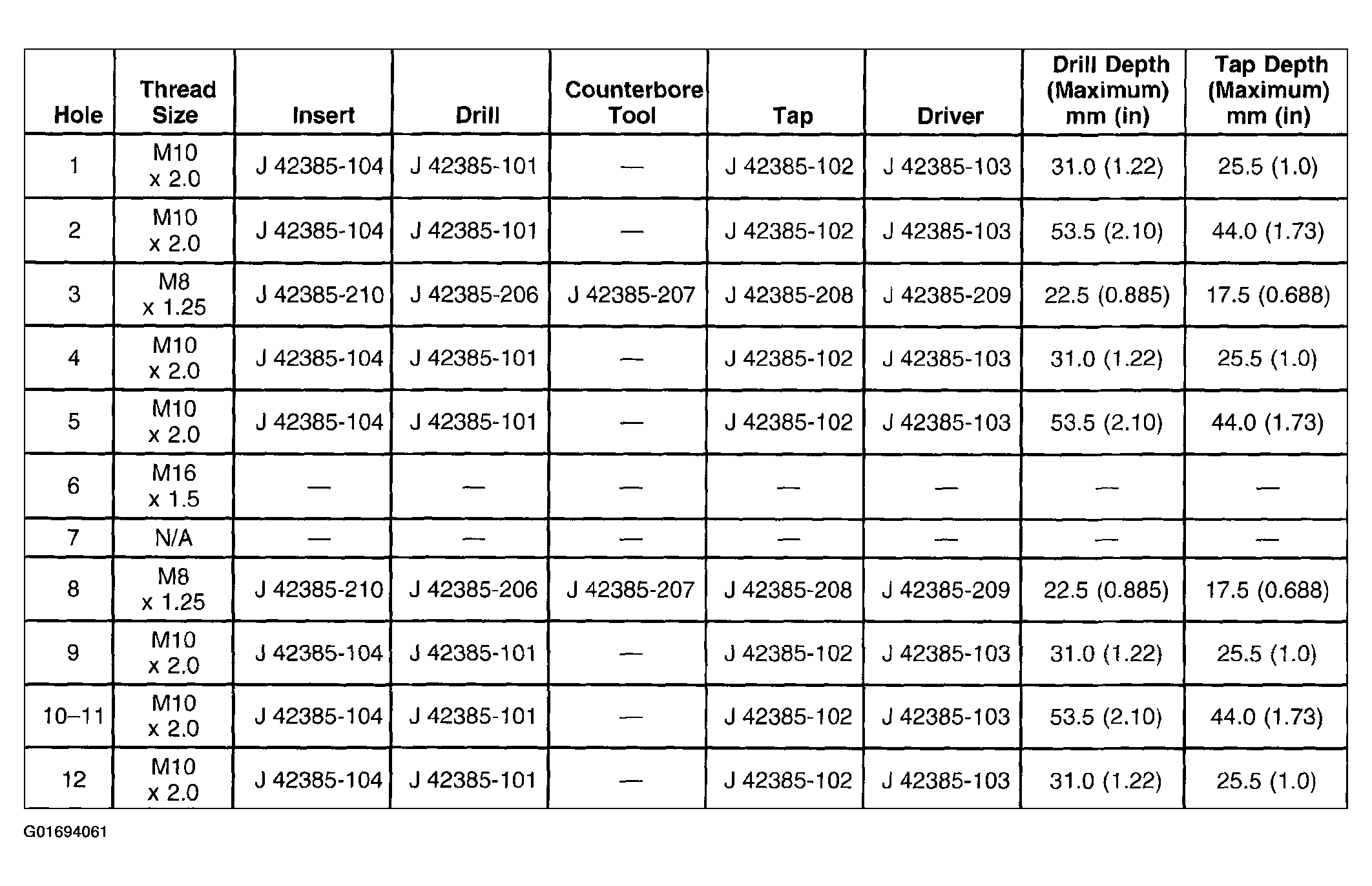

Fig 2: Engine Block Thread Specifications (1 Of 2) - Bottom View
G01694061Courtesy of GENERAL MOTORS CORP.

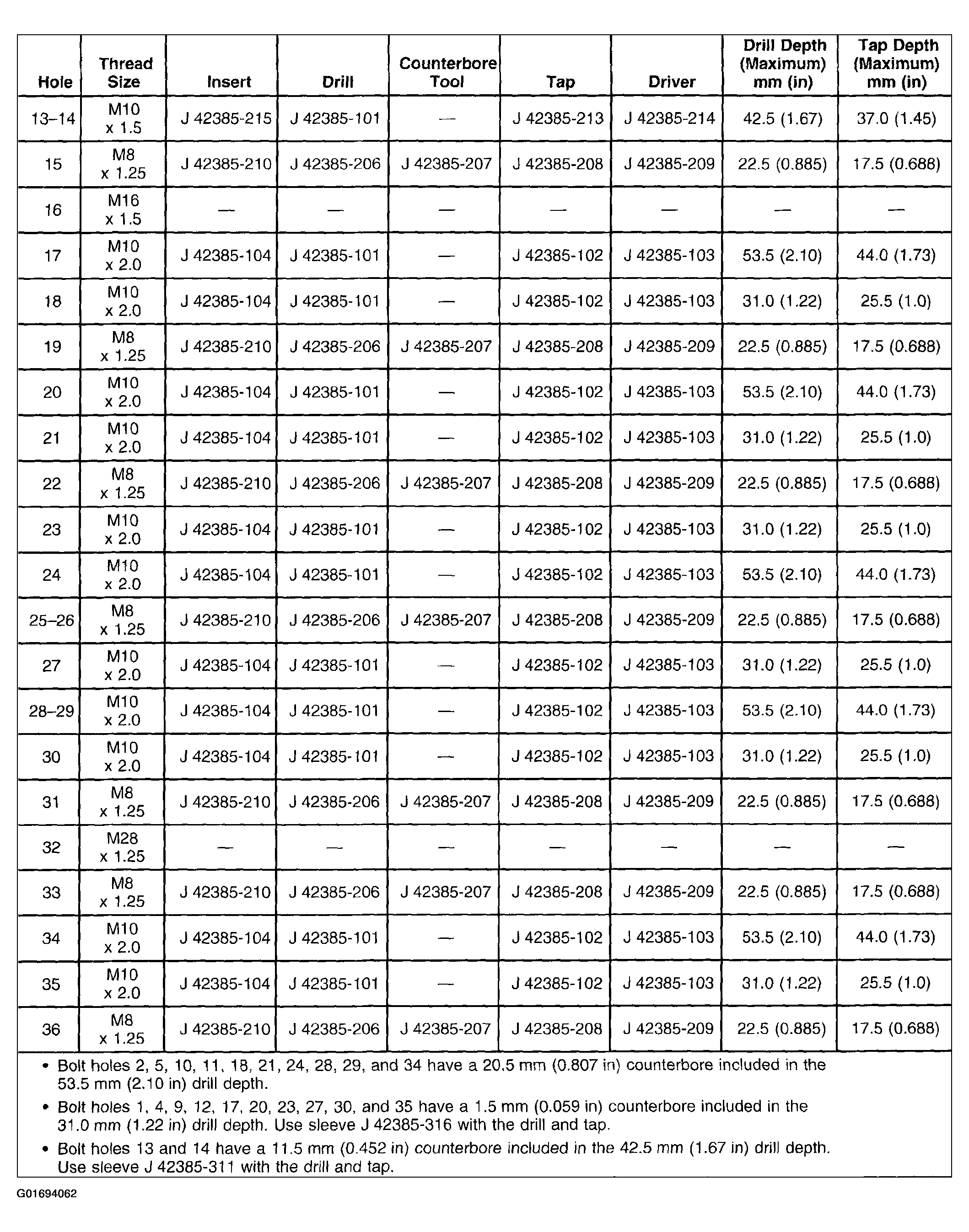

Fig 3: Engine Block Thread Specifications (2 Of 2) - Bottom View
G01694062Courtesy of GENERAL MOTORS CORP.
