Engine Block - Front View

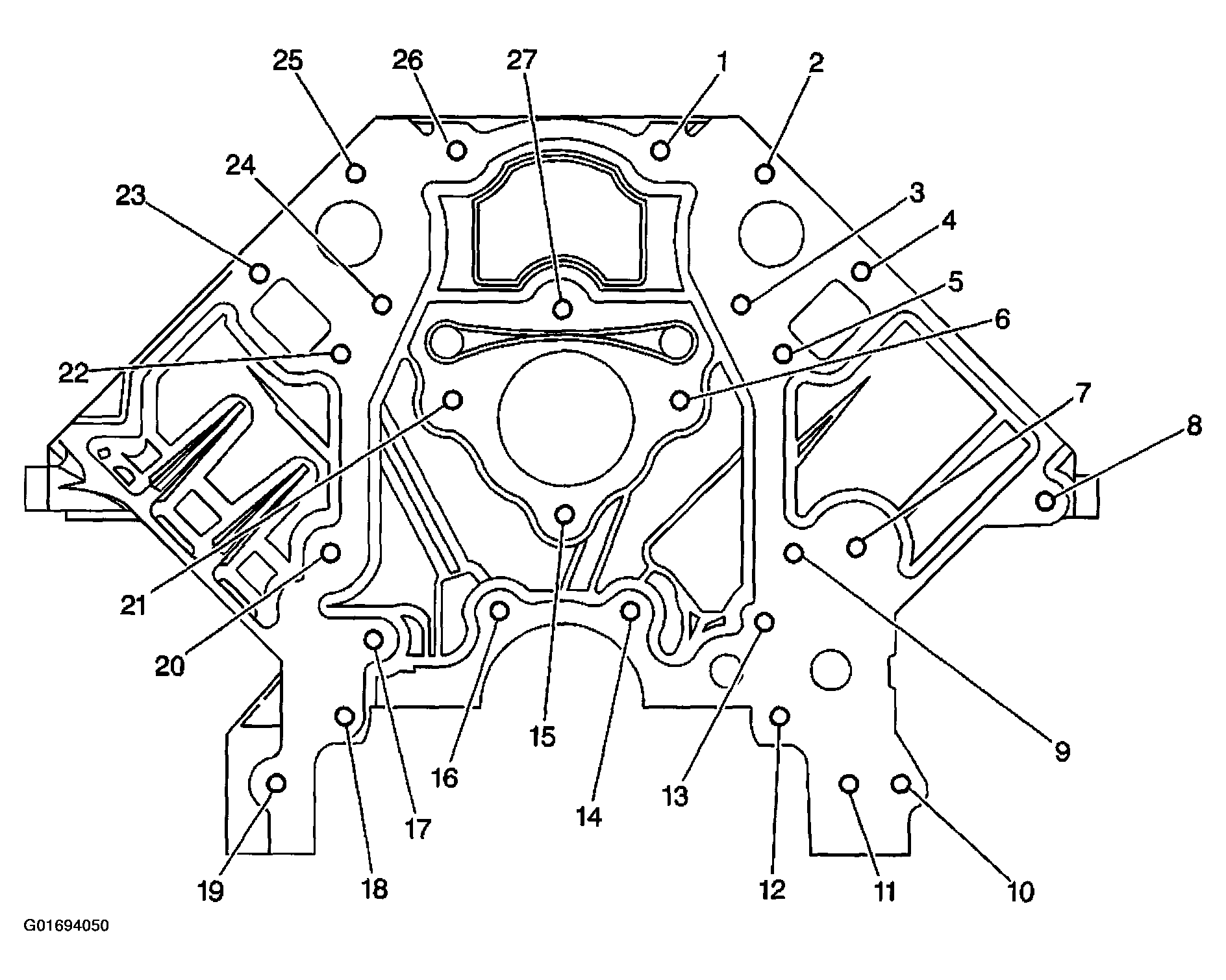

Fig 1: Engine Block - Front View
G01694050Courtesy of GENERAL MOTORS CORP.

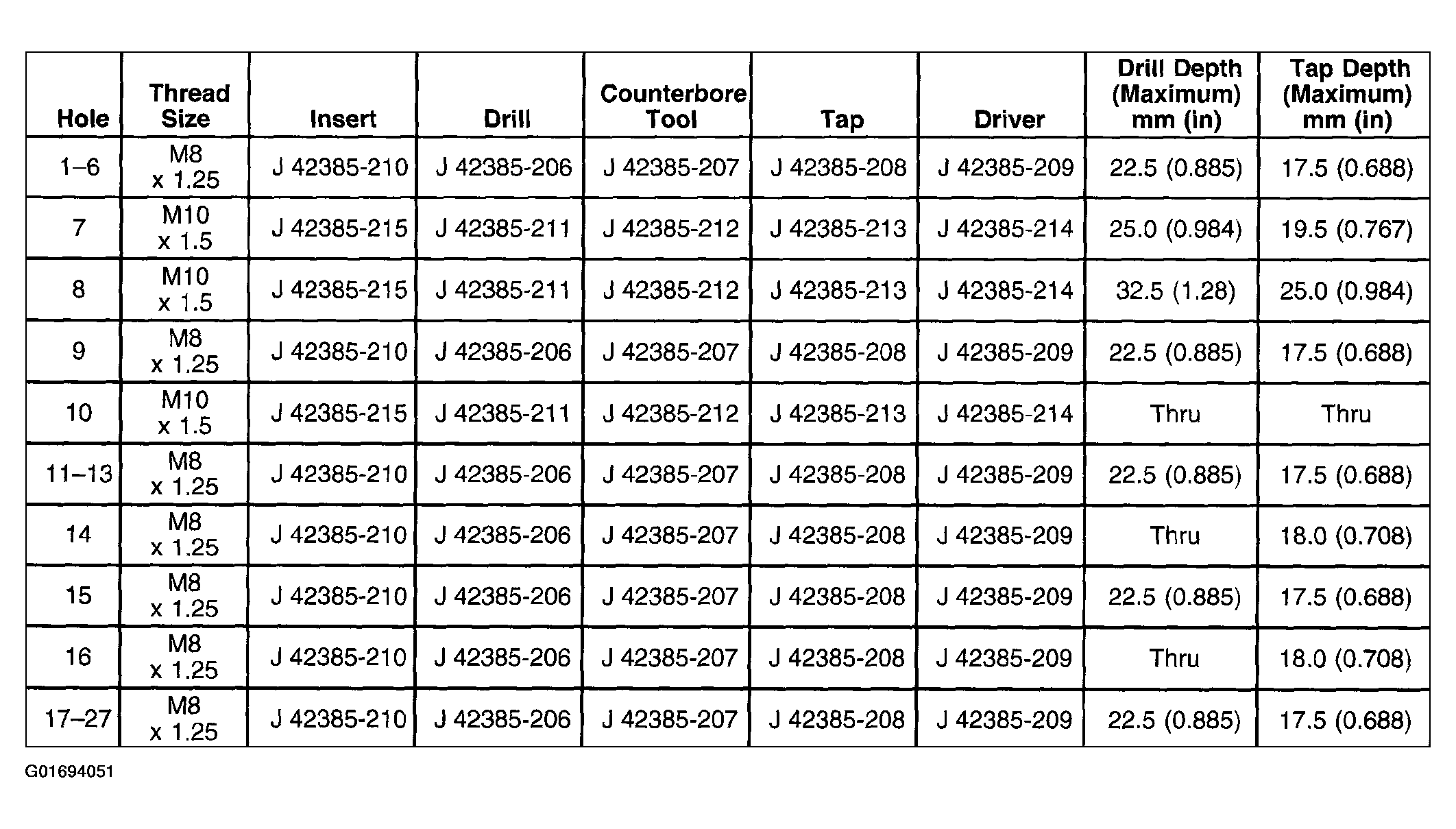

Fig 2: Engine Block Thread Specifications - Front View
G01694051Courtesy of GENERAL MOTORS CORP.
