Removal Procedure

  1. Turn the ignition switch to the OFF position.
  2. Remove the passenger seat. Refer to POWER SEAT .
  3. Disconnect the lateral accelerometer connector.
  4. Remove the two lateral accelerometer nuts (1).
  5. Remove the lateral accelerometer (2).

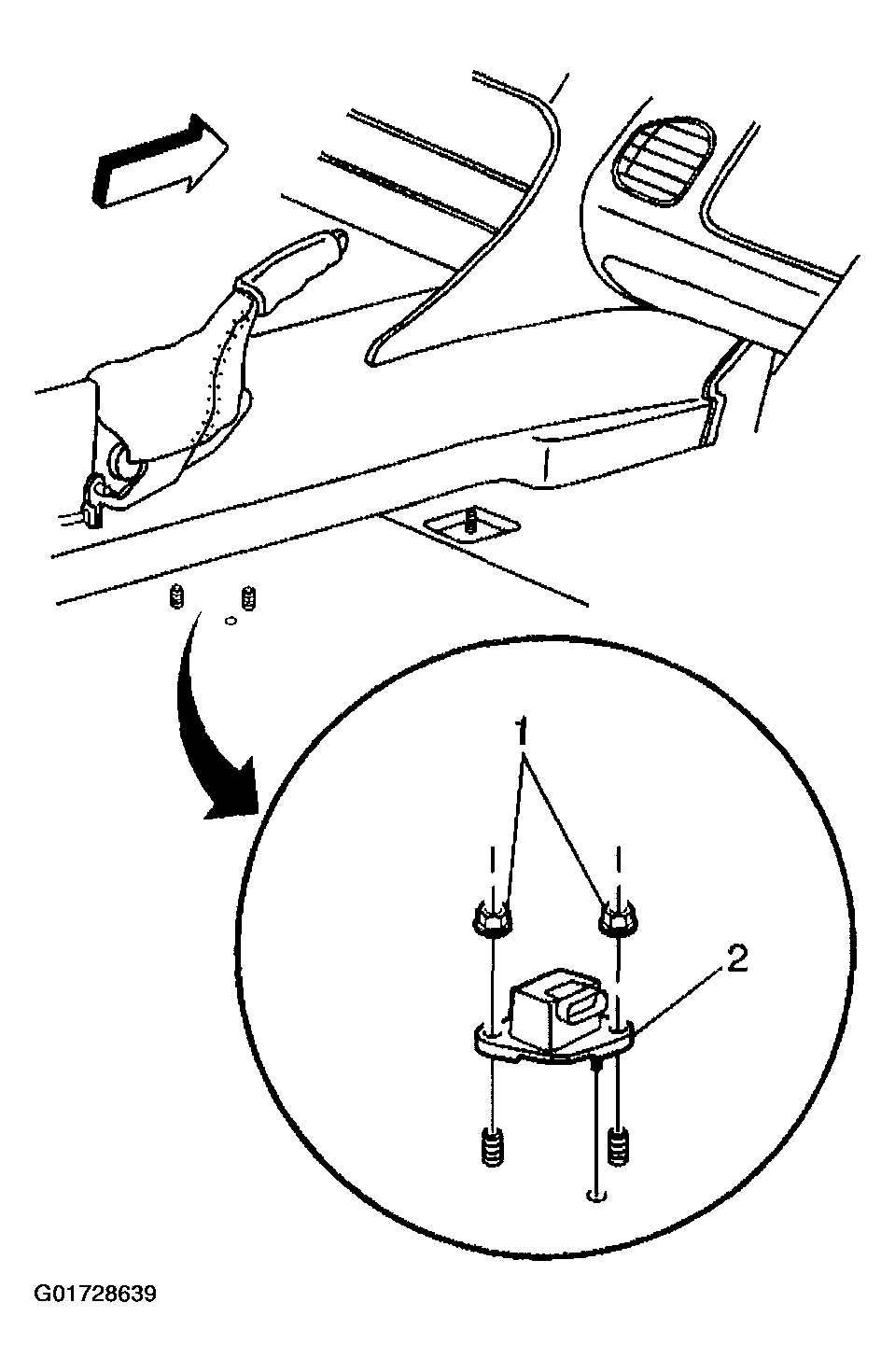

    Fig 1: Removing Lateral Accelerometer Nuts
    G01728639Courtesy of GENERAL MOTORS CORP.
