Engine Electrical Component Views
Engine Electrical Component Views

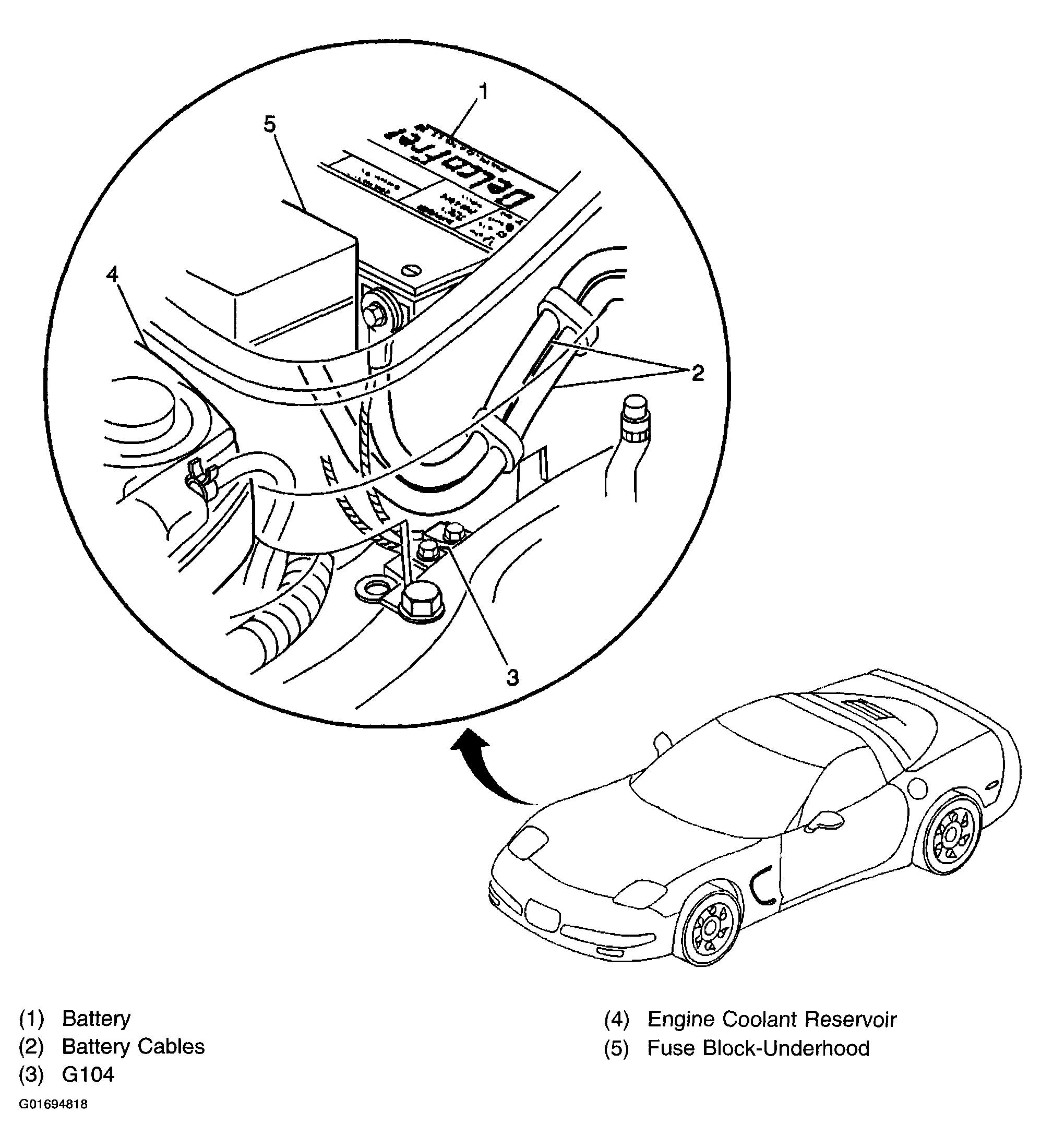

Fig 1: Engine Compartment Under The Battery
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
