Removal Procedure

  1. Remove the ground strap nut and terminal from the stud on the frame.
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

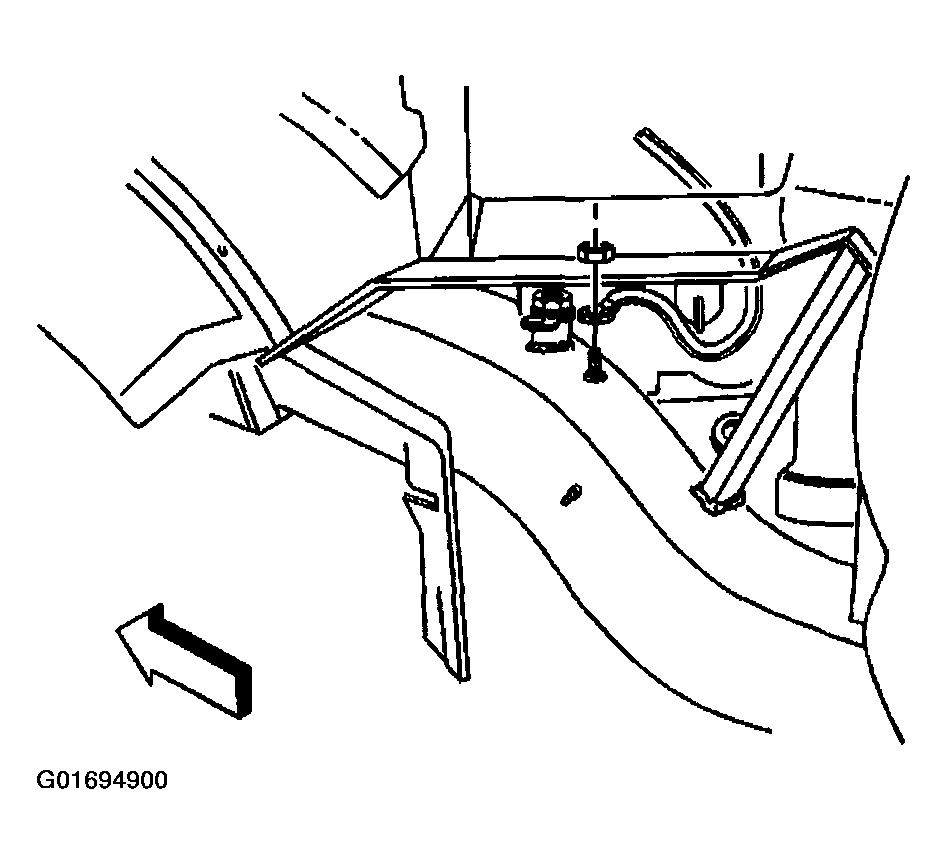

    Fig 1: Removing Ground Strap Nut
    G01694900Courtesy of GENERAL MOTORS CORP.
  3. Remove the ground strap bolt, strap (1) and engine harness ground.
  4. Remove the ground strap.

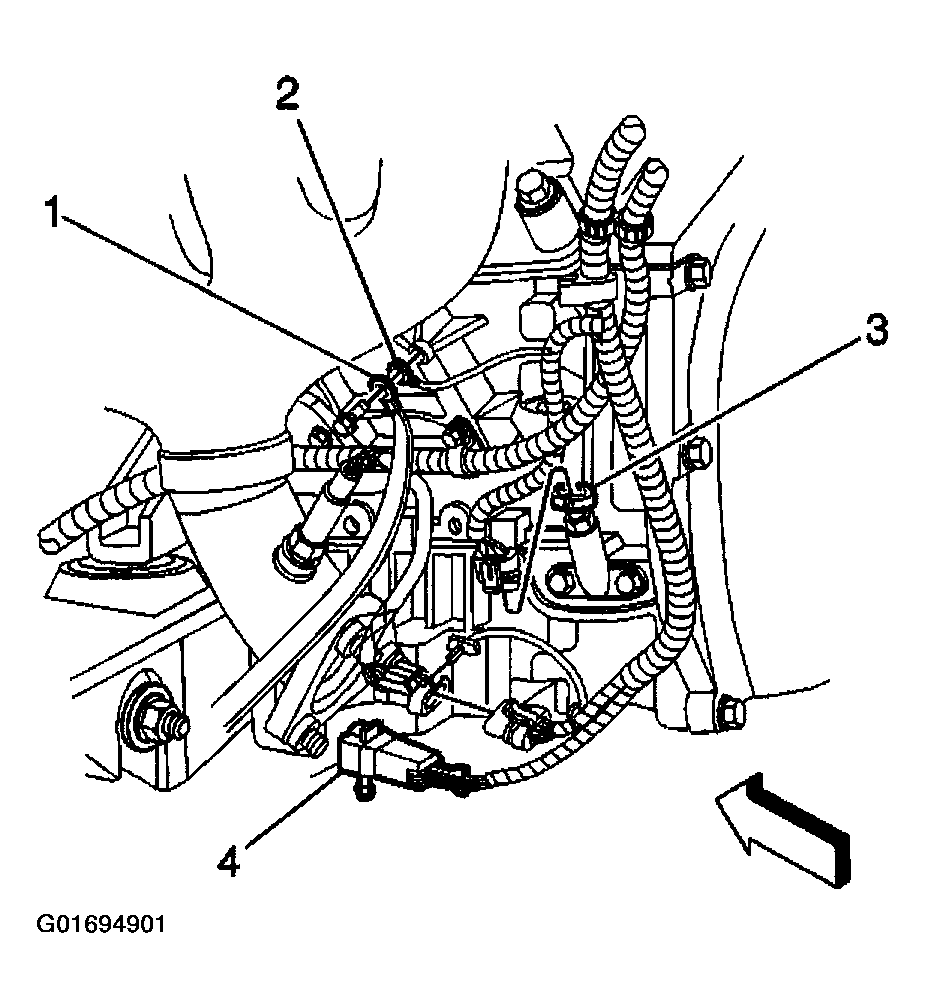

    Fig 2: Removing Ground Strap Bolt
    G01694901Courtesy of GENERAL MOTORS CORP.
