Door Lock Control Module Connector End View
Door Lock Control Module Connector End View

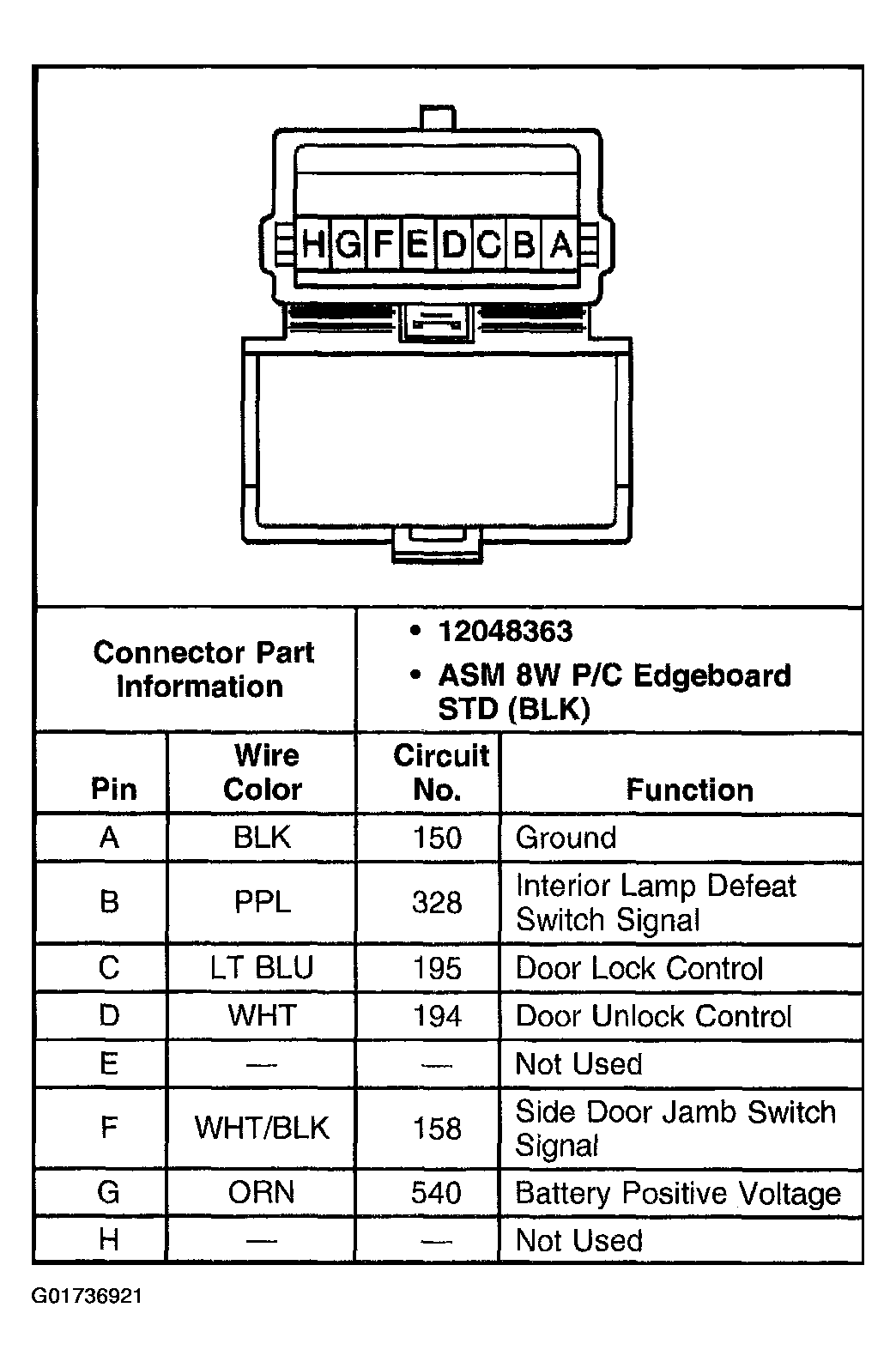

Fig 1: Door Lock Control Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
