Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Application		Location
Diesel Models
Accelerator Pedal Position Module		Mounted To Accelerator Pedal
Cruise Control Switches		On Multifunction Lever
Powertrain Control Module		Above Interior Engine Cover
TCC/Brake Switch		On Brake Pedal Bracket
8.1L Models
Cruise Control Switches		On Multifunction Lever
Powertrain Control Module		Above Interior Engine Cover
Throttle Actuator Control Module		Under Cowl, Near Windshield Wiper Motor
TCC/Brake Switch		On Brake Pedal Bracket
Except Diesel & 8.1L Models
Cruise Control Switches		On Multifunction Lever
Cruise Control Module		Under Cowl, Near Windshield Wiper Motor
Powertrain Control Module		Left Side Of Engine Compartment, Next To Relay Center
TCC/Brake Switch		On Brake Pedal Bracket

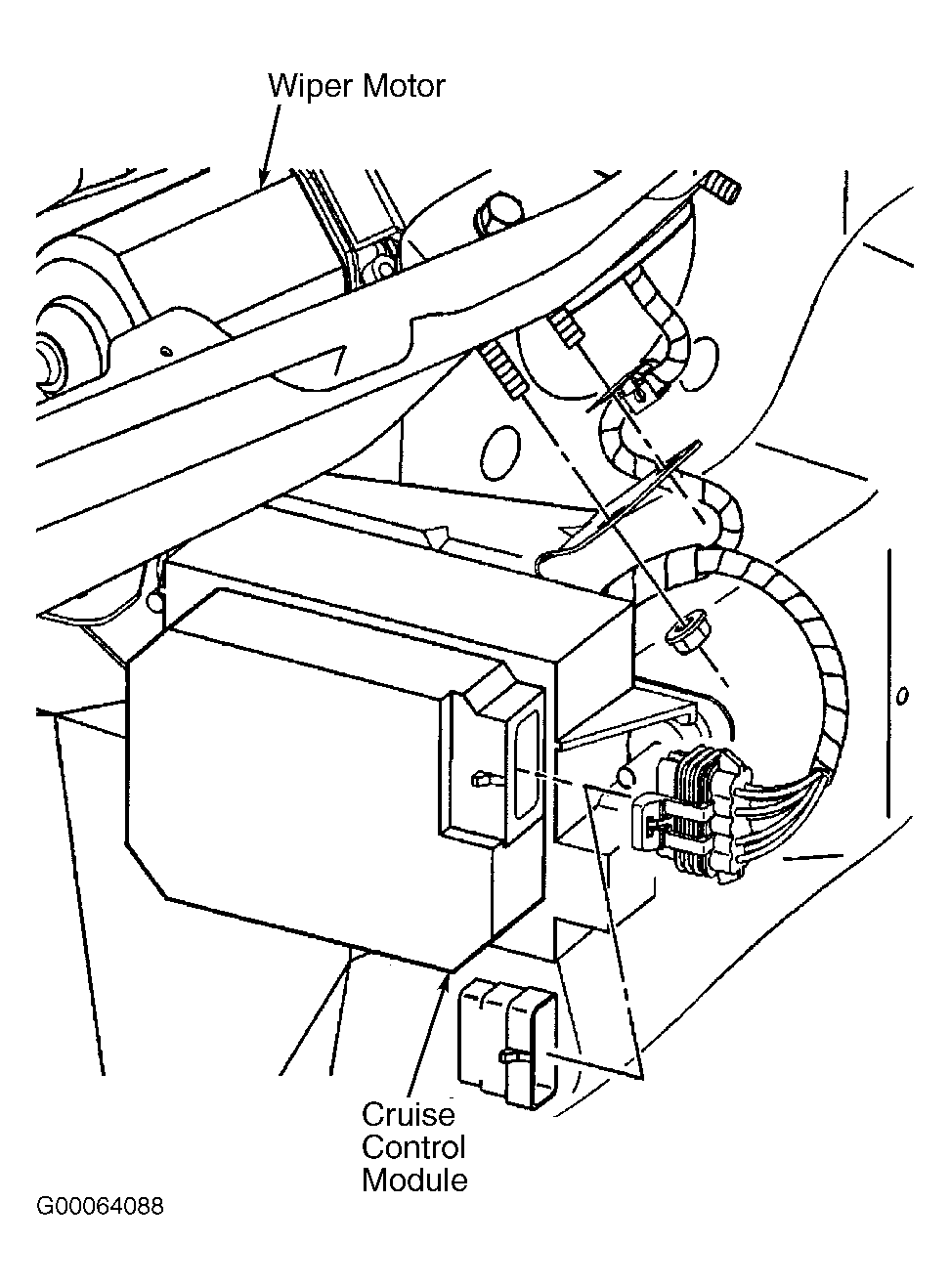

Fig 1: Identifying Cruise Control Module Location

Courtesy of GENERAL MOTORS CORP.

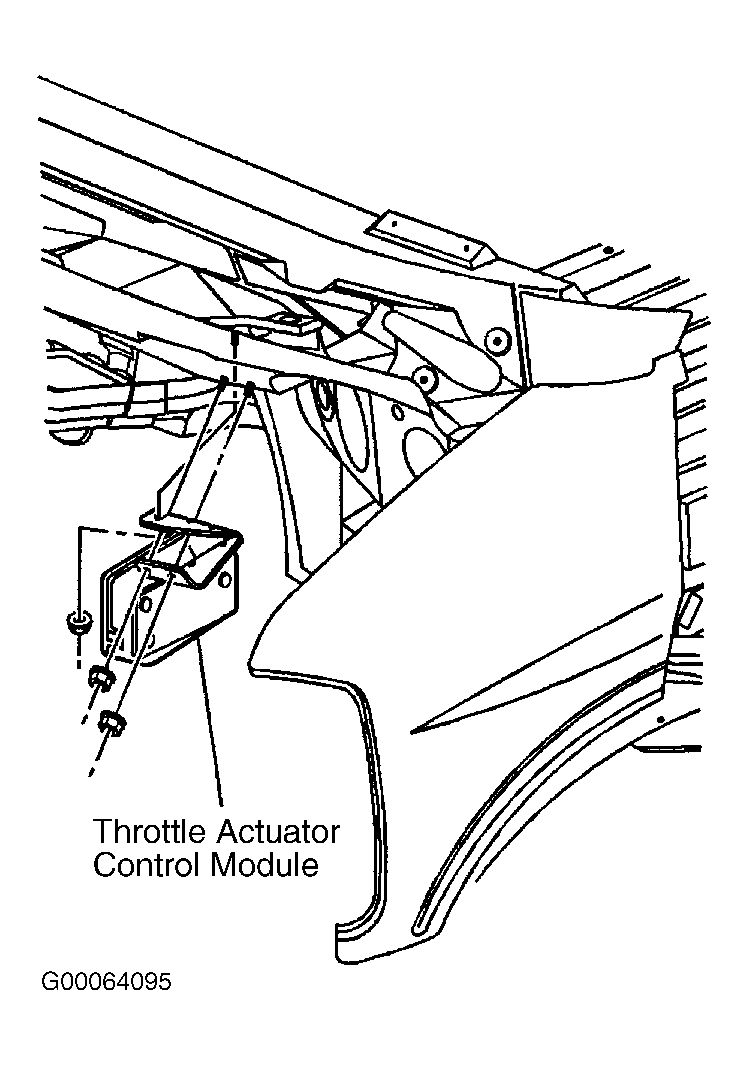

Fig 2: Identifying Throttle Actuator Control Module Location

Courtesy of GENERAL MOTORS CORP.

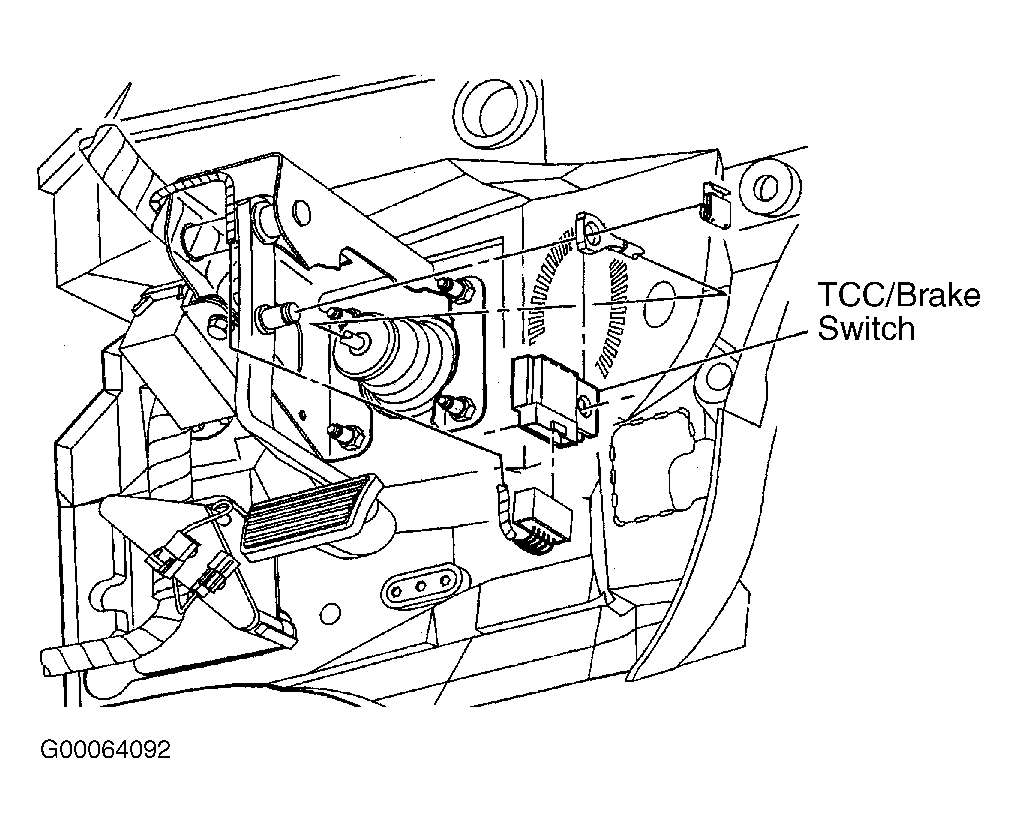

Fig 3: Identifying TCC/Brake Switch Location

Courtesy of GENERAL MOTORS CORP.
