Fuel Sender Buffer Module Connector End View - Diesel

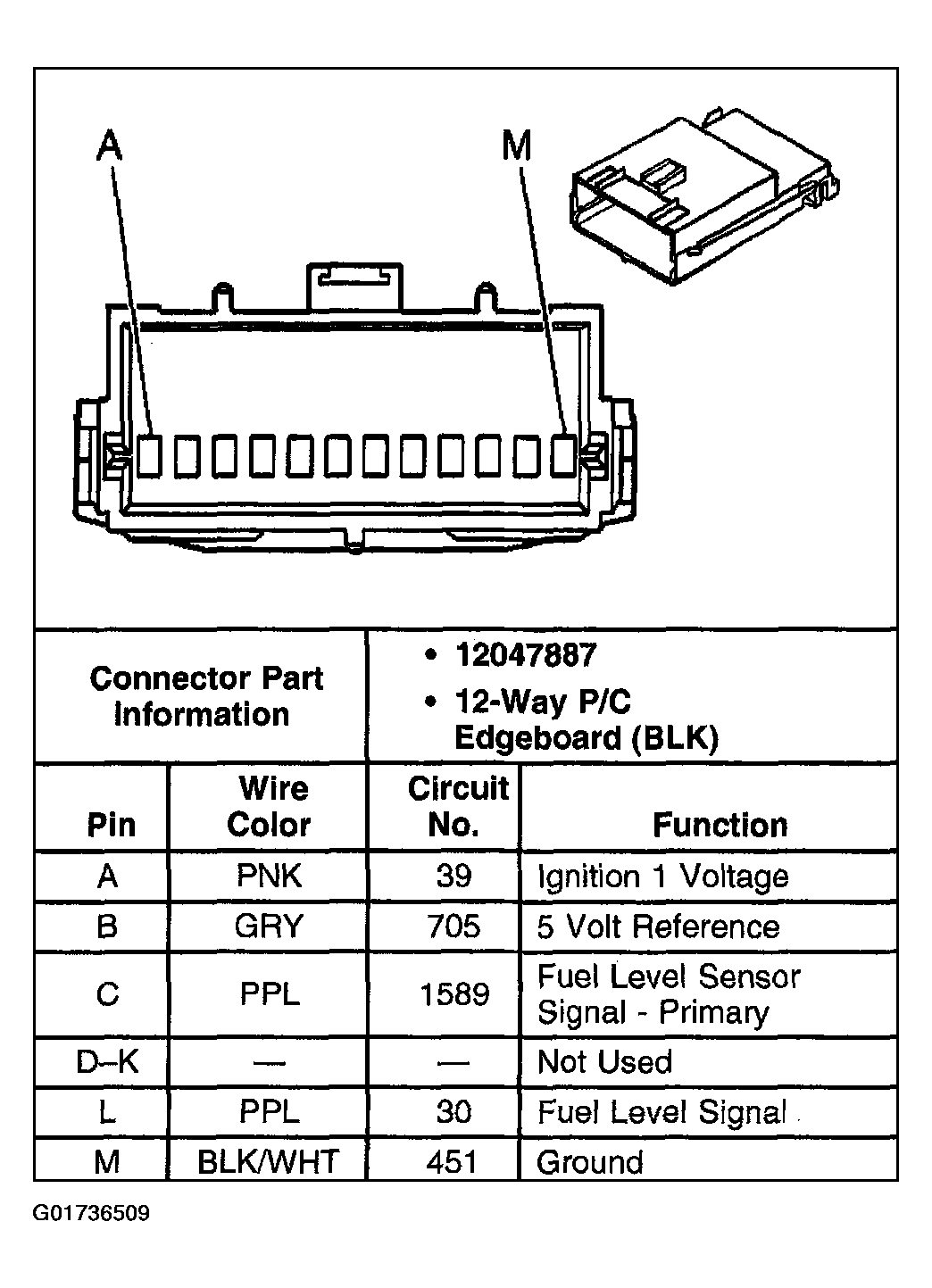

Fig 1: Fuel Sender Buffer Module - Diesel
G01736509Courtesy of GENERAL MOTORS CORP.
