Multifunction Alarm Module Connector End View - C1

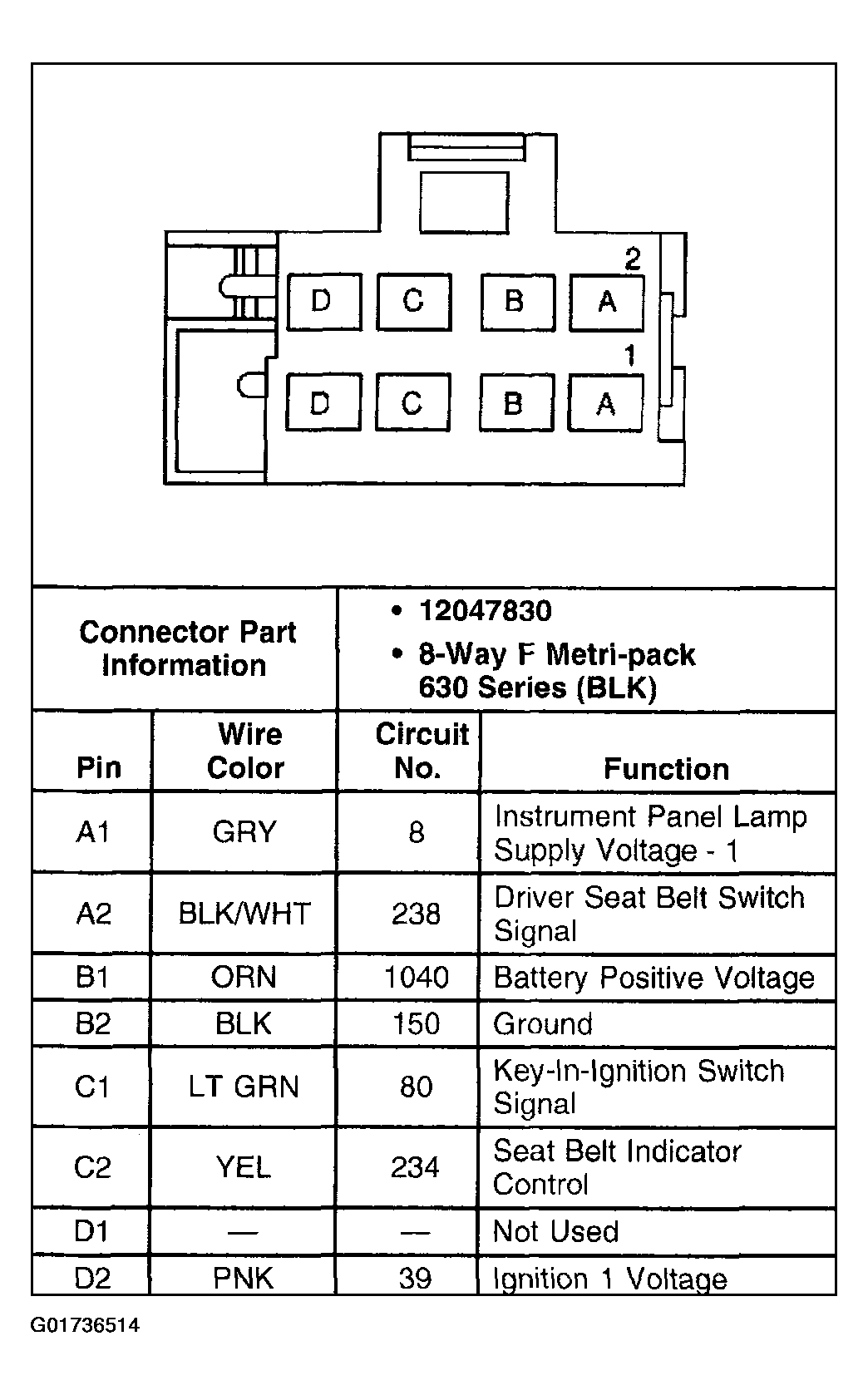

Fig 1: Multifunction Alarm Module - C1
G01736514Courtesy of GENERAL MOTORS CORP.
