Multifunction Alarm Module Connector End View - C2 w/UD4

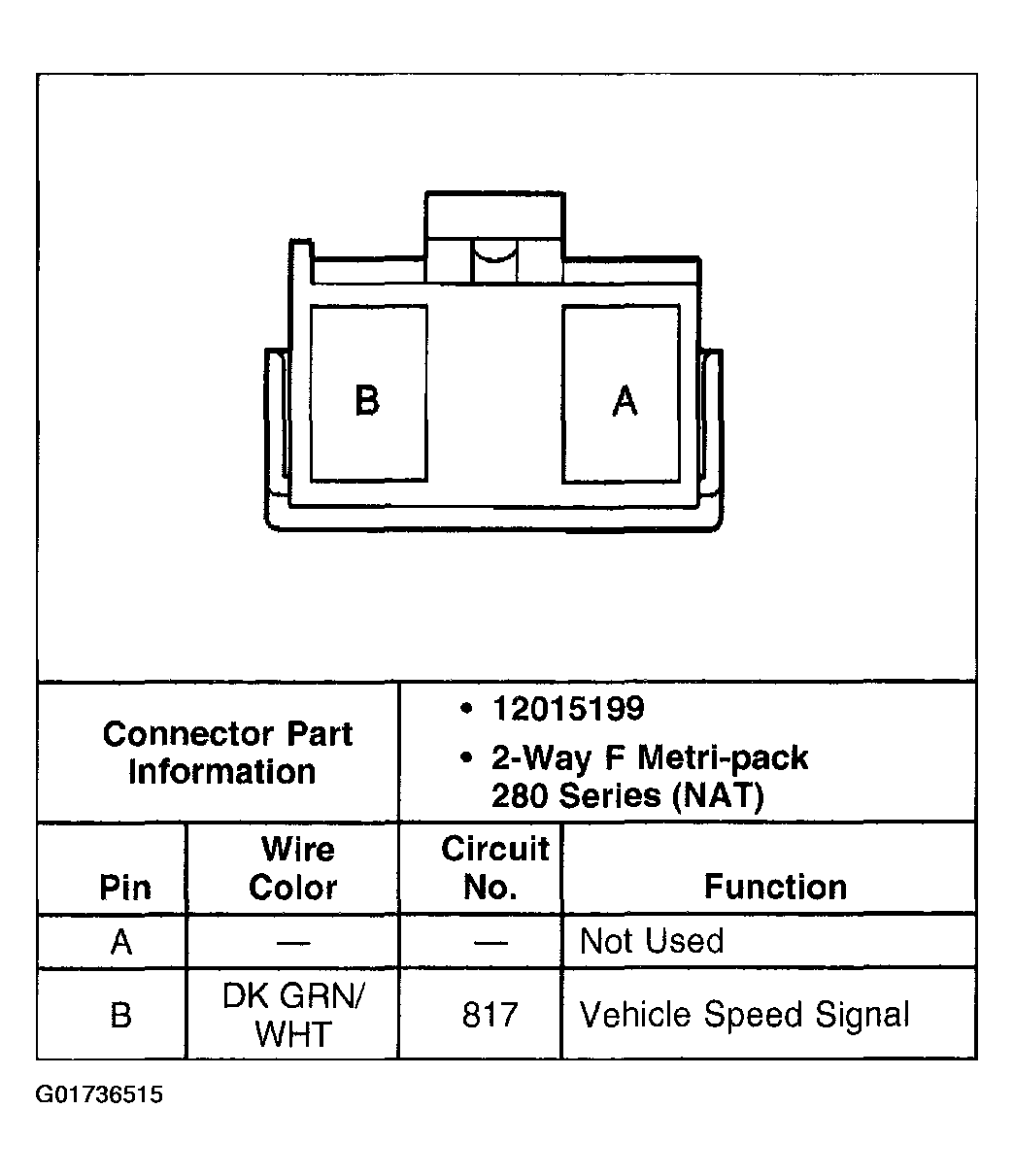

Fig 1: Multifunction Alarm Module - C2 w/UD4
G01736515Courtesy of GENERAL MOTORS CORP.
