Multifunction Switch Connector End View
Multifunction Switch Connector End View

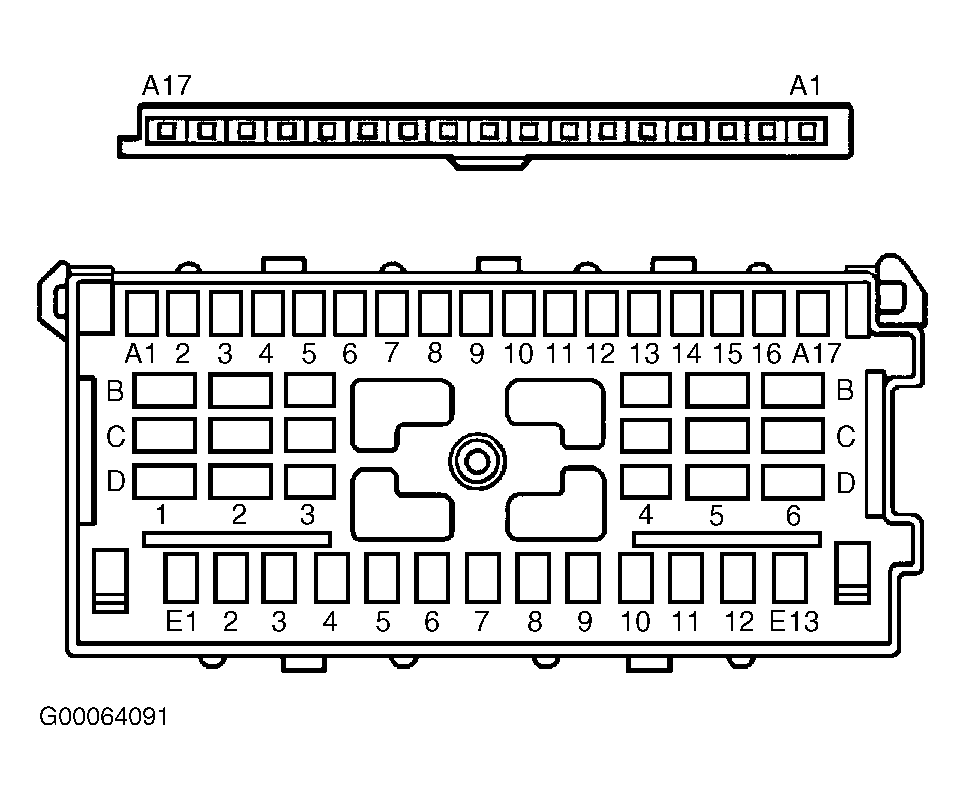

Fig 1: Multifunction Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
