VSS Buffer Module Connector End View (Harness Side)

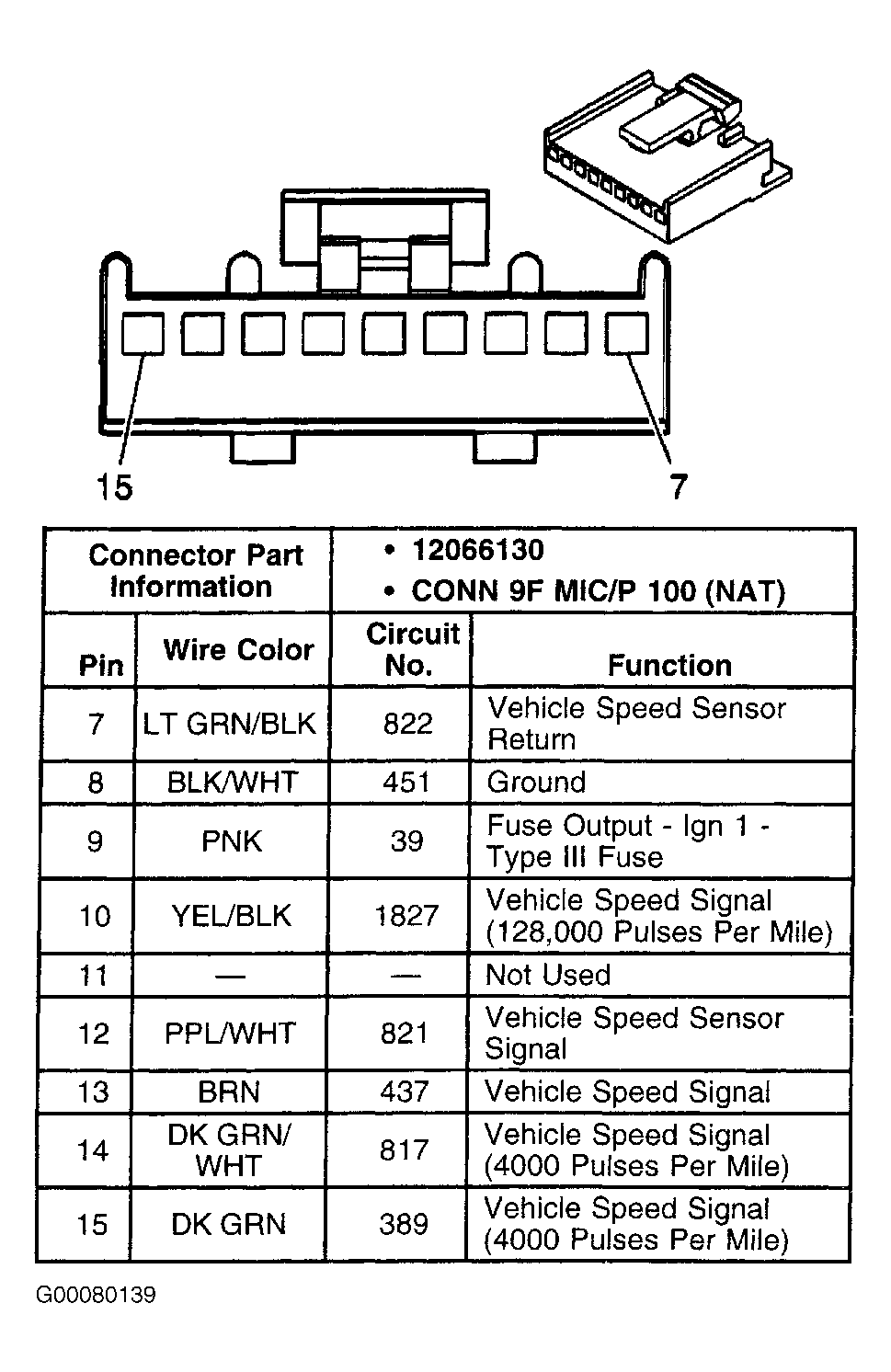

Fig 1: VSS Buffer Module (Harness Side)
G00080139Courtesy of GENERAL MOTORS CORP.
