Component Locations

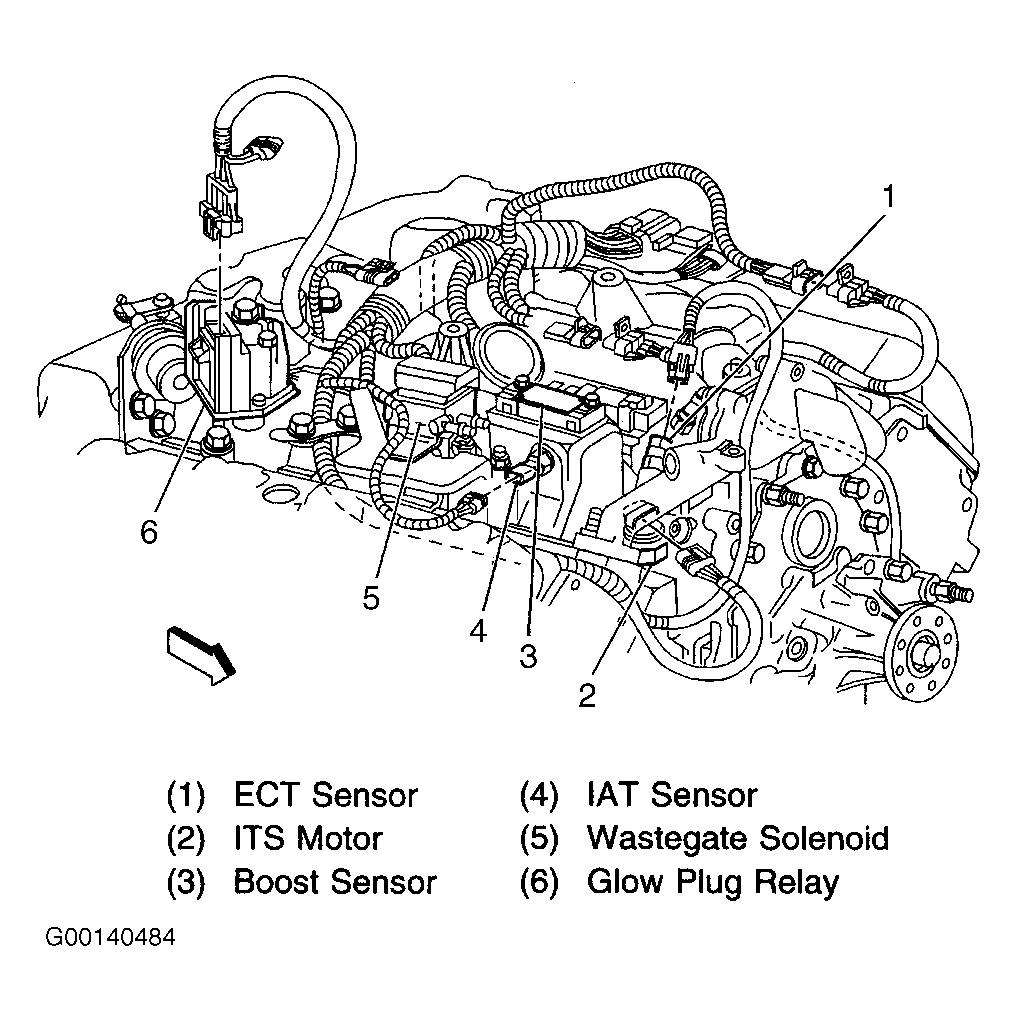

Fig 1: Locating Boost, ECT & IAT Sensors, ITS Motor, Glow Plug Relay & Wastegate Solenoid
G00140484Courtesy of GENERAL MOTORS CORP.

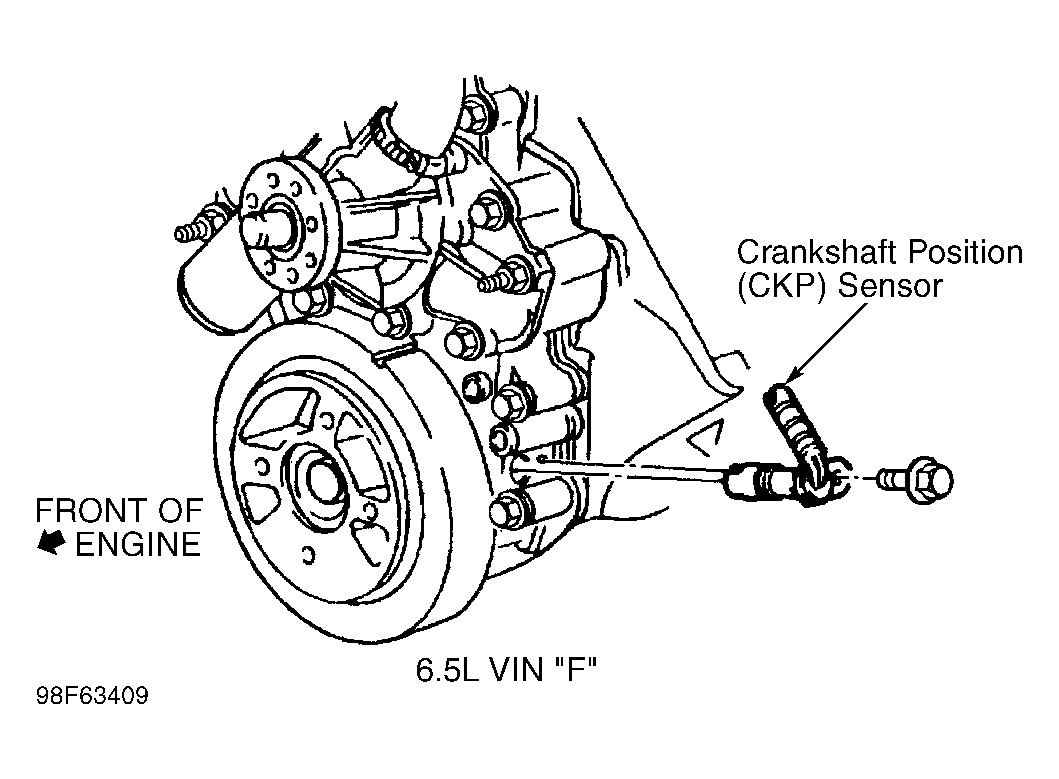

Fig 2: Locating CKP Sensor
G98F63409Courtesy of GENERAL MOTORS CORP.

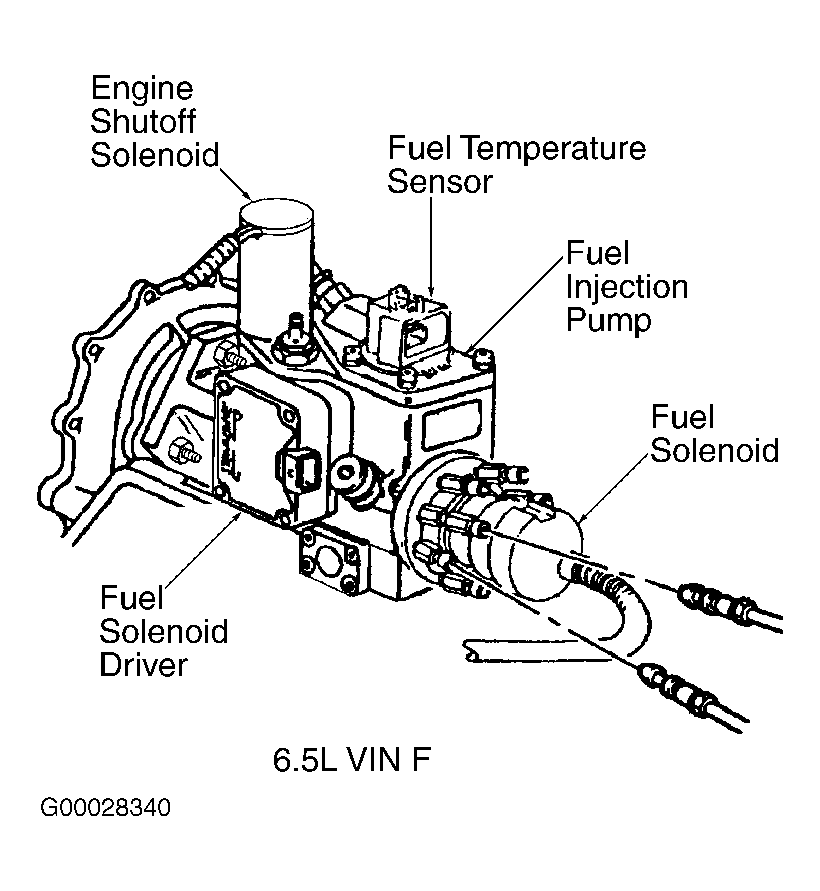

Fig 3: Locating Engine Shut-Off Solenoid & Fuel Temperature Sensor
G00028340Courtesy of GENERAL MOTORS CORP.
