Connector Identification

Fig 1: Identifying Stoplamp Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

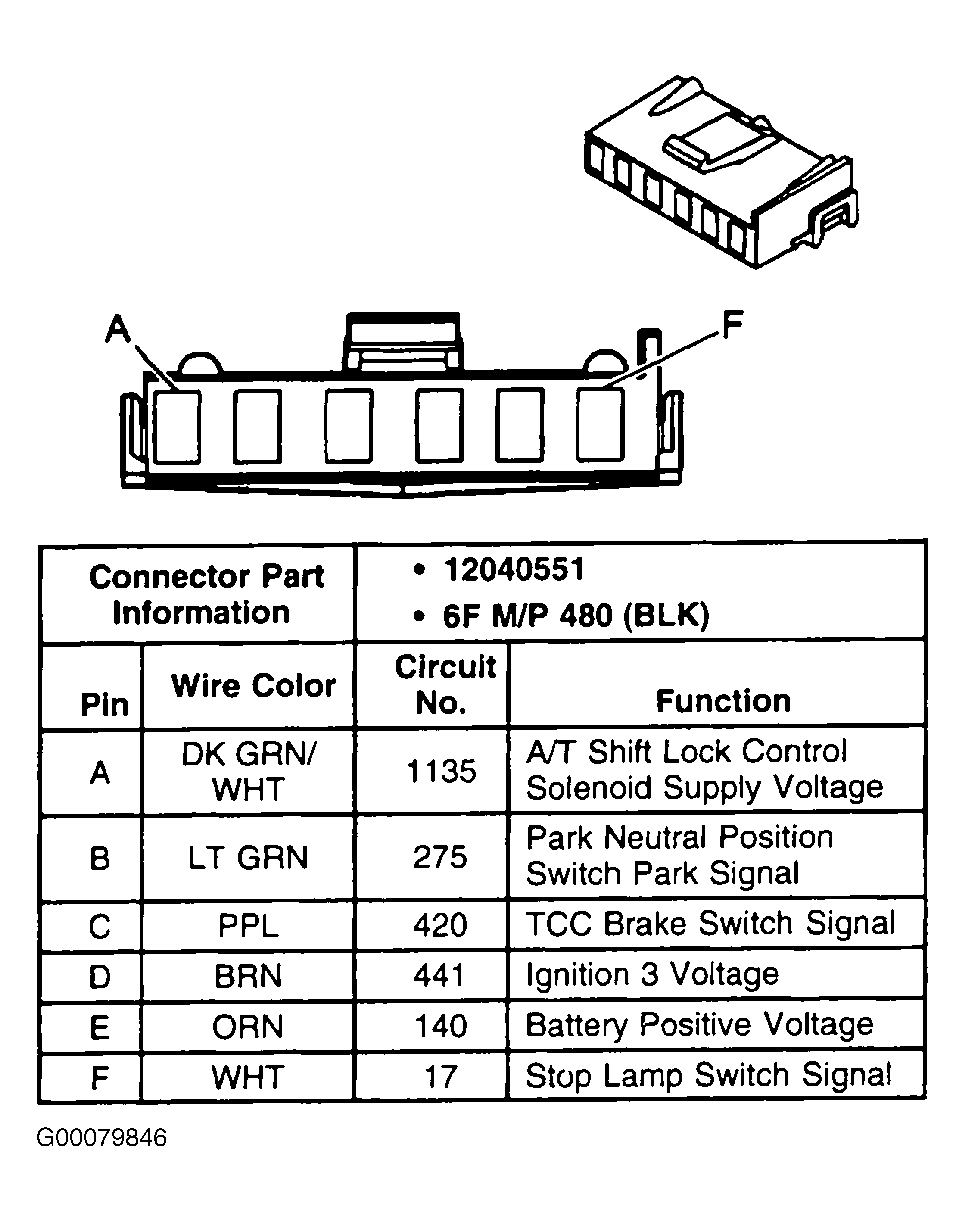

Fig 2: Identifying PNP Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

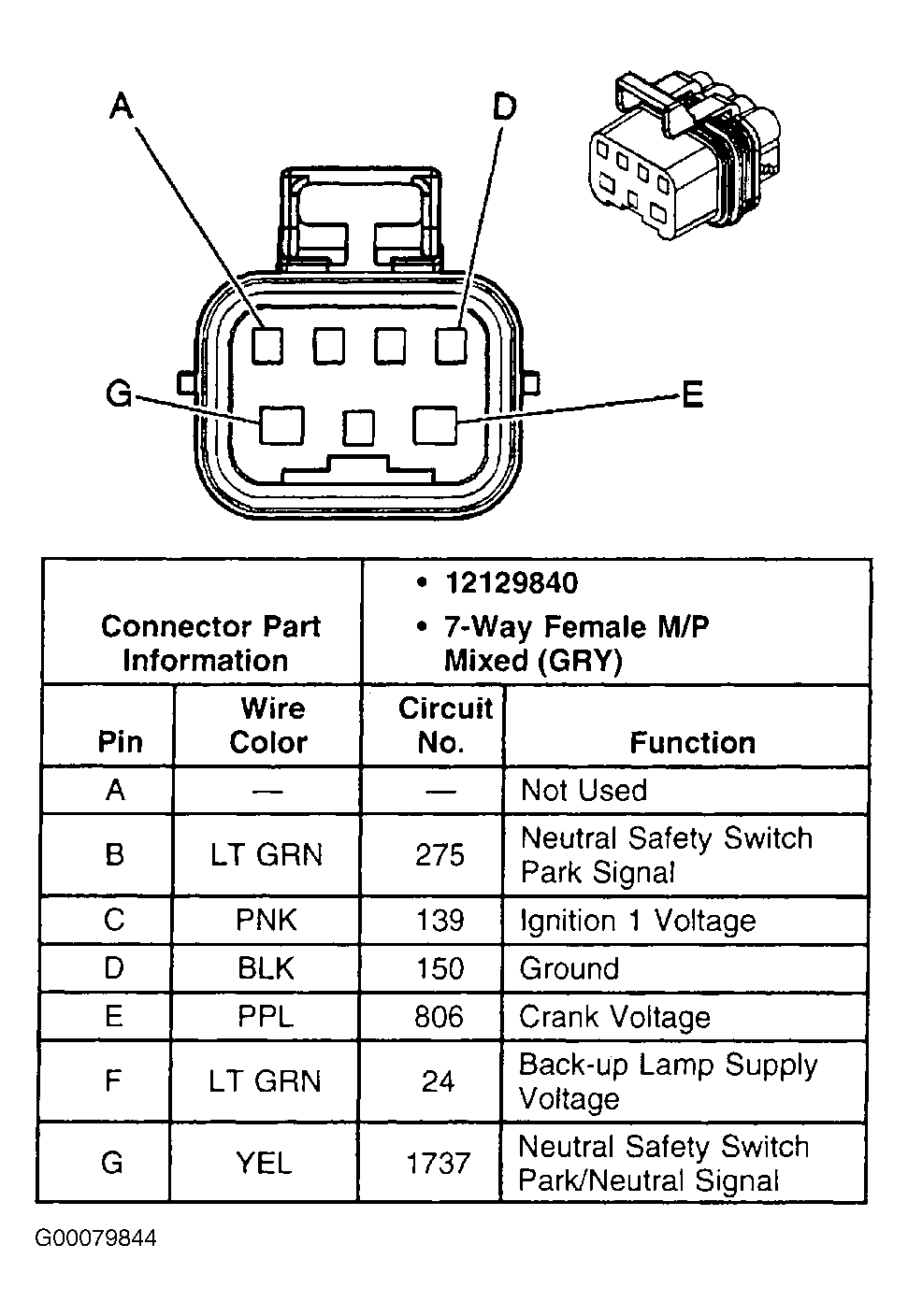

Fig 3: Identifying PNP Switch Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

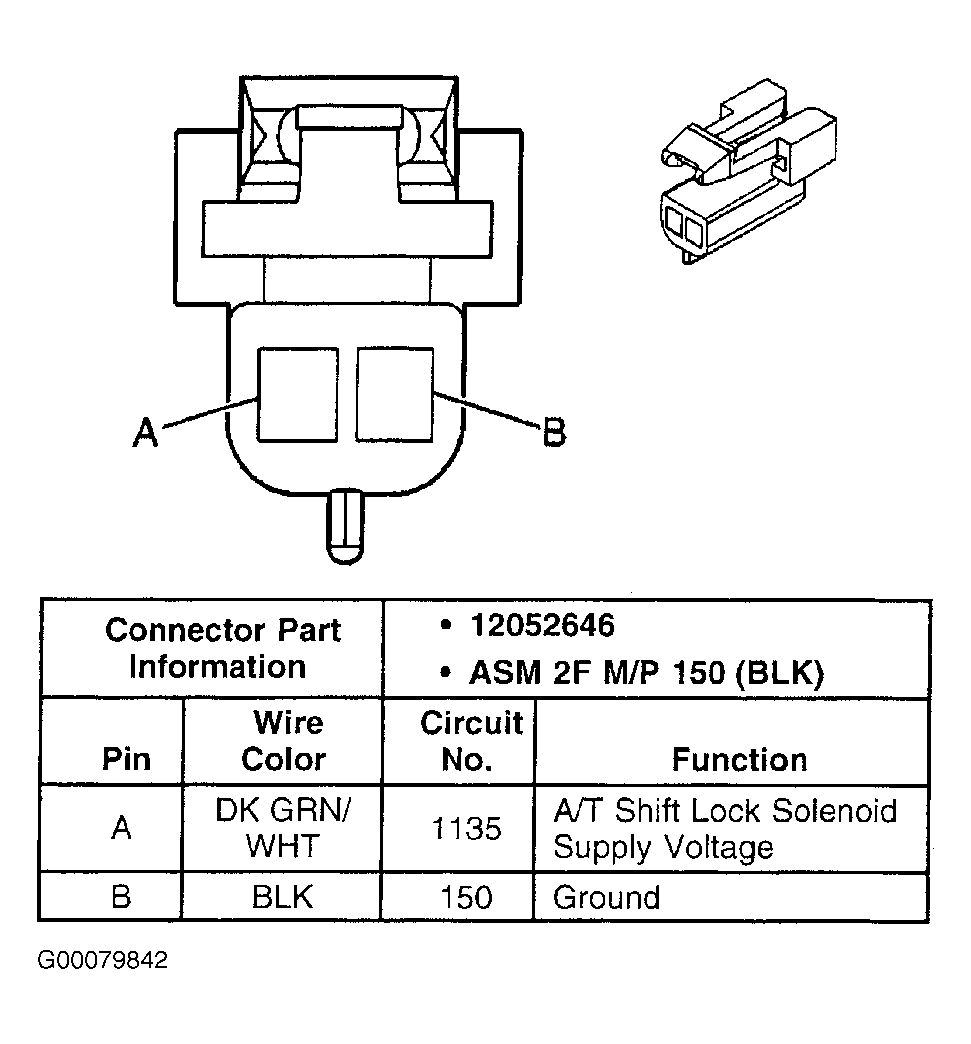

Fig 4: Identifying PNP Switch Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Shift Lock Solenoid Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.
