Entertainment Component Views

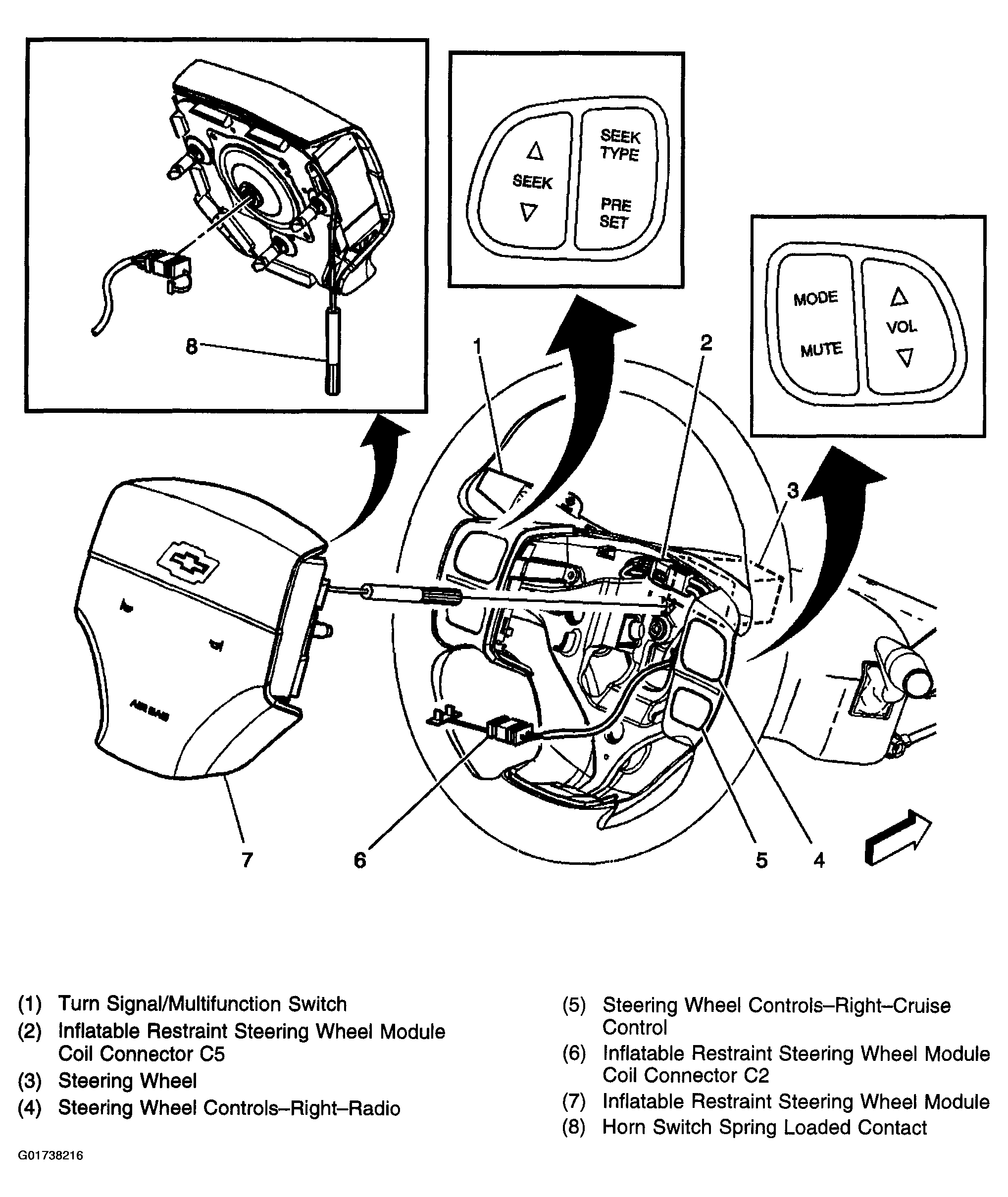

Fig 1: Identifying Steering Wheel Controls (Radio)

Courtesy of GENERAL MOTORS CORP.

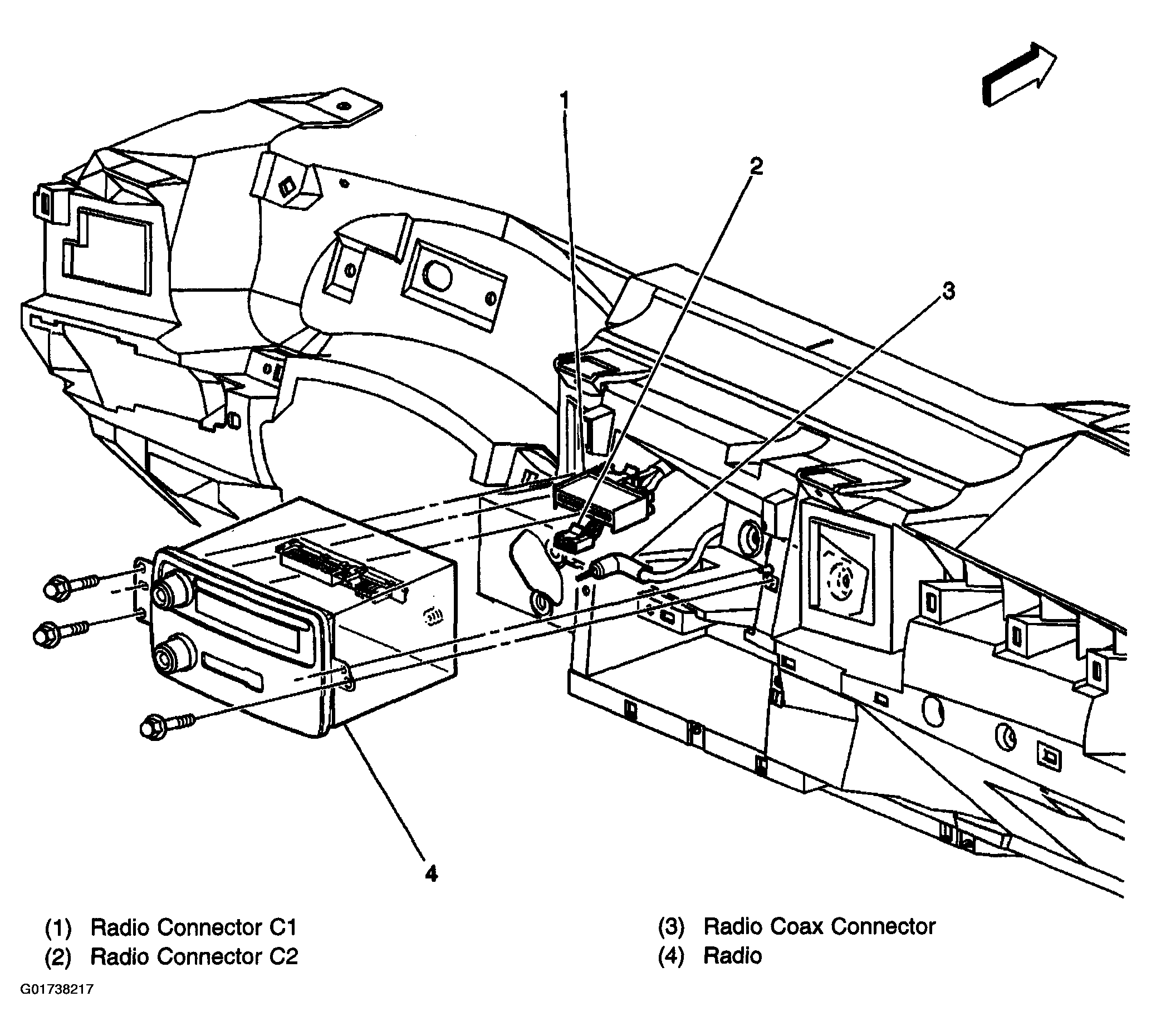

Fig 2: Radio & Connectors

Courtesy of GENERAL MOTORS CORP.

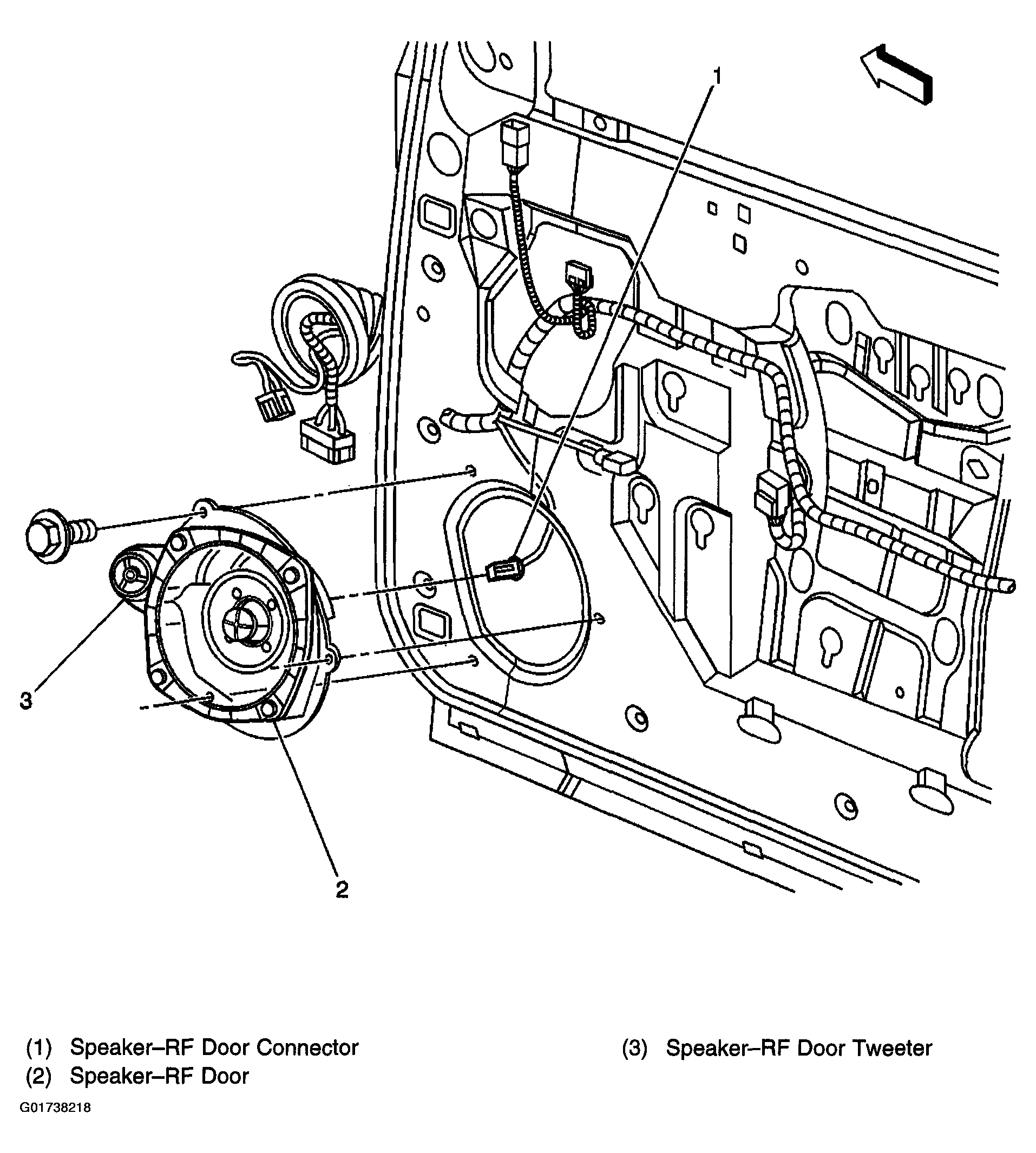

Fig 3: Locating Front Door Speakers (Typical)

Courtesy of GENERAL MOTORS CORP.

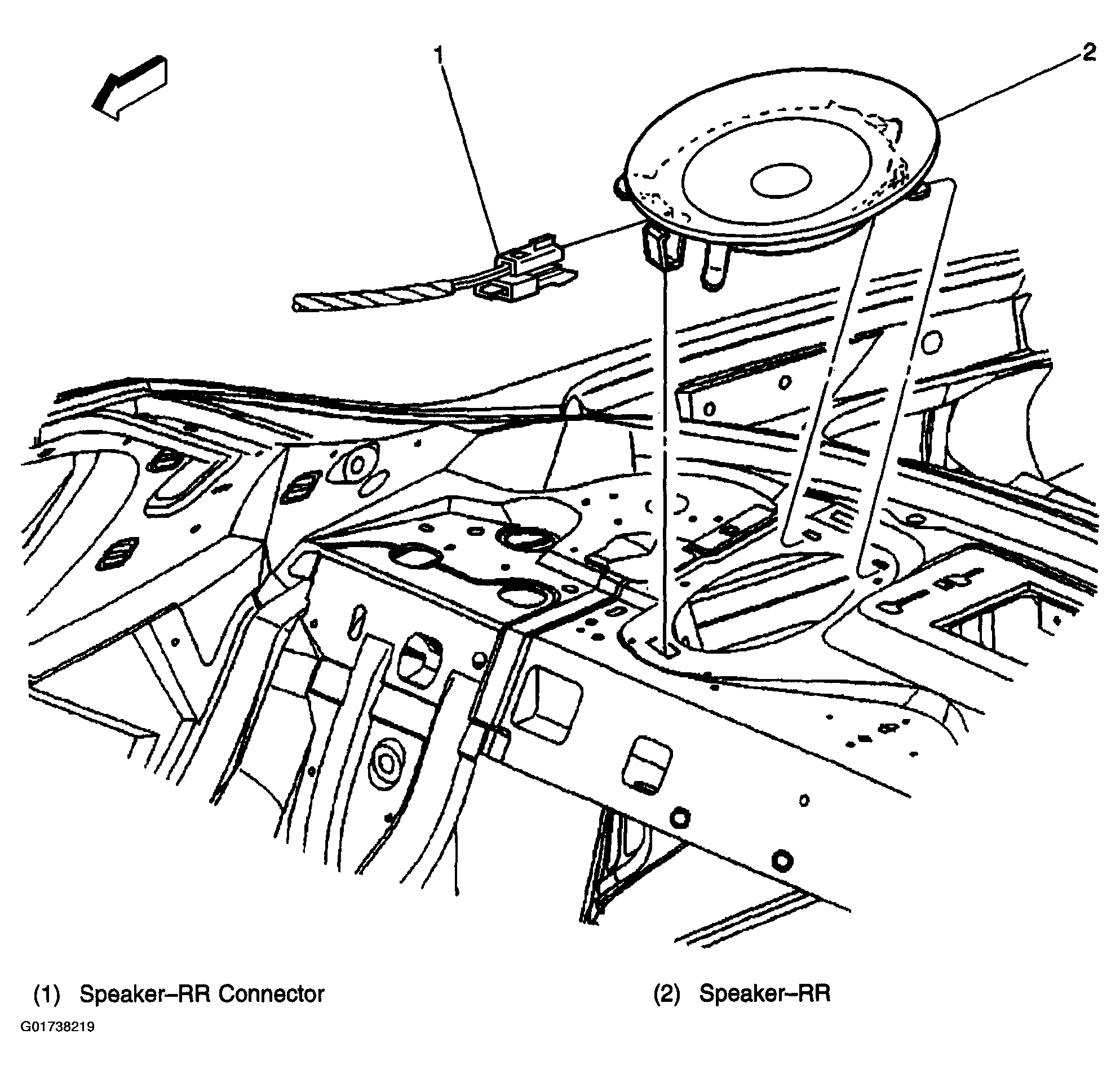

Fig 4: Locating Package Shelf Speaker (Right Side Shown; Left Side Similar)

Courtesy of GENERAL MOTORS CORP.

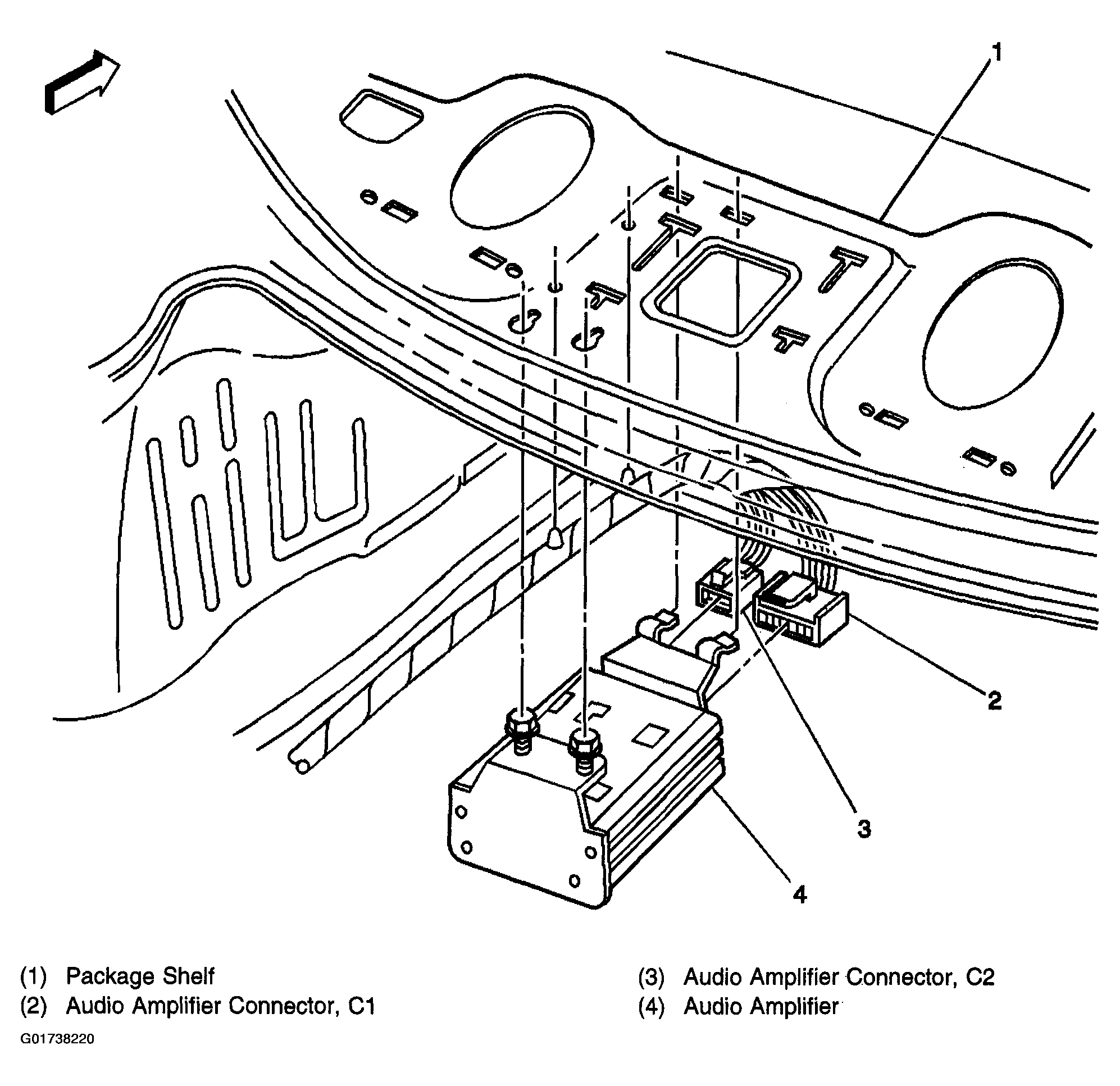

Fig 5: Locating Audio Amplifier

Courtesy of GENERAL MOTORS CORP.

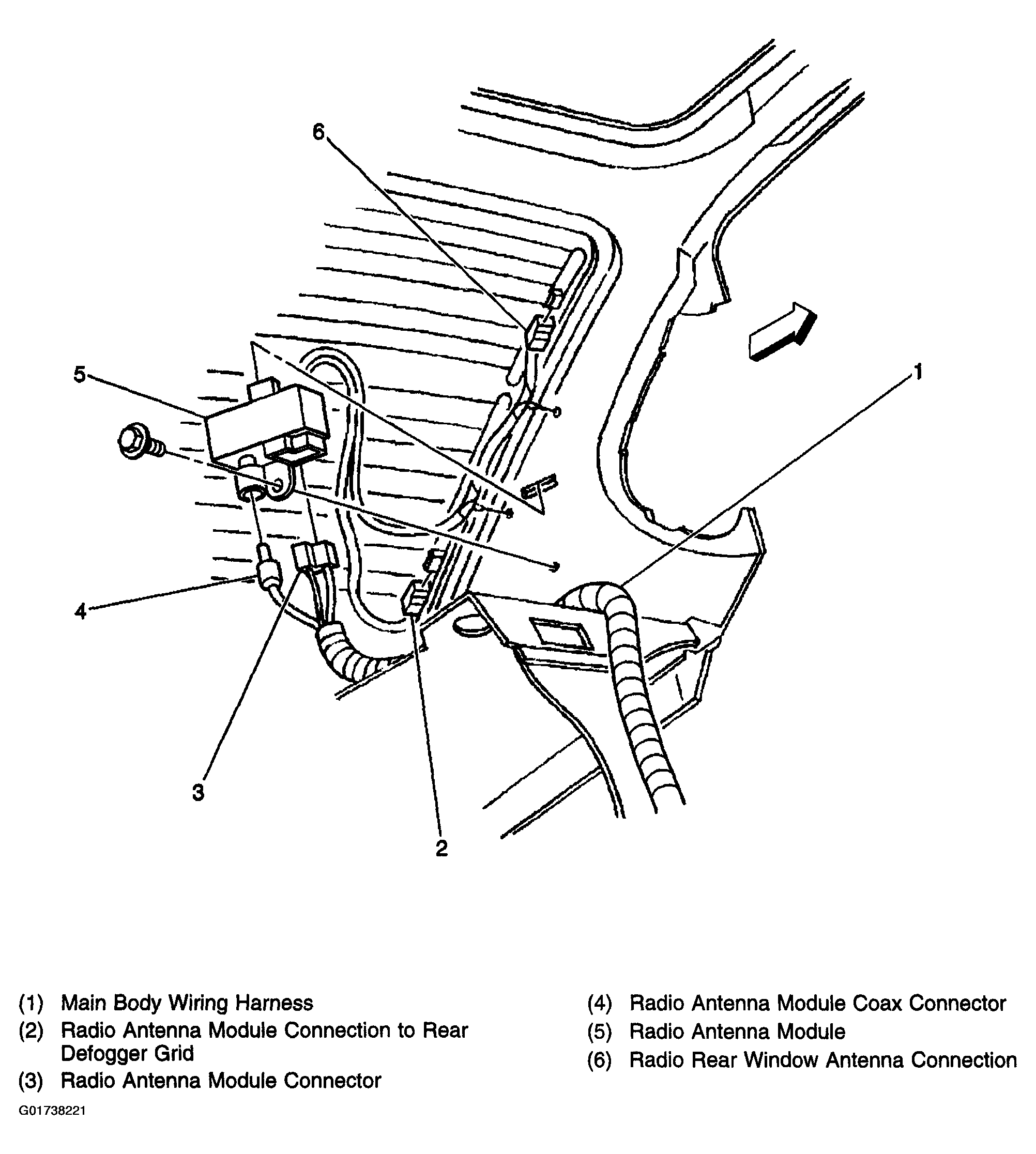

Fig 6: Locating Radio Antenna Module

Courtesy of GENERAL MOTORS CORP.
