Wiper/Washer System Connector End Views

Fig 1: Identifying Windshield Washer Fluid Level Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

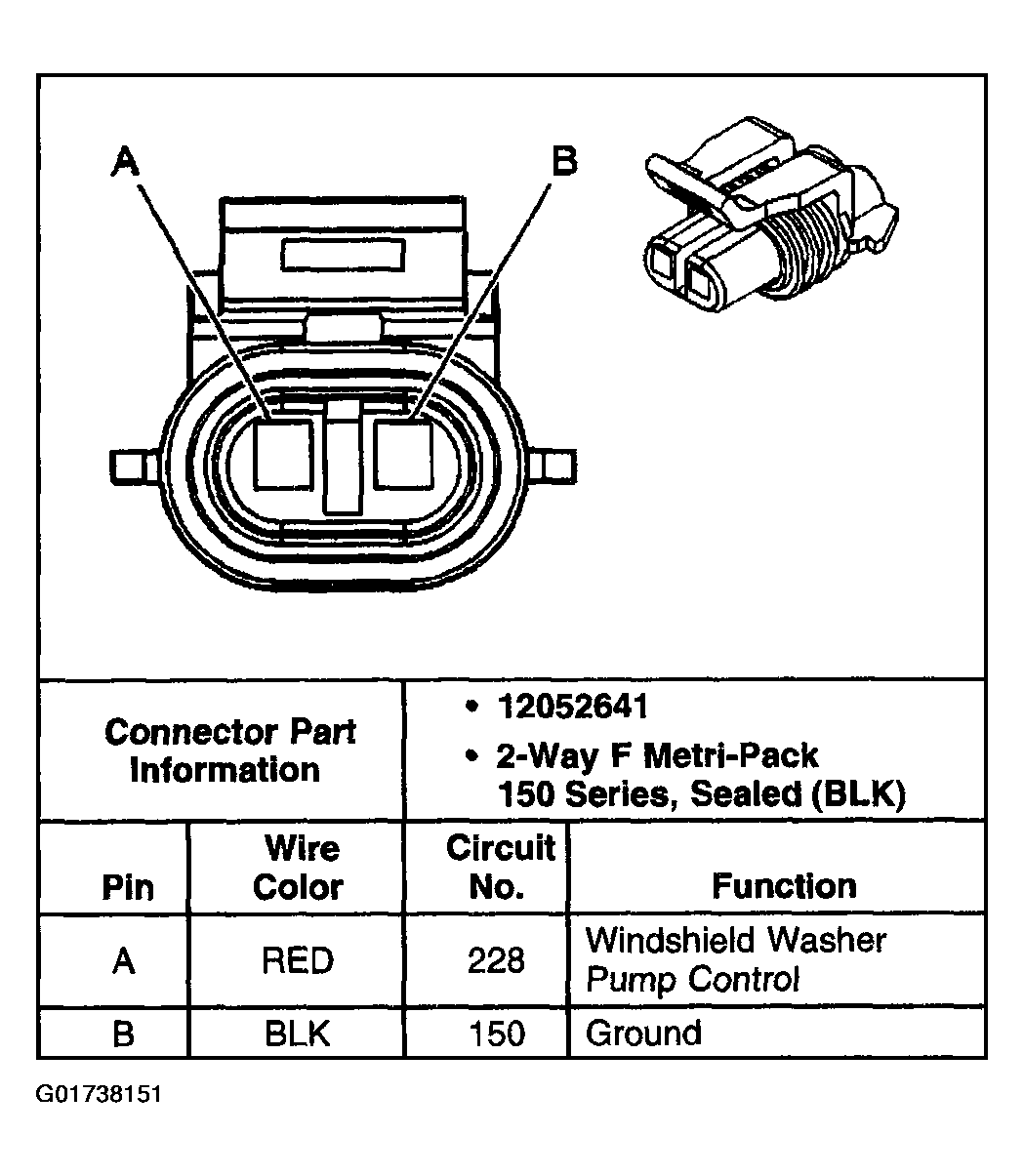

Fig 2: Identifying Windshield Washer Fluid Pump Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Windshield Wiper System Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.
