Removal Procedure
- Turn the ignition switch to the OFF position.
- Remove the attaching bolts for the cruise control module.
- Swing the cruise control module off to the side.
- Disengage the red locking tab from the connector (1).

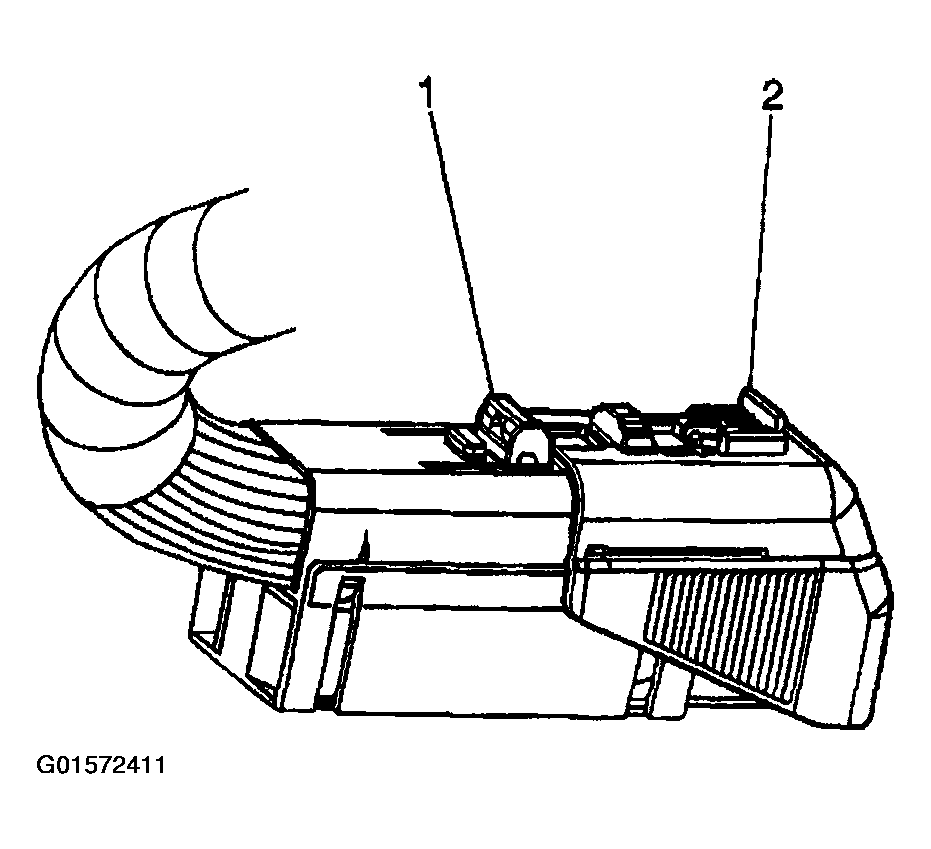

- Push down lock tab (1) and then move sliding connector cover (2) to the open position.
- Disconnect the EBCM harness connector.
Important: Note the locations of the brake pipes in order to aid in installation.

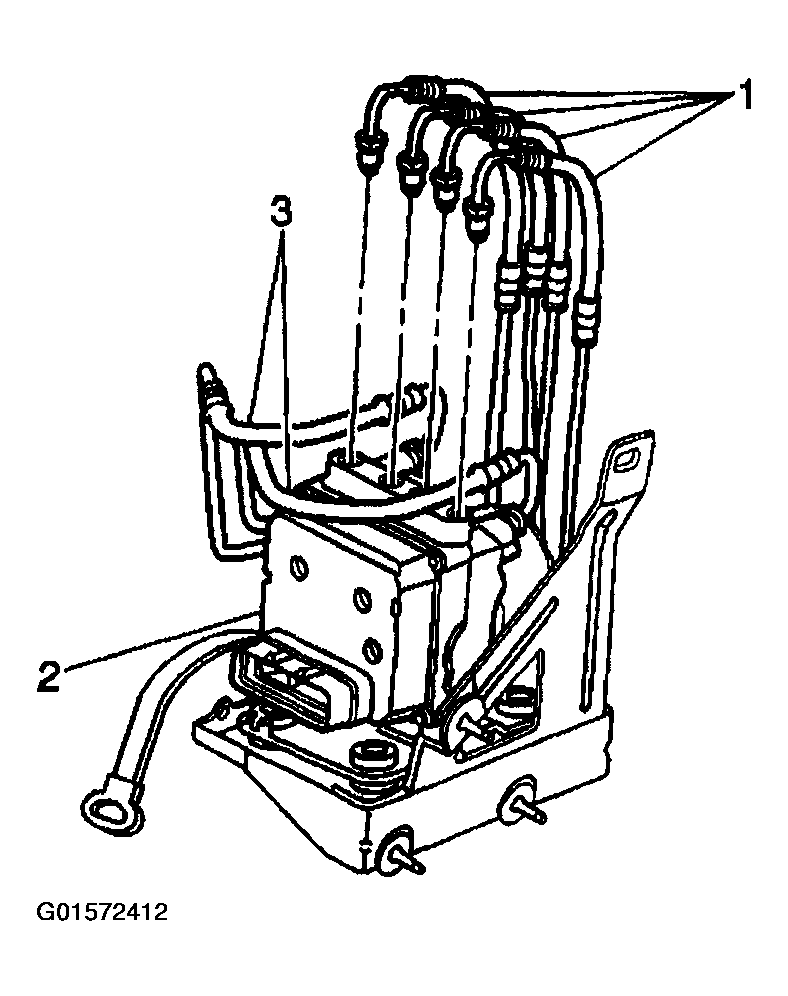

- Disconnect the brake pipes (1) from the BPMV (2).
- Swing the 4 brakes pipes out of the way only after covering the open pipes to avoid dripping or being contaminated.

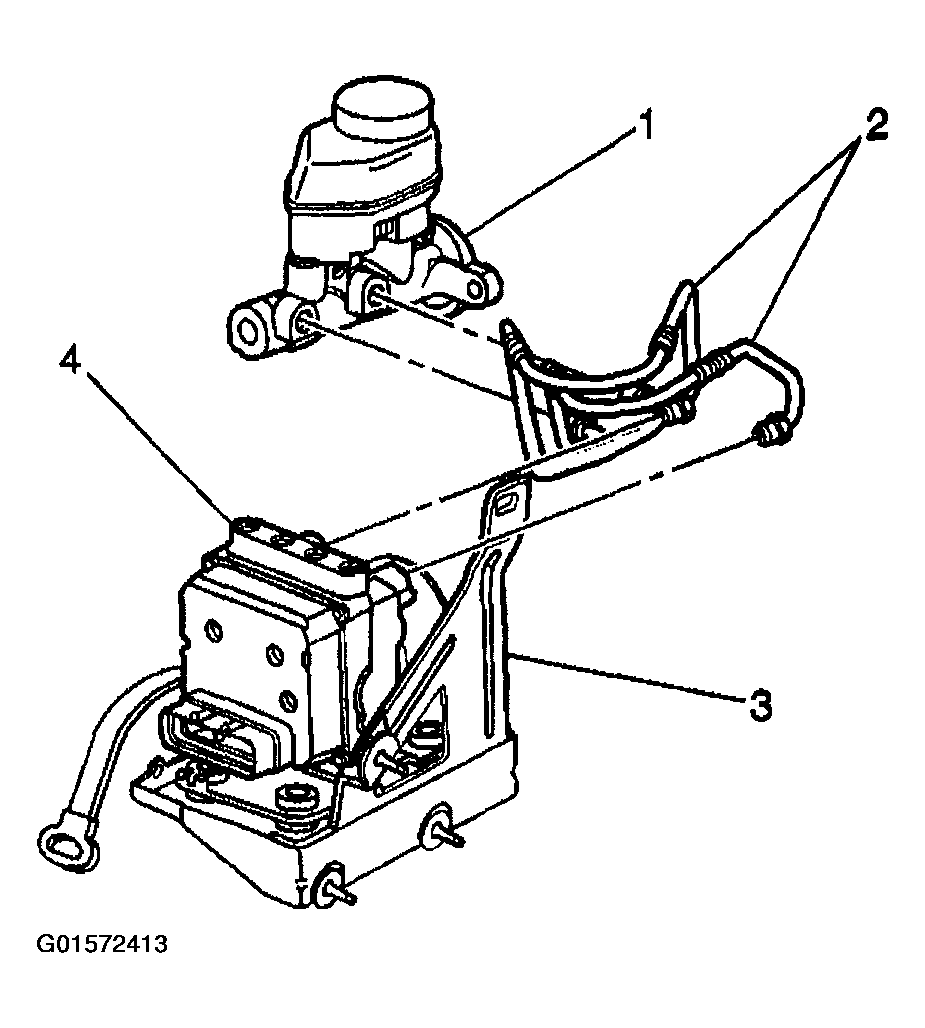

- Disconnect the master cylinder brake pipes (2) from the BPMV (4).
- It is not necessary to remove the brake pipes (2) from the master cylinder (1).
- Swing the 2 master cylinder brake pipes out of the way only after covering the open pipes to avoid dripping or being contaminated.

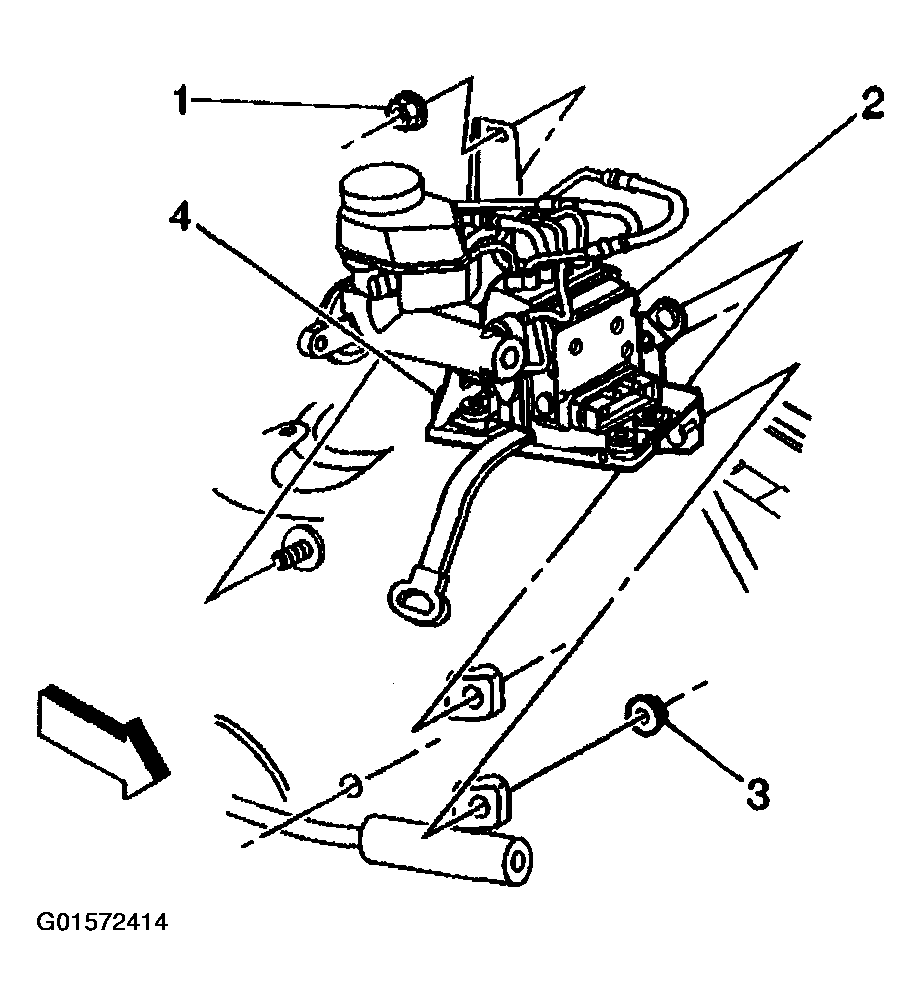

- Remove the 2 BPMV mounting bracket nuts (3) and 1 bolt located near the bottom and one nut (1) located at the top of the BPMV mounting bracket (4) to the strut tower.
- Disconnect the ground strap between the EBCM assembly and the chassis.
- Remove the BPMV mounting bracket (4) and EBCM assembly (2) from the vehicle.

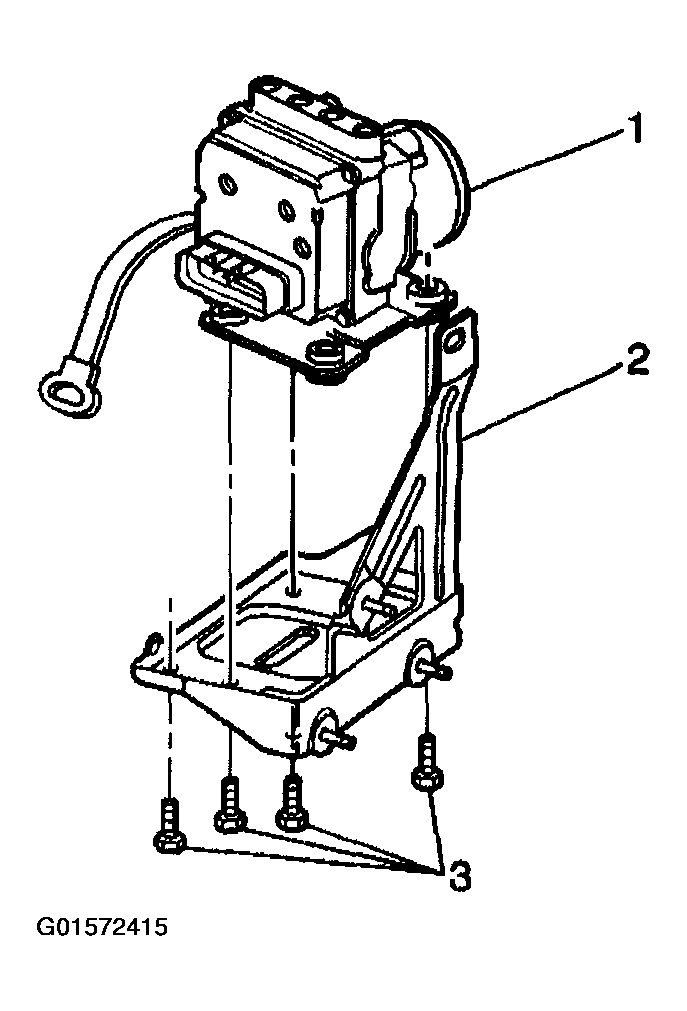

- Remove the 4 bolts (3) that connect the BPMV (1) to the mounting bracket (2).
- Remove EBCM if replacing the BPMV only. Refer to Electronic Brake Control Module (EBCM) Replacement .
