Pressure Sensor Connector End View
Pressure Sensor Connector End View

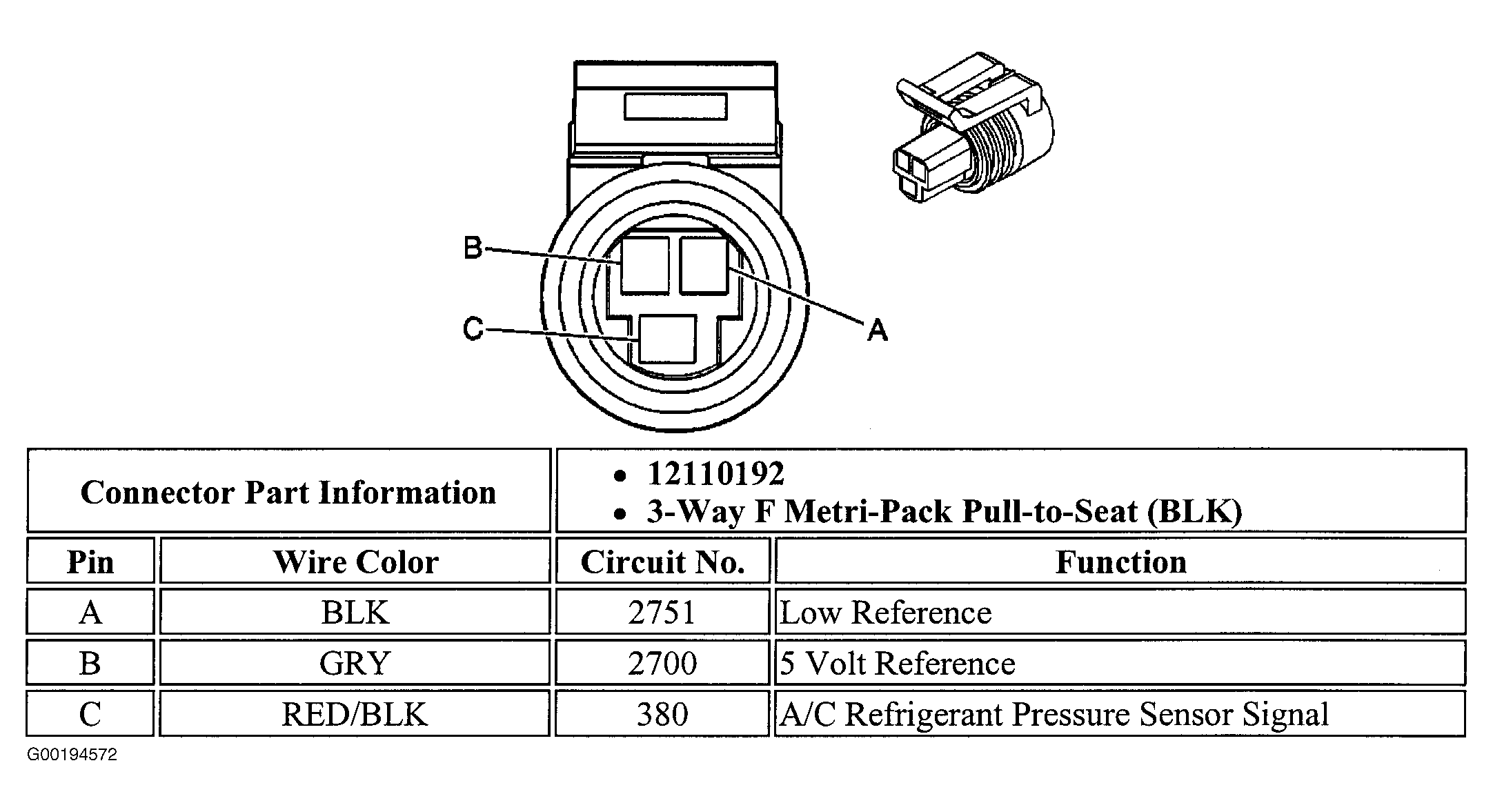

Fig 1: Pressure Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
