Surveillance Mode Switch Connector End View

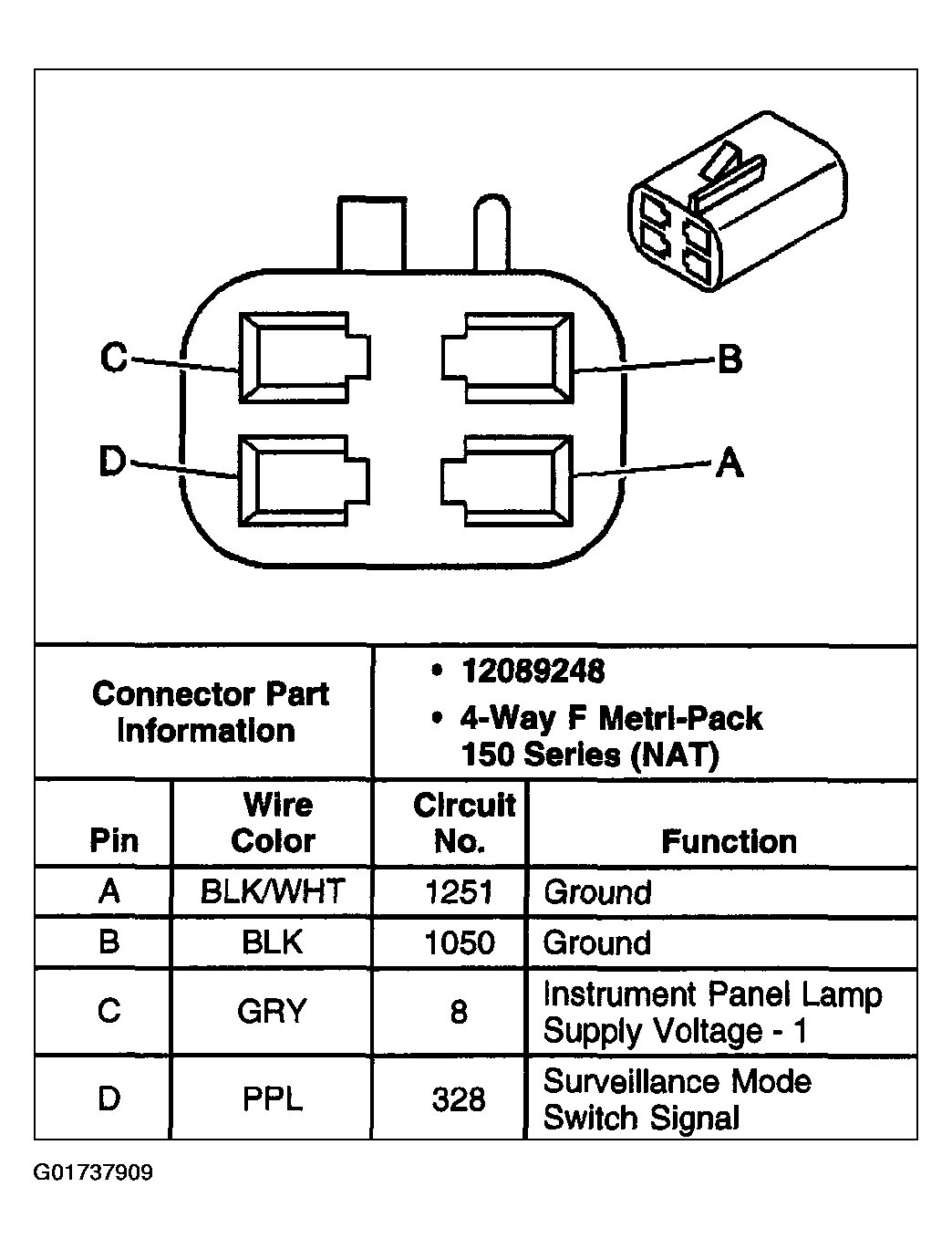

Fig 1: Surveillance Mode Switch
G01737909Courtesy of GENERAL MOTORS CORP.
