Windshield Washer Fluid Level Switch Connector End View

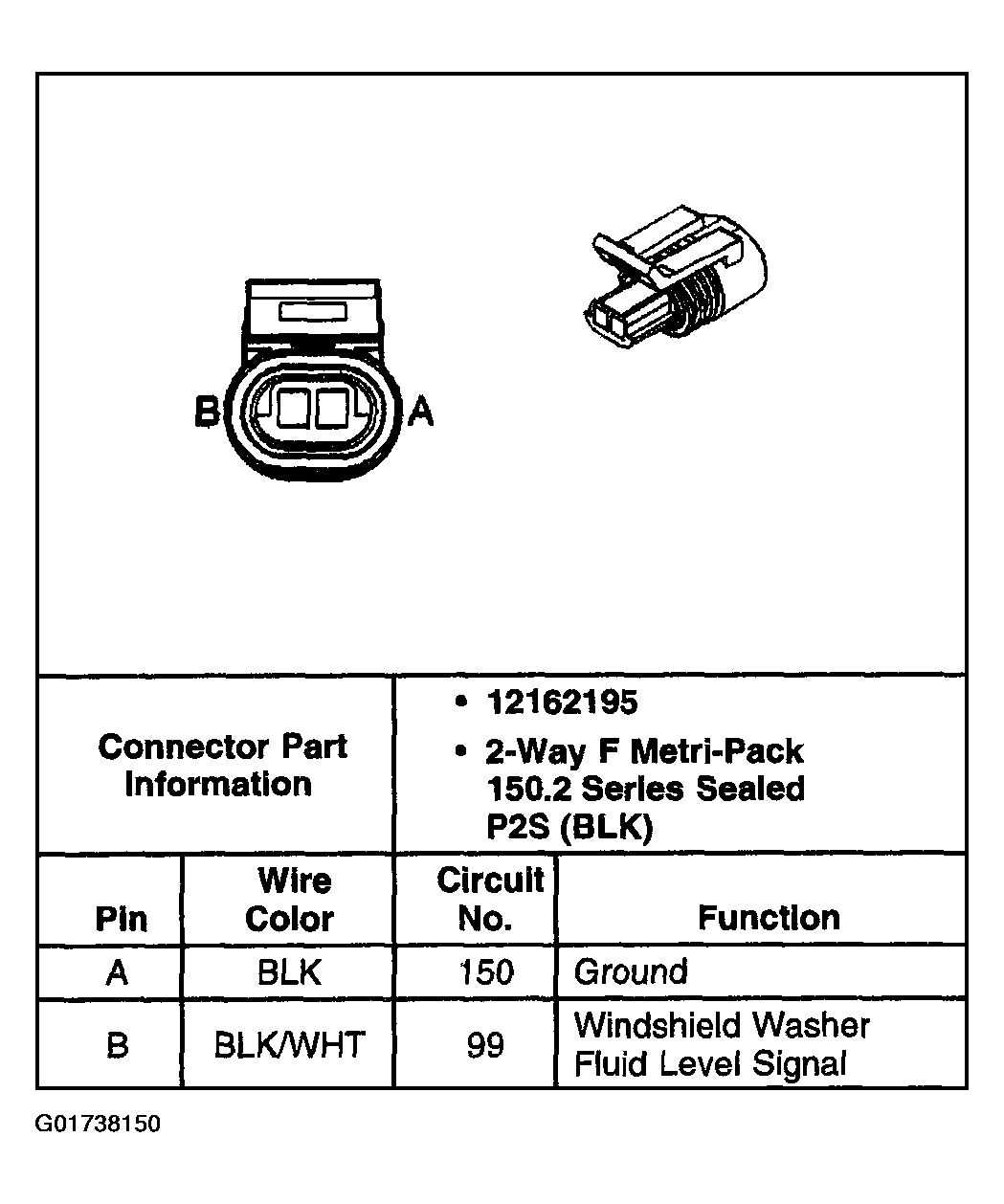

Fig 1: Windshield Washer Fluid Level Switch
G01738150Courtesy of GENERAL MOTORS CORP.
