Scan Tool Output Controls
Scan Tool Output Controls

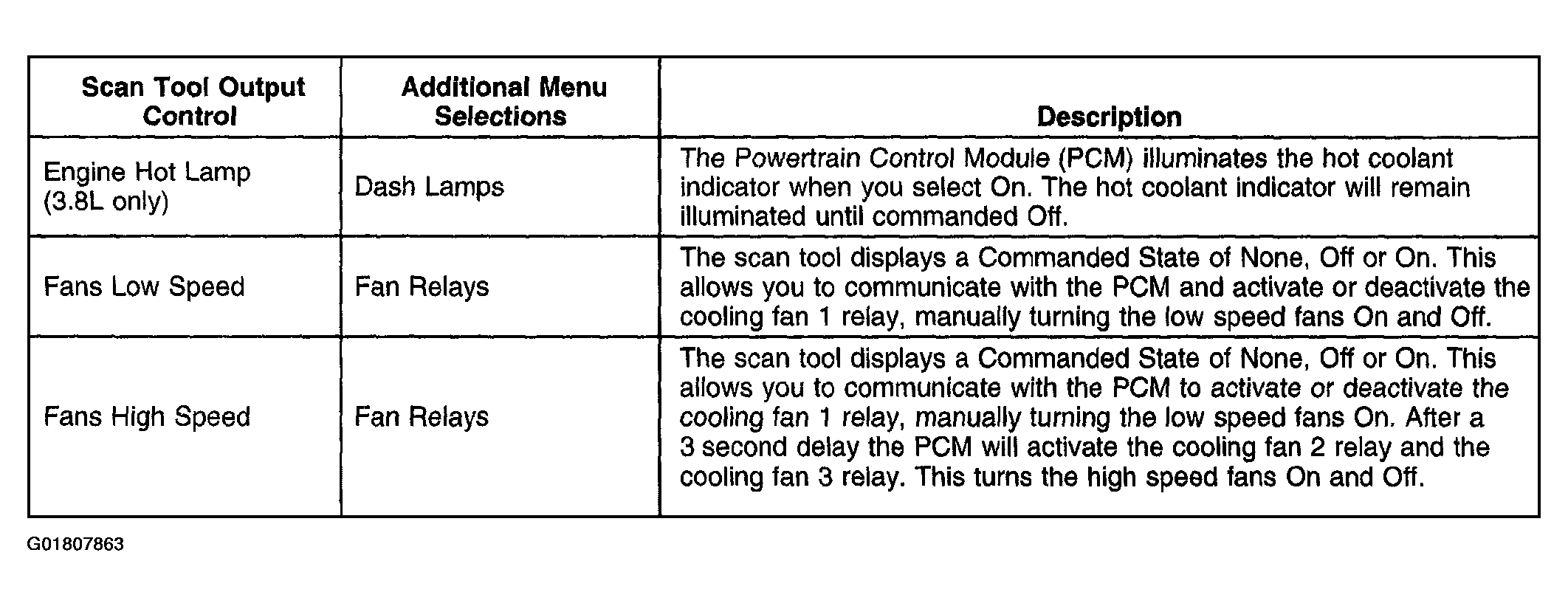

Fig 1: Powertrain Control Module (PCM) Scan Tool Output Controls
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
