Removal Procedure

  1. Remove the right diagonal brace.
  2. Remove the battery.
  3. Partially drain the cooling system. Refer to Draining & Filling Cooling System .
  4. Disconnect the low coolant module electrical connector.

    Important:  In order to unlock the low coolant module, lift one leg of the snap clip from its locked position and pull outward with a slight twisting motion.

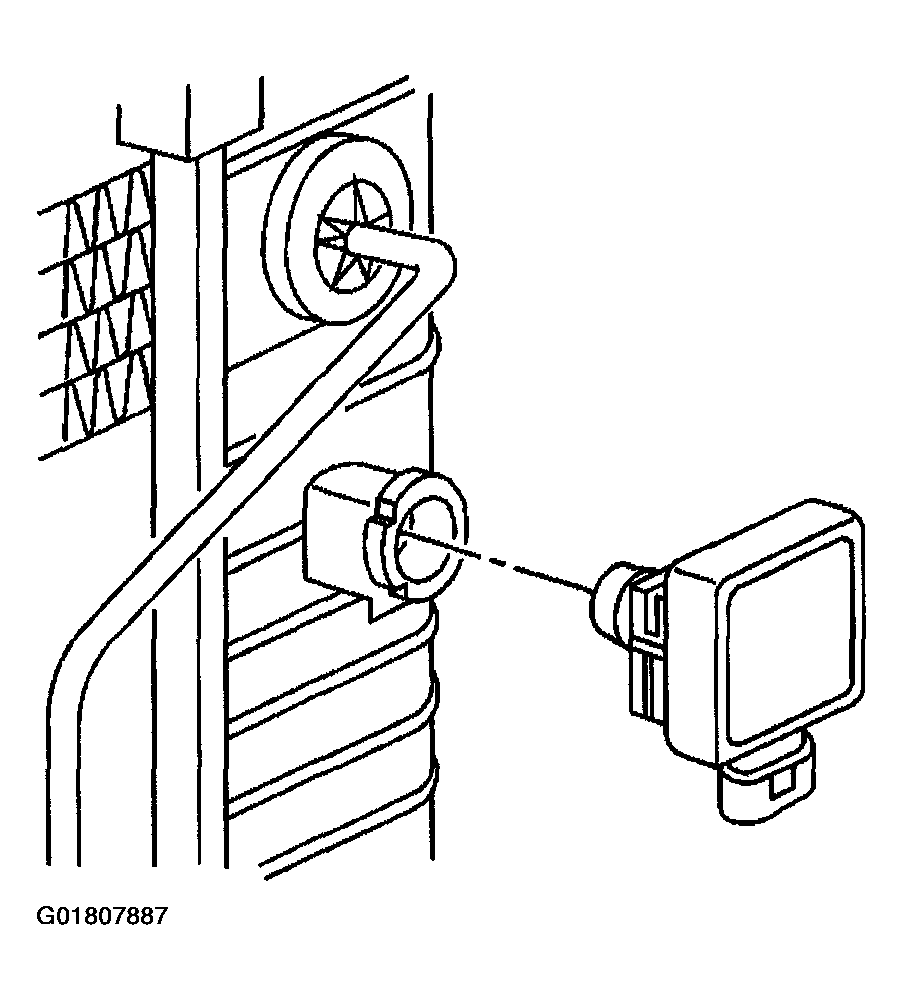

    Fig 1: Locating Low Coolant Module
    G01807887Courtesy of GENERAL MOTORS CORP.
  5. Remove the low coolant module.
