Removal Procedure

  1. Raise and support the vehicle.
  2. Support the exhaust system.
  3. Remove the exhaust pipe rear hanger insulator from the exhaust pipe rear hanger bracket.
  4. Remove the exhaust pipe rear hanger bolt.
  5. Remove the exhaust pipe rear hanger bracket.

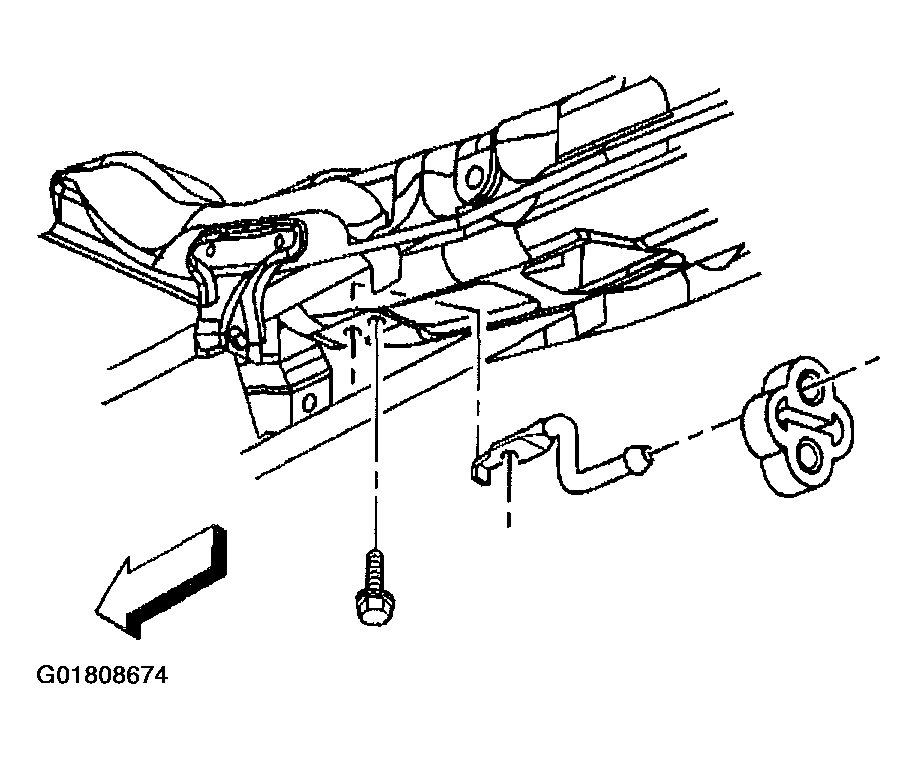

    Fig 1: Exhaust Pipe Rear Hanger
    G01808674Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust pipe rear hanger insulators from the exhaust muffler rear hanger bracket.

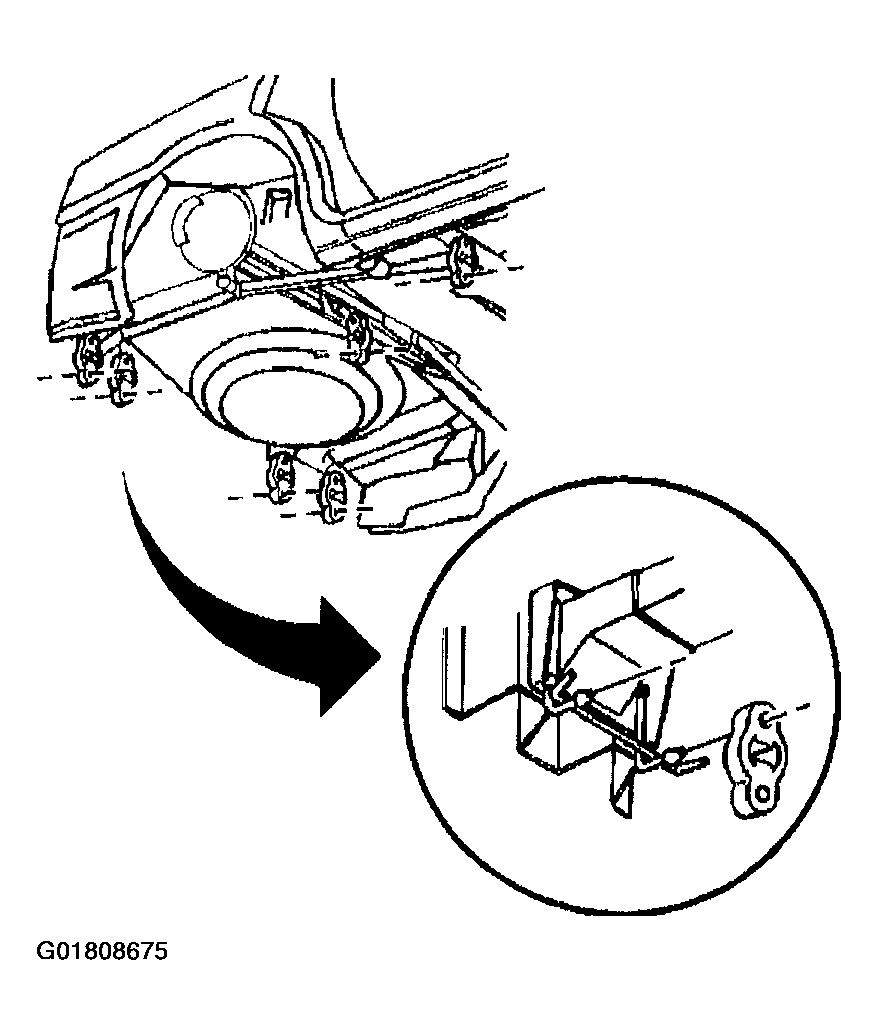

    7. Fig 2: Exhaust Pipe Rear Hanger Insulators
    G01808675Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear bumper impact bar bolt.
  8. Remove the exhaust muffler rear hanger bracket.
