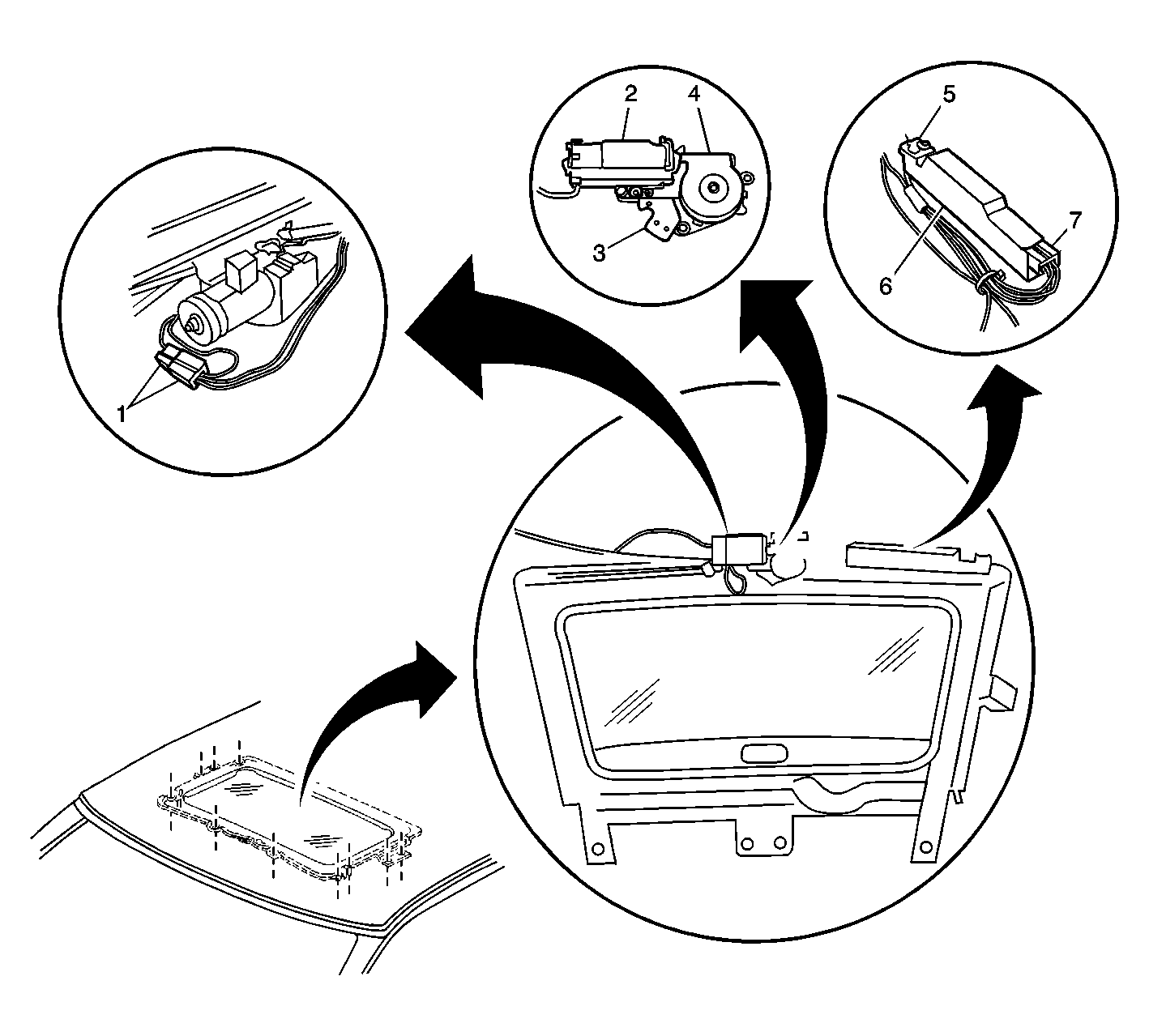

Power Roof Systems Component Views
WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Motor Connector |
| 2 |
Sunroof Motor |
| 3 |
Sunroof Opening Position Switch |
| 4 |
Gear Housing |
| 5 |
Sunroof Module Connector C1 |
| 6 |
Sunroof Module |
| 7 |
Sunroof Module Connector C2 |
