OnStar® Module Connector End View C1

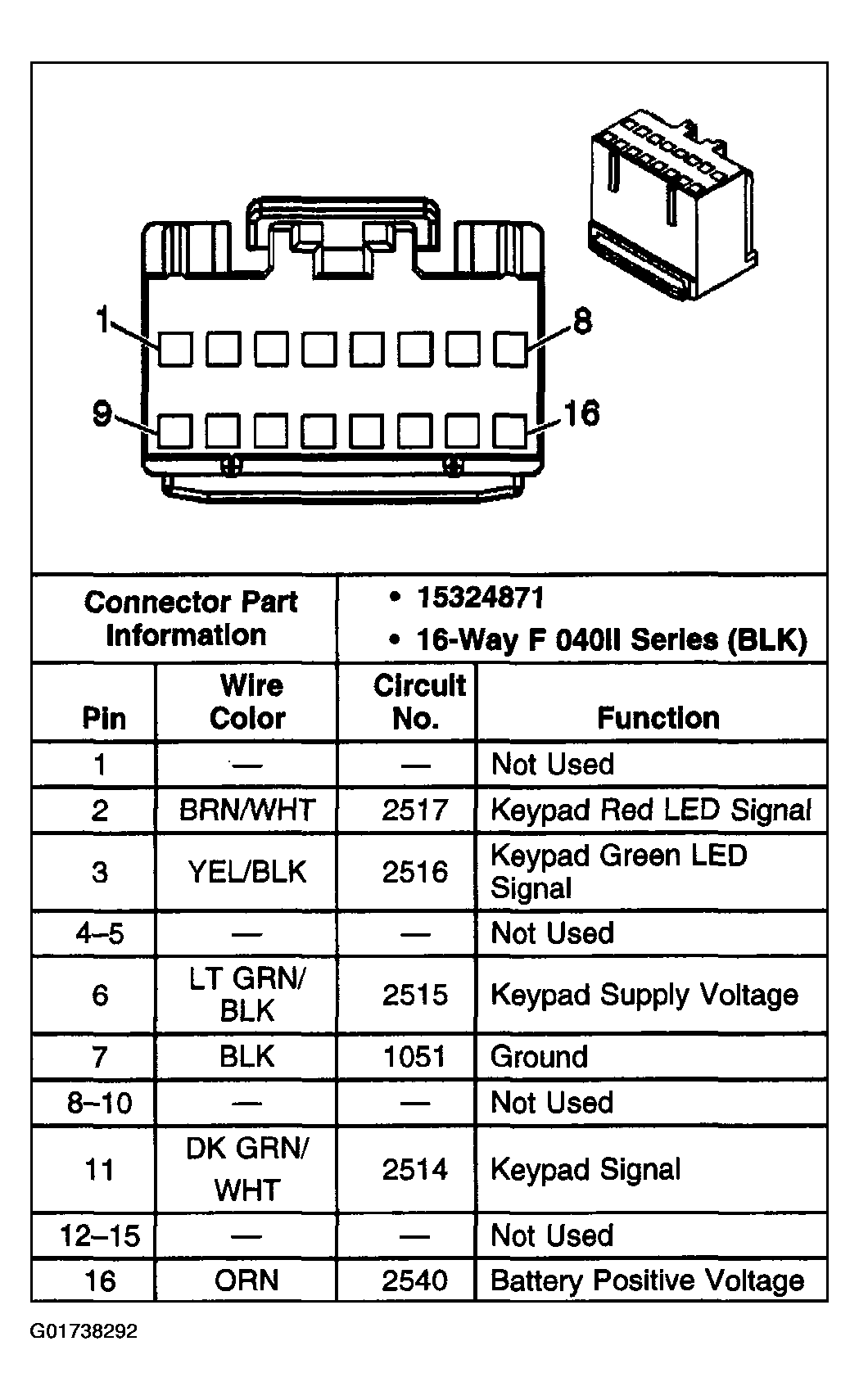

Fig 1: OnStar® Module C1
G01738292Courtesy of GENERAL MOTORS CORP.
