OnStar® Module Connector End View C2
OnStar® Module Connector End View C2

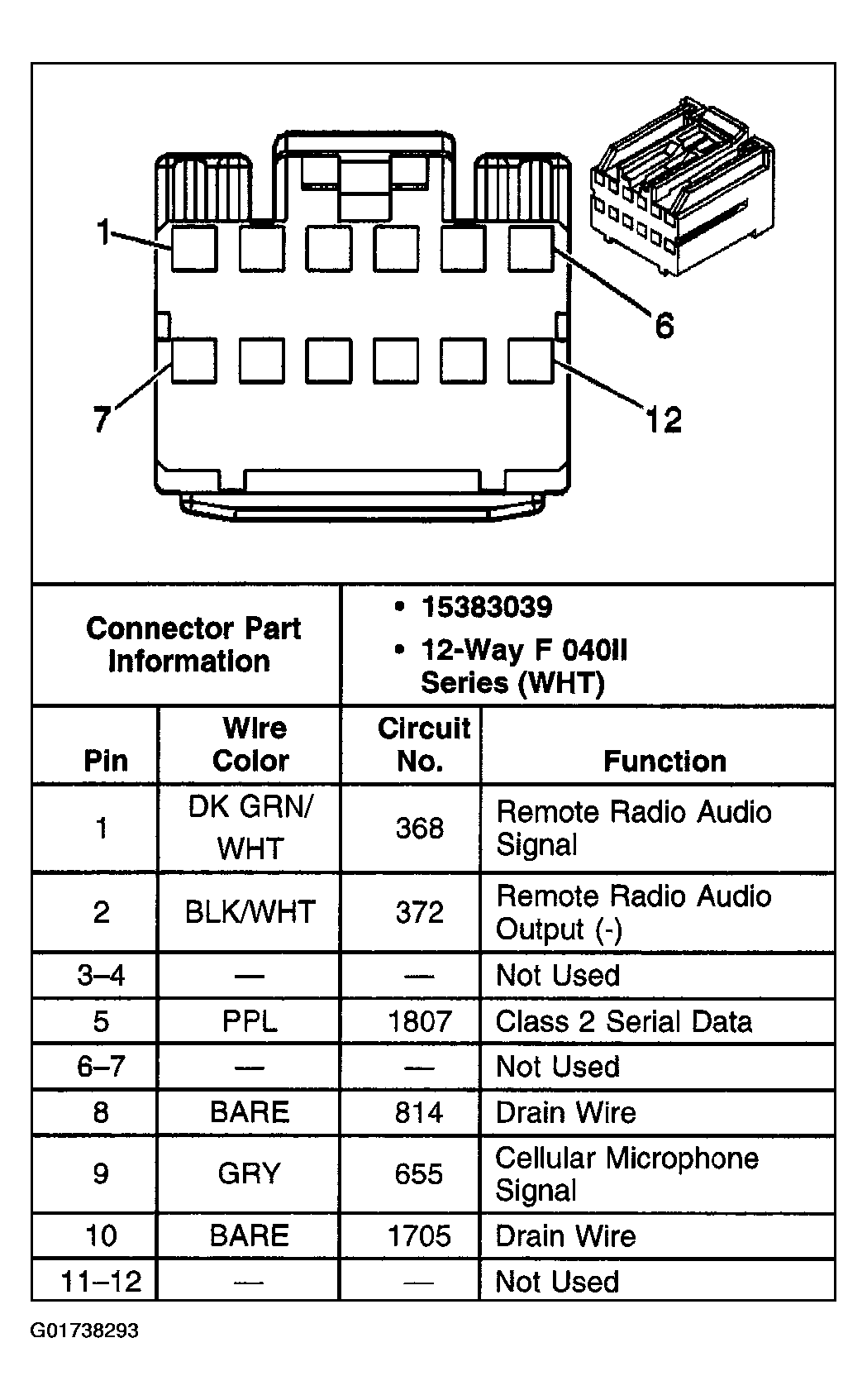

Fig 1: OnStar® Module C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
