Steering Column Disassembled View (Column Shift)

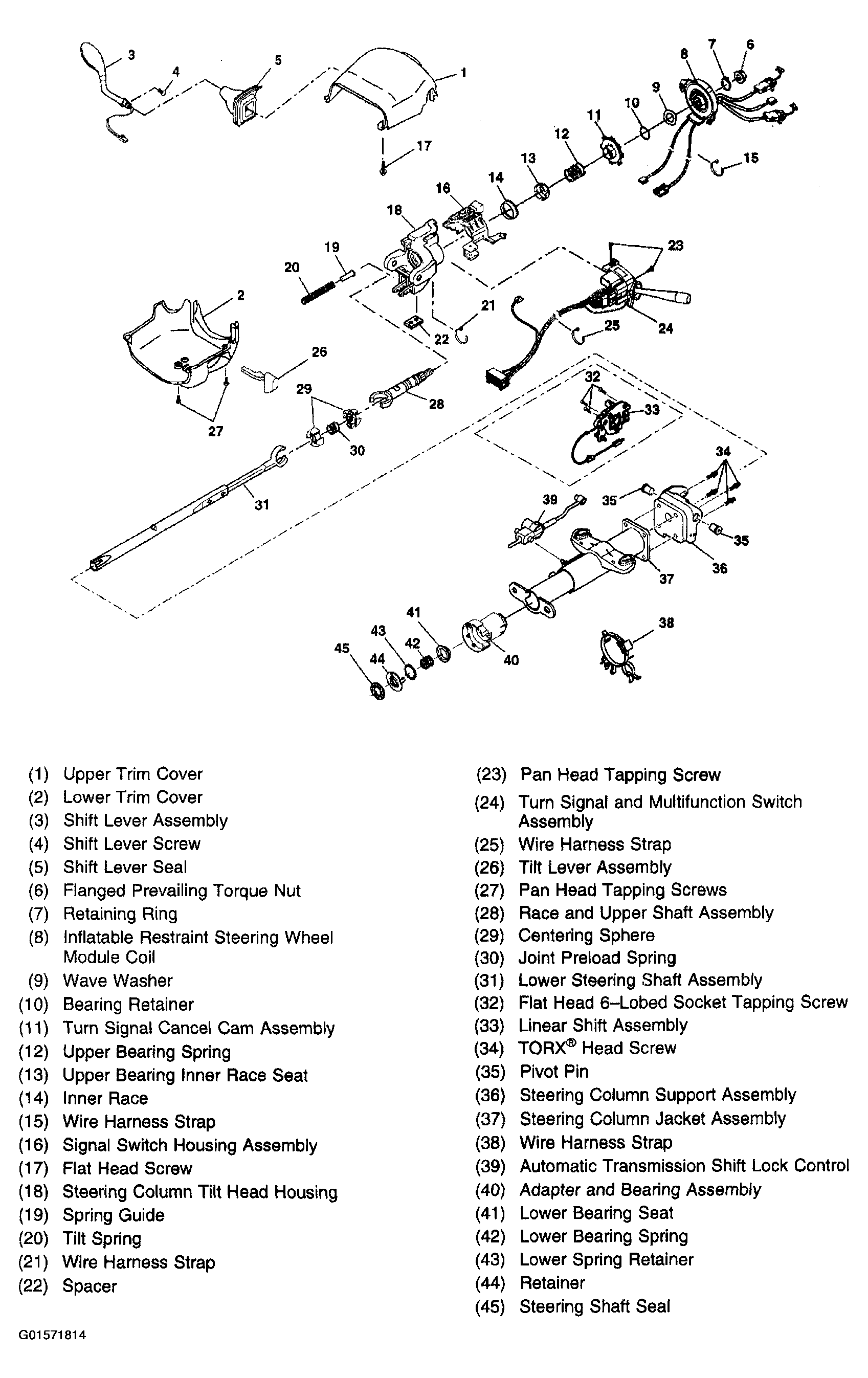

Fig 1: Locating Tilt Steering Column Components (Column Shift)
G01571814Courtesy of GENERAL MOTORS CORP.
