Wheel Alignment Specifications (Front)

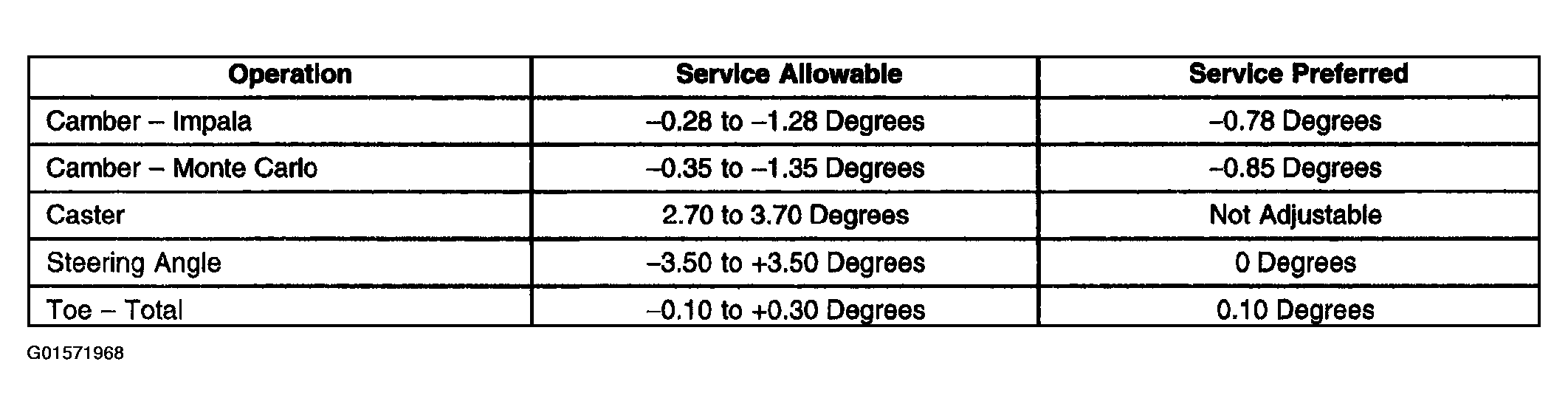

Fig 1: Wheel Alignment Specifications (Front)
G01571968Courtesy of GENERAL MOTORS CORP.
