Wheel Alignment Specifications (Rear)

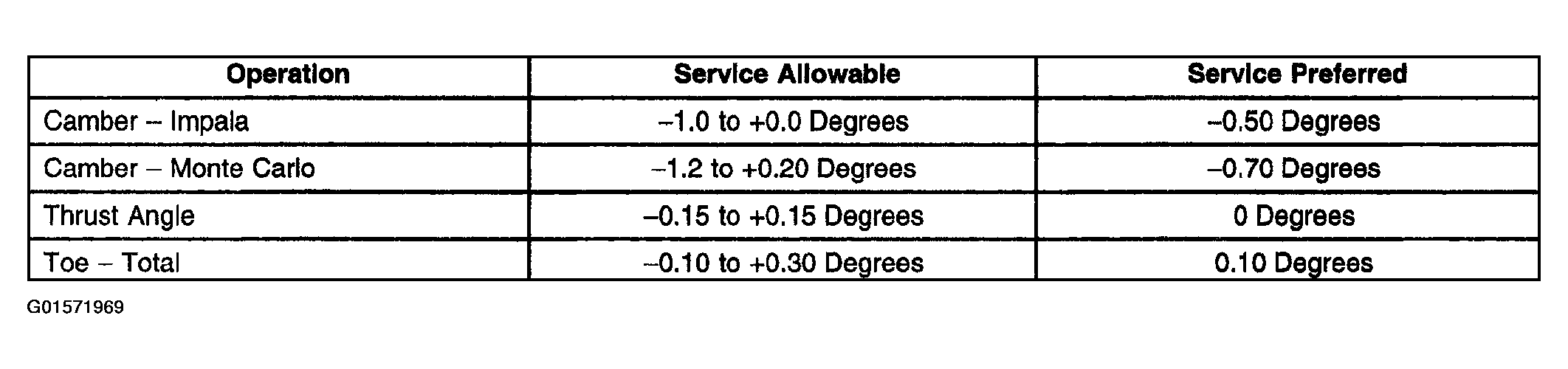

Fig 1: Wheel Alignment Specifications (Rear)
G01571969Courtesy of GENERAL MOTORS CORP.
