Connector Identification

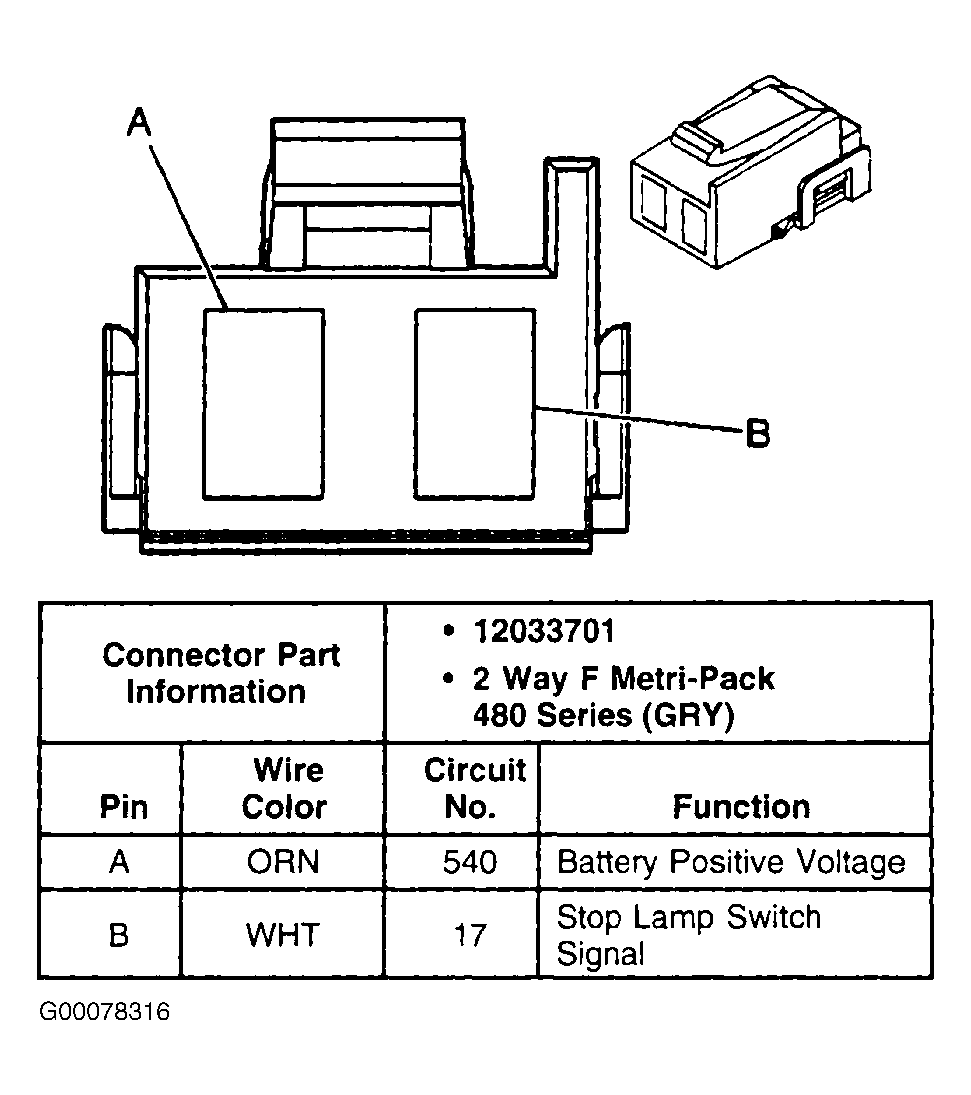

Fig 1: Identifying Stoplamp Switch Harness Connector (C1) Terminals
G00078316Courtesy of GENERAL MOTORS CORP.

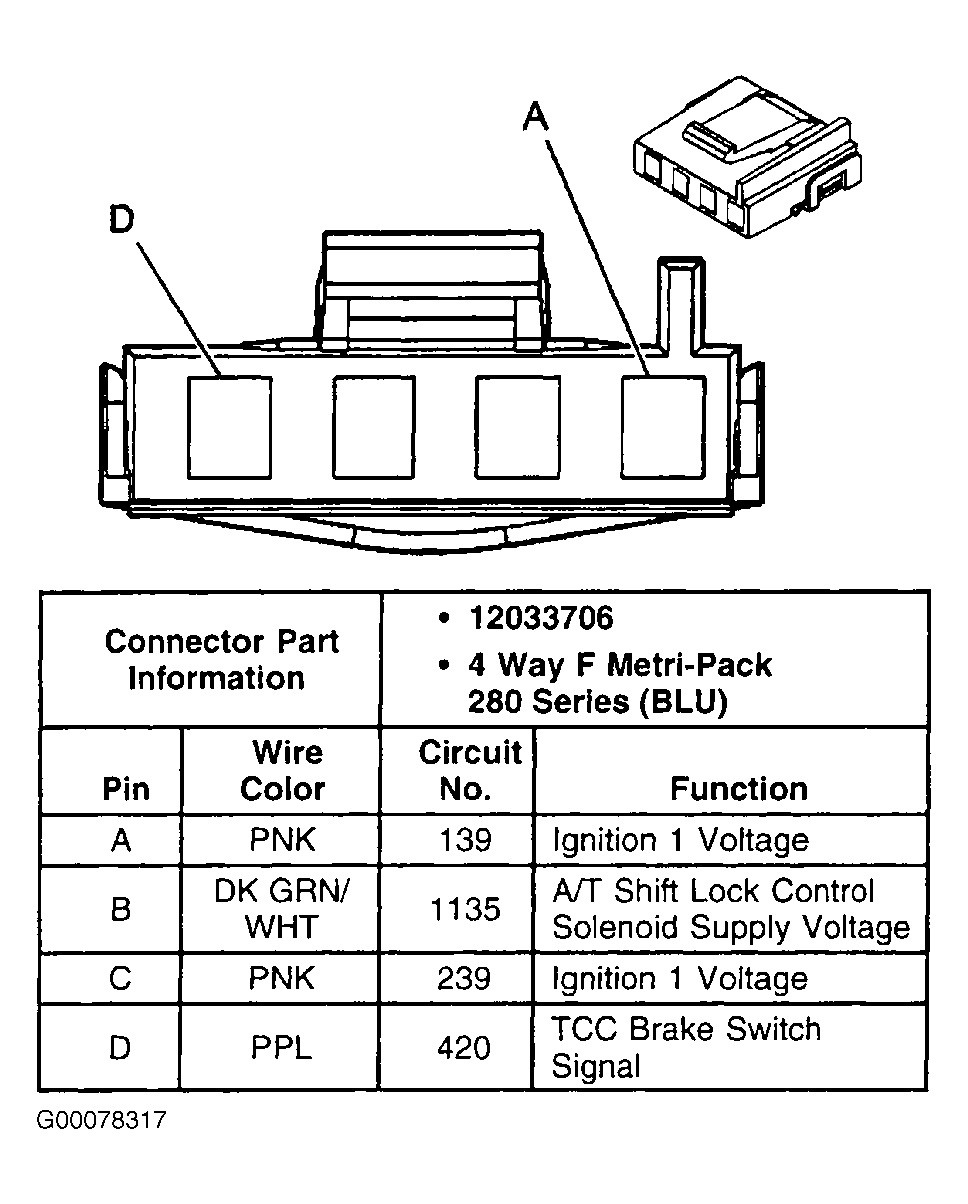

Fig 2: Identifying Stoplamp Switch Harness Connector (C2) Terminals
G00078317Courtesy of GENERAL MOTORS CORP.

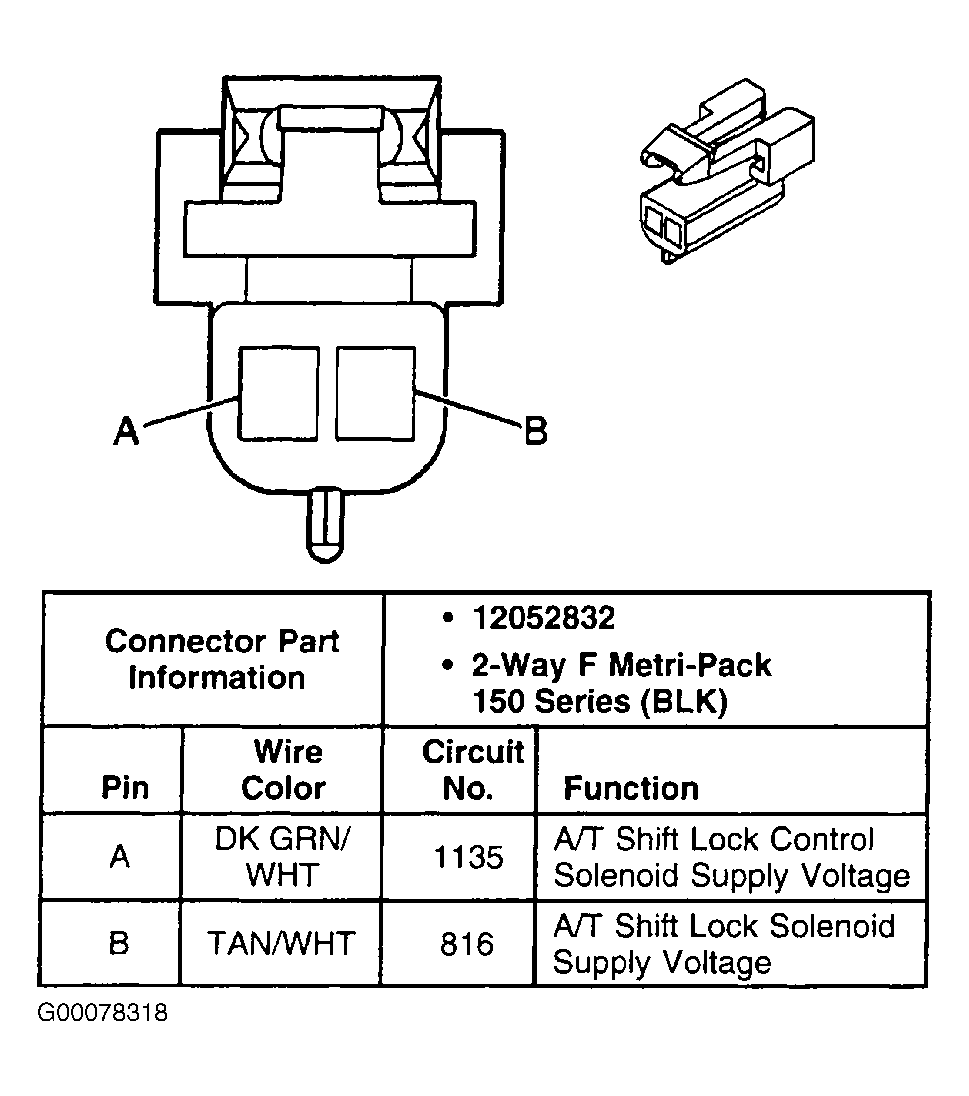

Fig 3: Identifying Shift Lock Solenoid Harness Connector Terminals
G00078318Courtesy of GENERAL MOTORS CORP.
