Cellular Communication Component Views

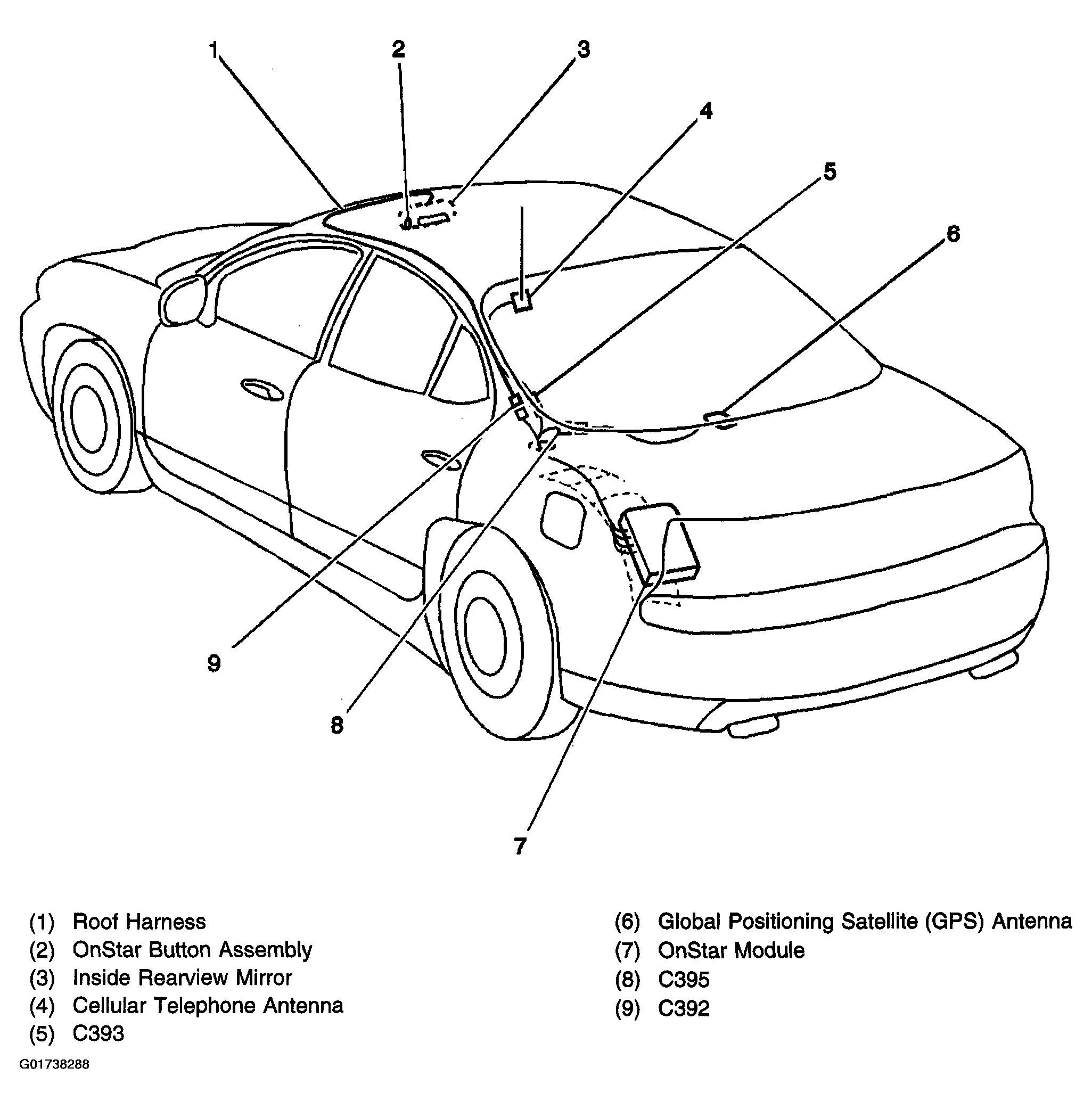

Fig 1: Locating OnStar® Sub-Systems

Courtesy of GENERAL MOTORS CORP.

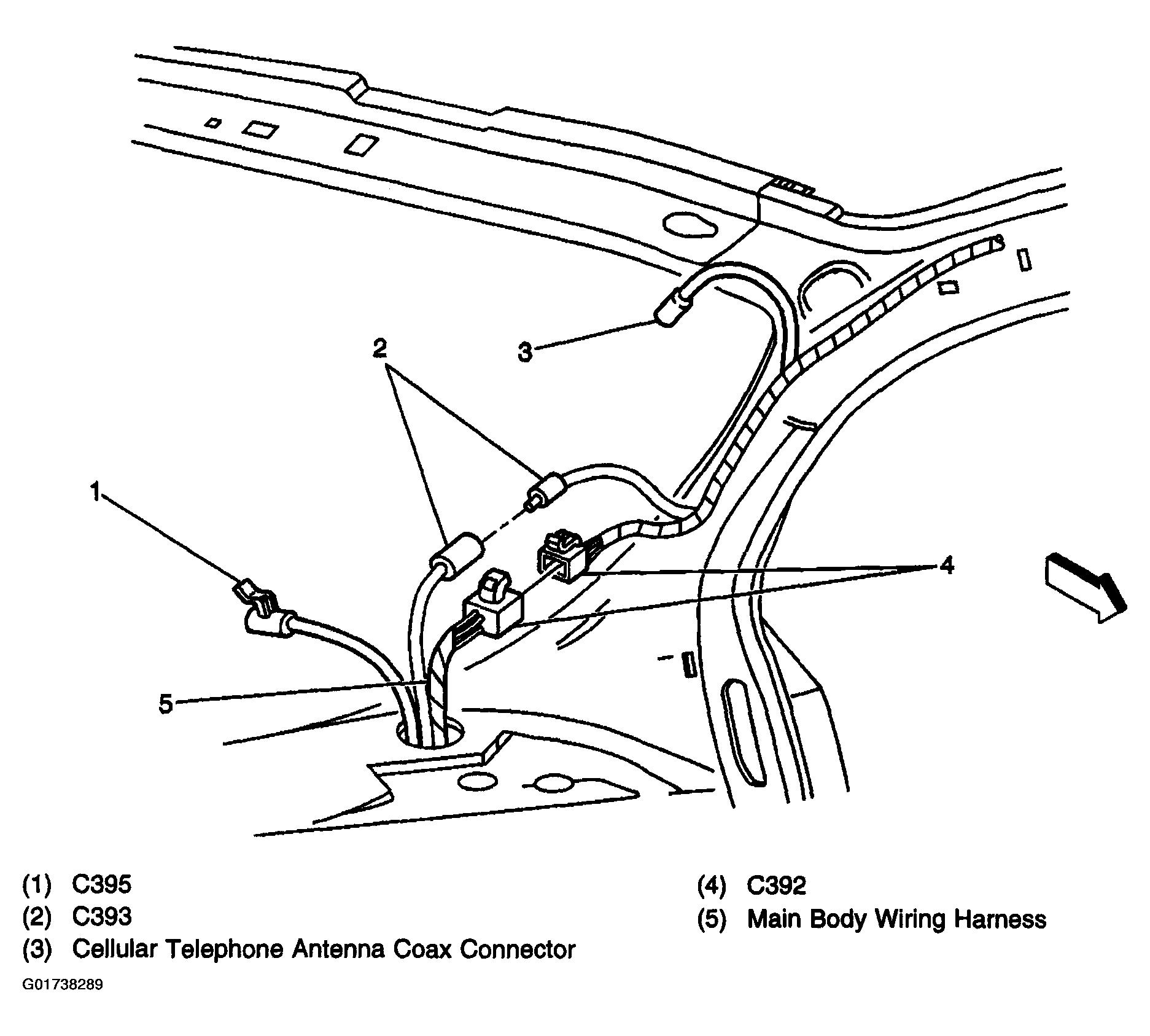

Fig 2: Locating Cellular Telephone Antenna Coax Connector Above Left Side Of Package Shelf

Courtesy of GENERAL MOTORS CORP.

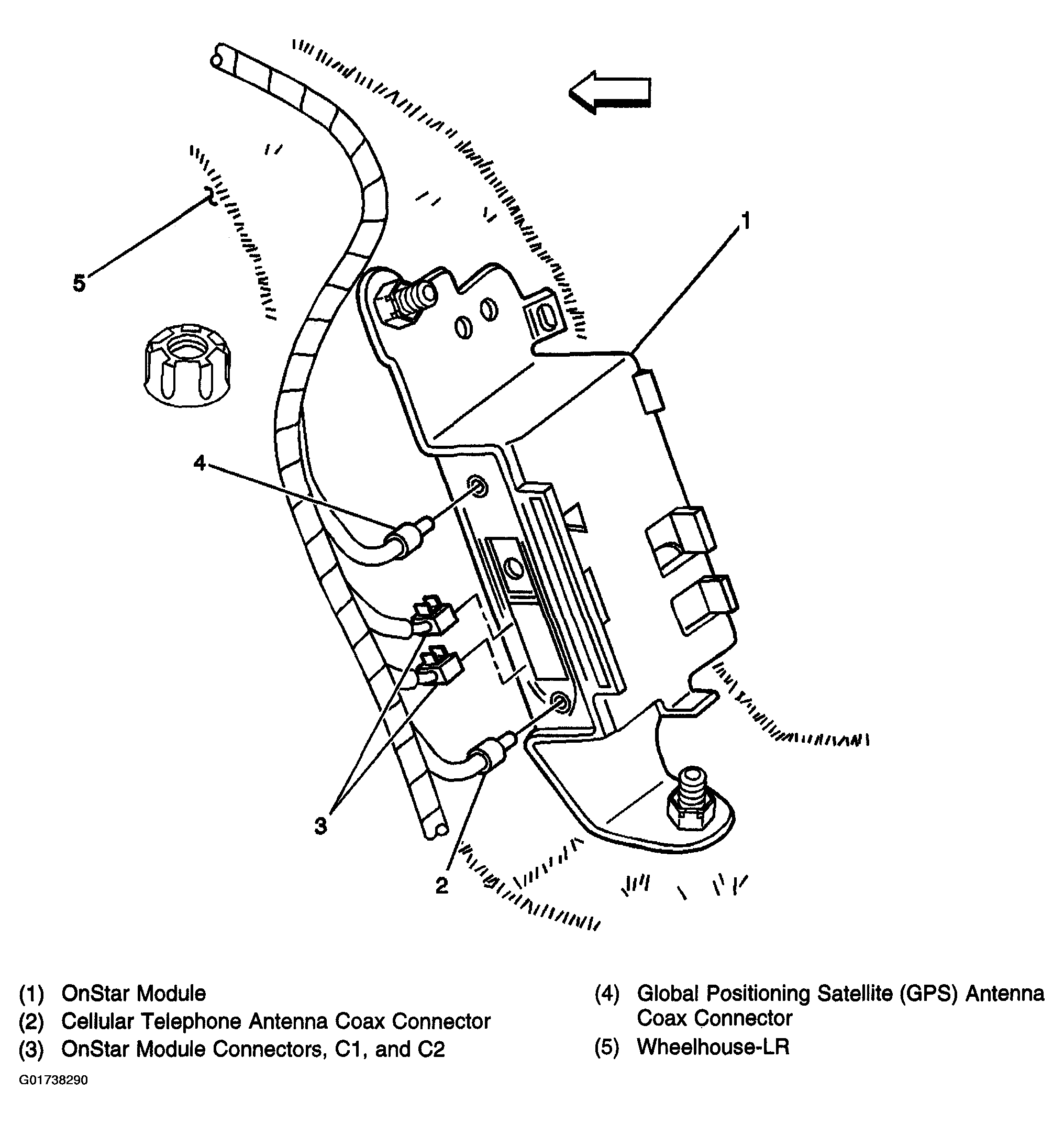

Fig 3: Locating OnStar® Module On Rear Of Left Rear Wheelhouse

Courtesy of GENERAL MOTORS CORP.
