Cellular Communication Connector End Views

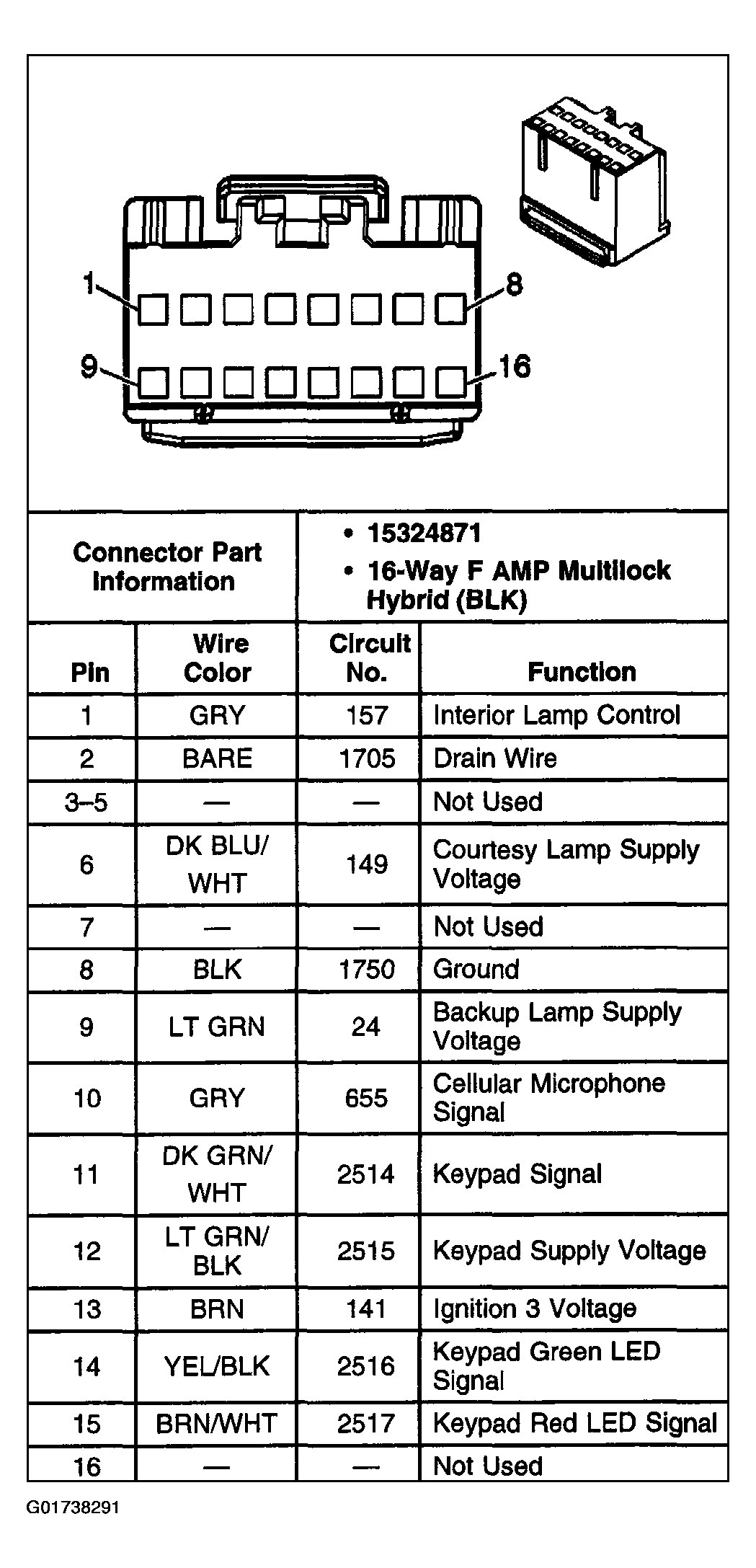

Fig 1: Identifying Inside Rearview Mirror (UE1) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying OnStar® Module C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying OnStar® Module C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
