Stationary Windows Connector End Views

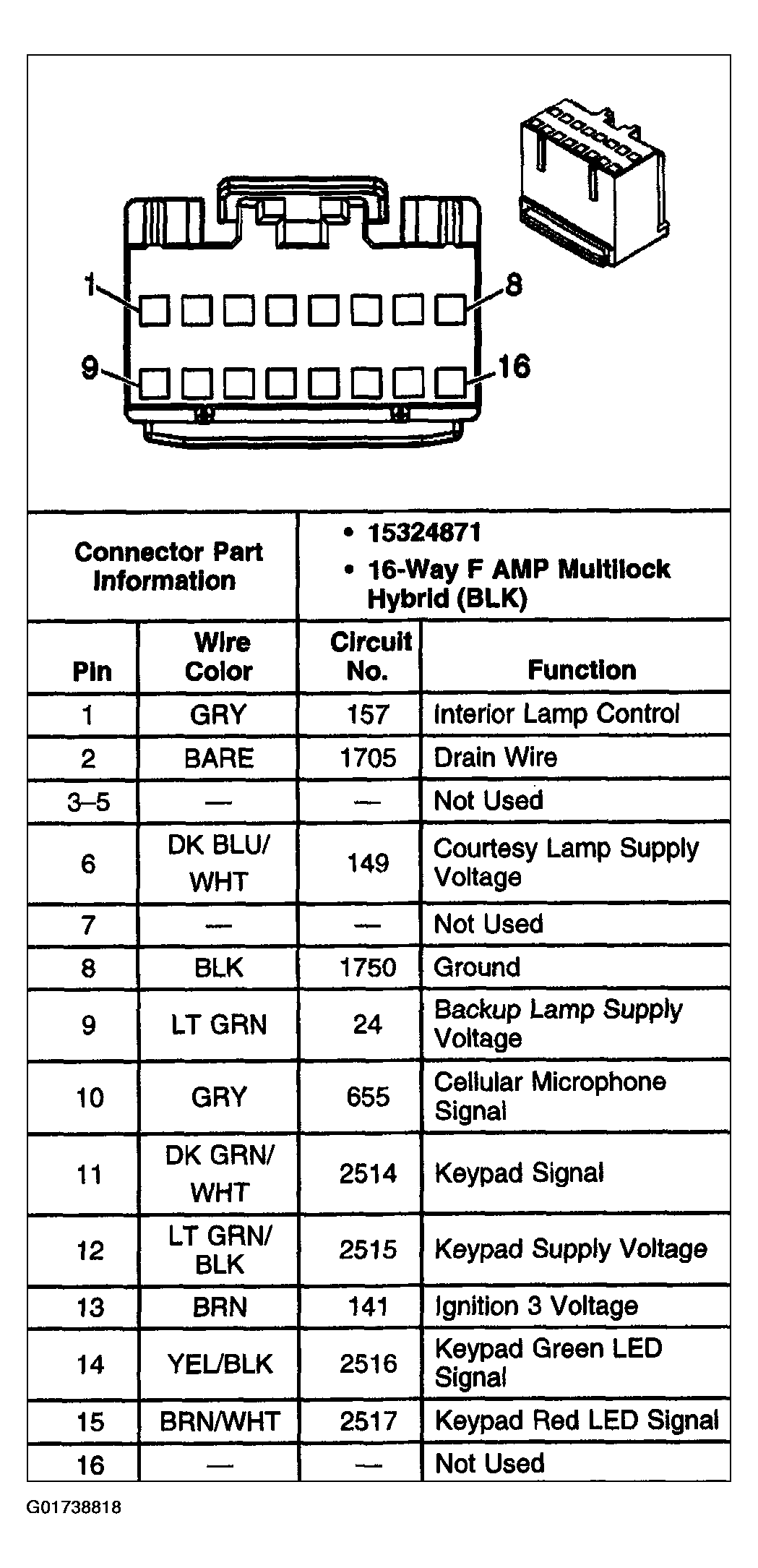

Fig 1: Identifying Inside Rearview Mirror (UE1) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

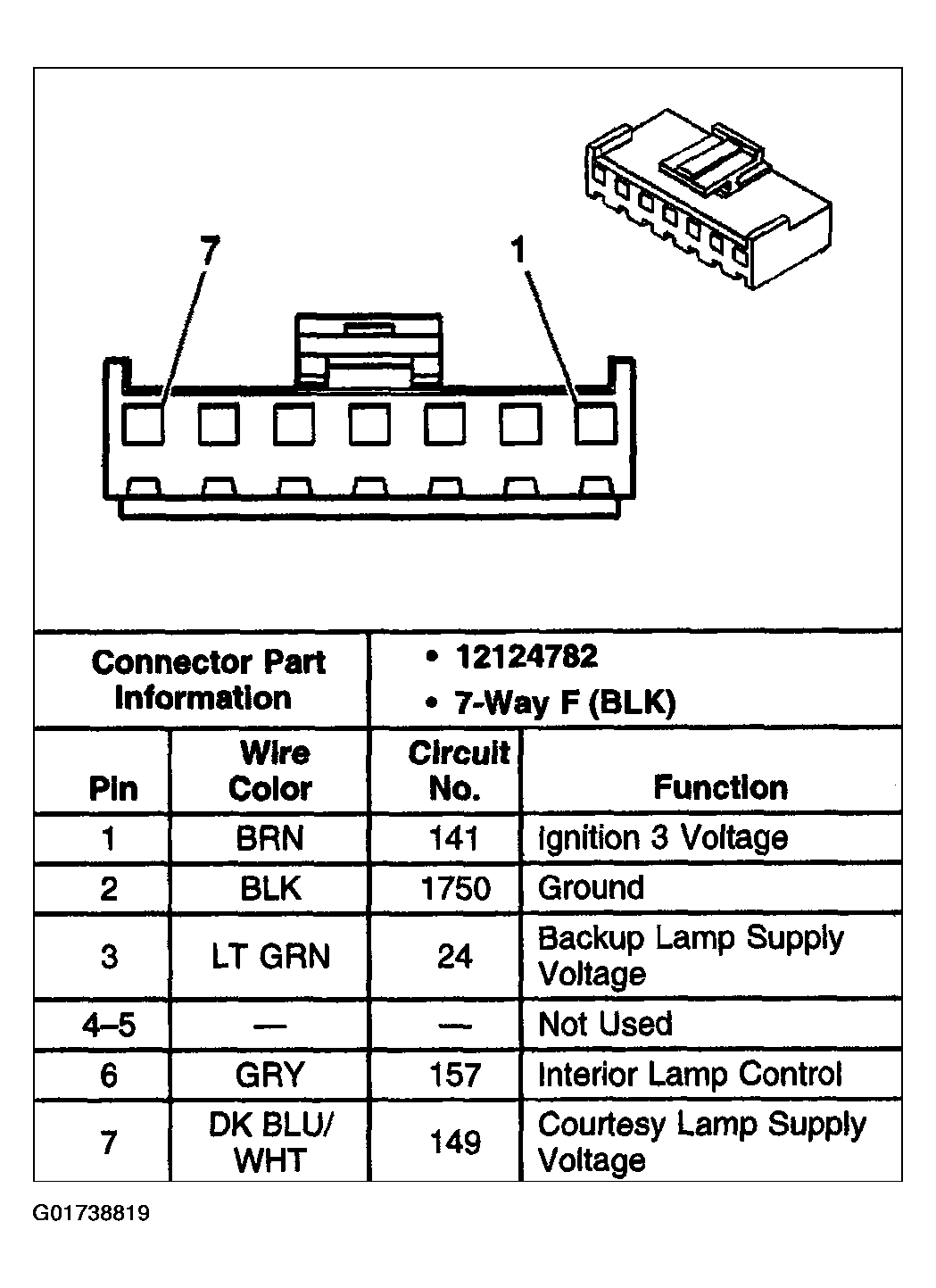

Fig 2: Identifying Inside Rearview Mirror (w/o UE1) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Rear Window Defogger Grid Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
