Radio Antenna Module Connector End View
Radio Antenna Module Connector End View

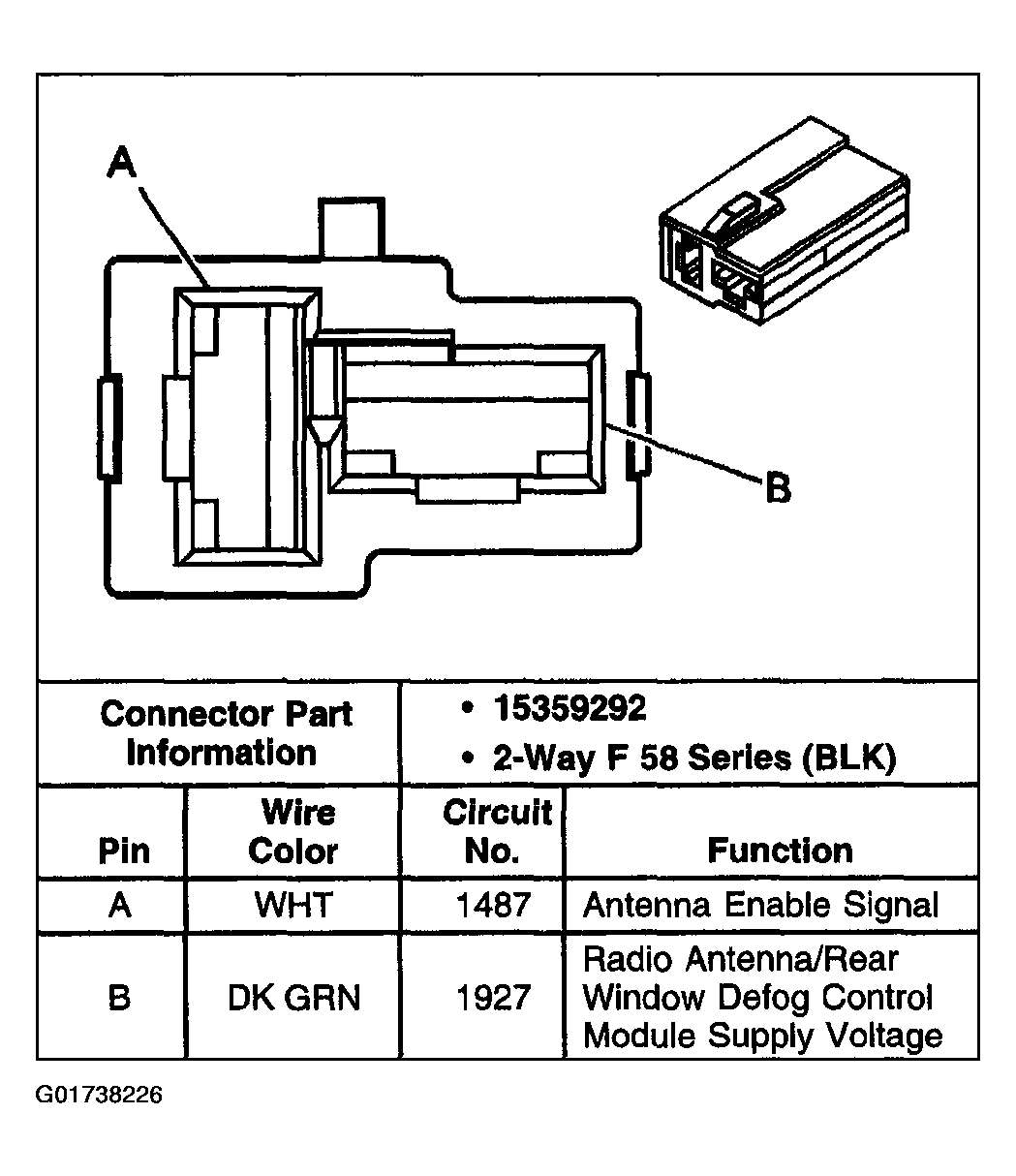

Fig 1: Radio Antenna Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
