Component Locator
›
Body Control Module Component Views
Body Control Module Component Views

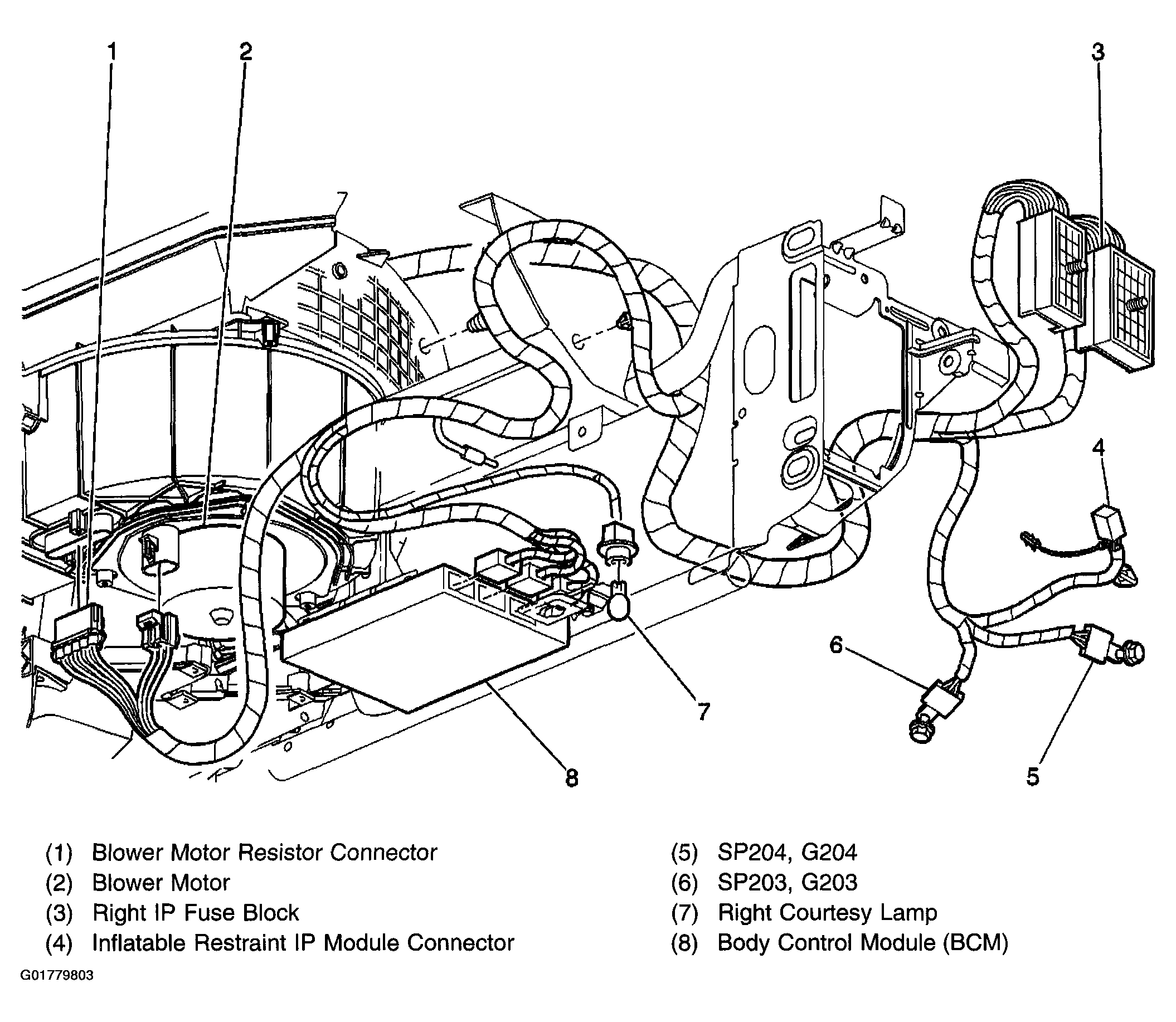

Fig 1: Identifying Under Right Side Of Instrument Panel Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
