Body Control Module Connector End Views

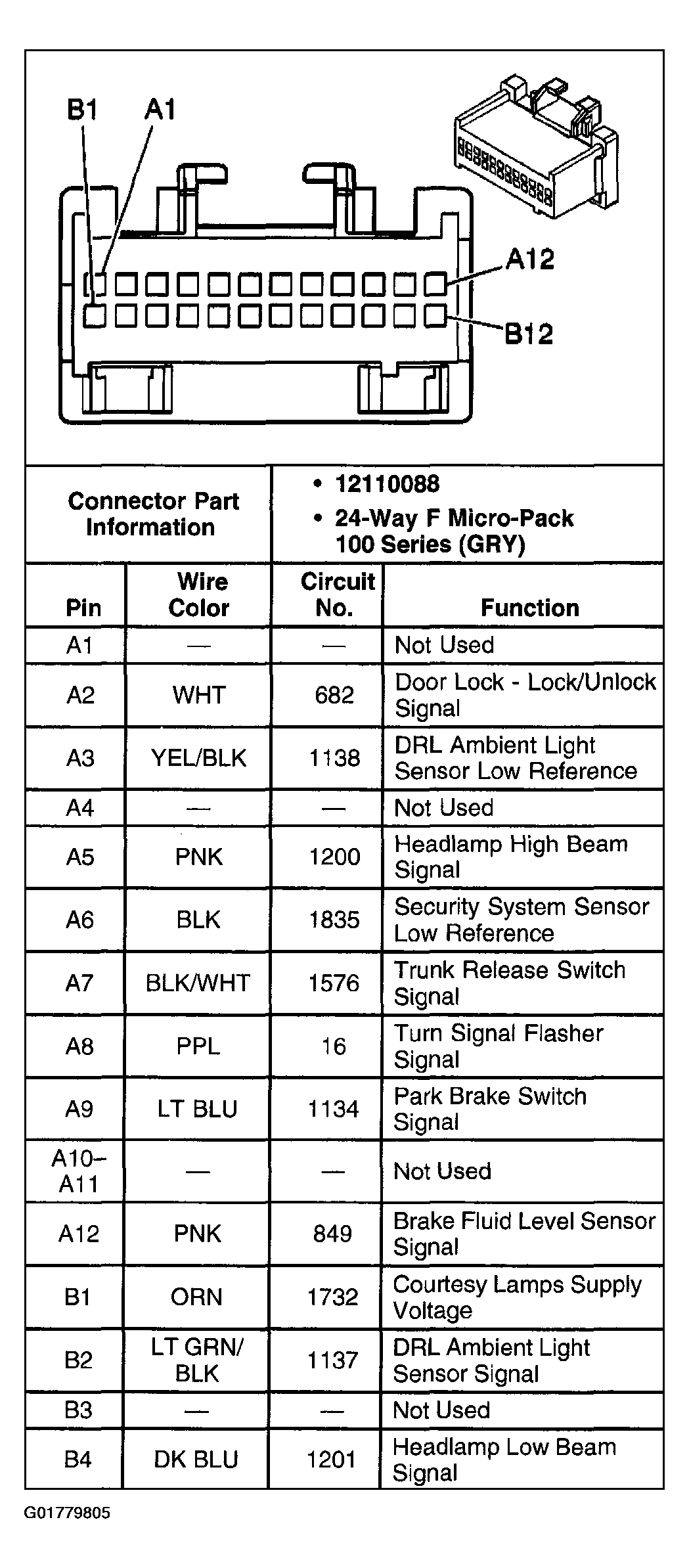

Fig 1: Identifying Body Control Module (BCM) C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

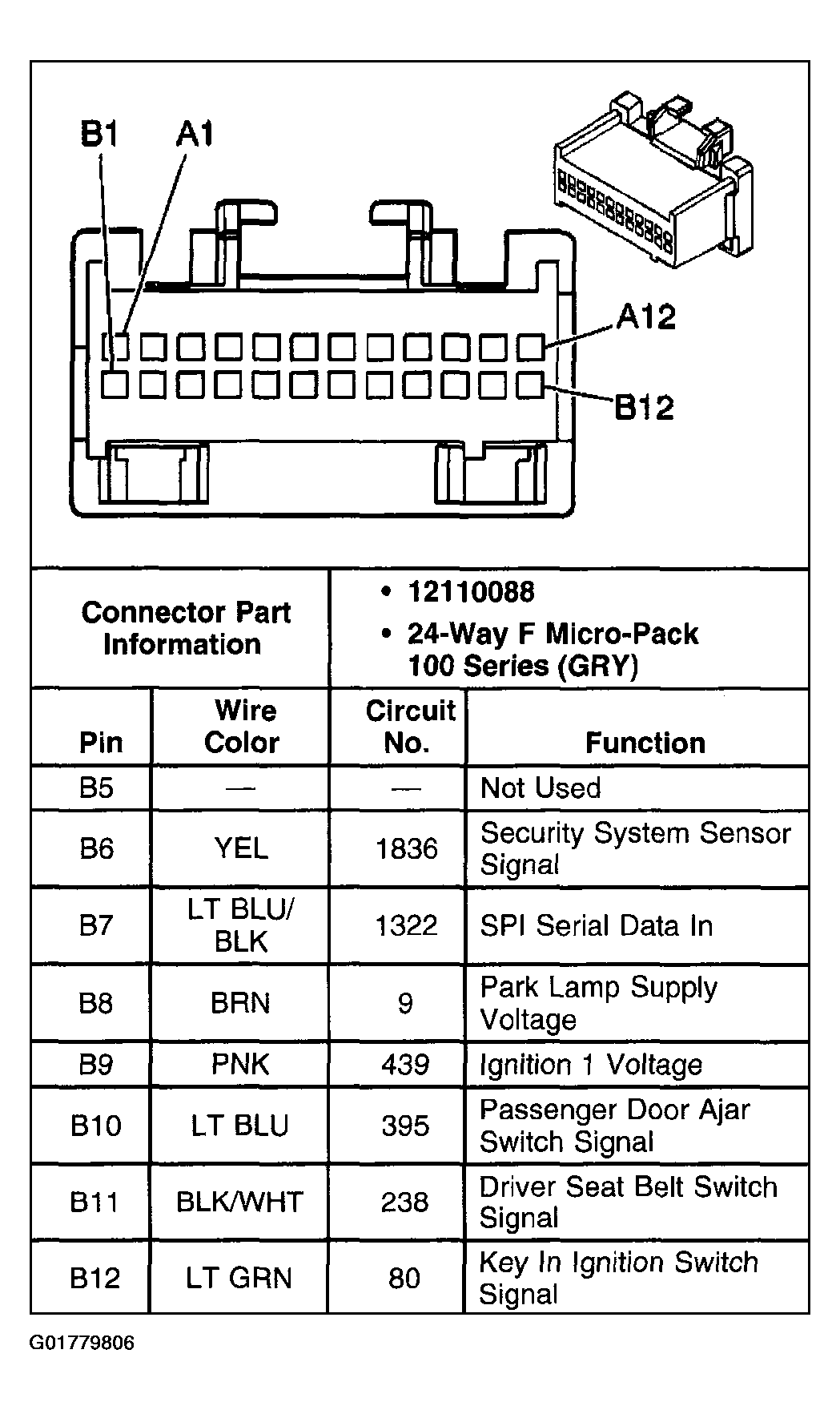

Fig 2: Identifying Body Control Module (BCM) C2 Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

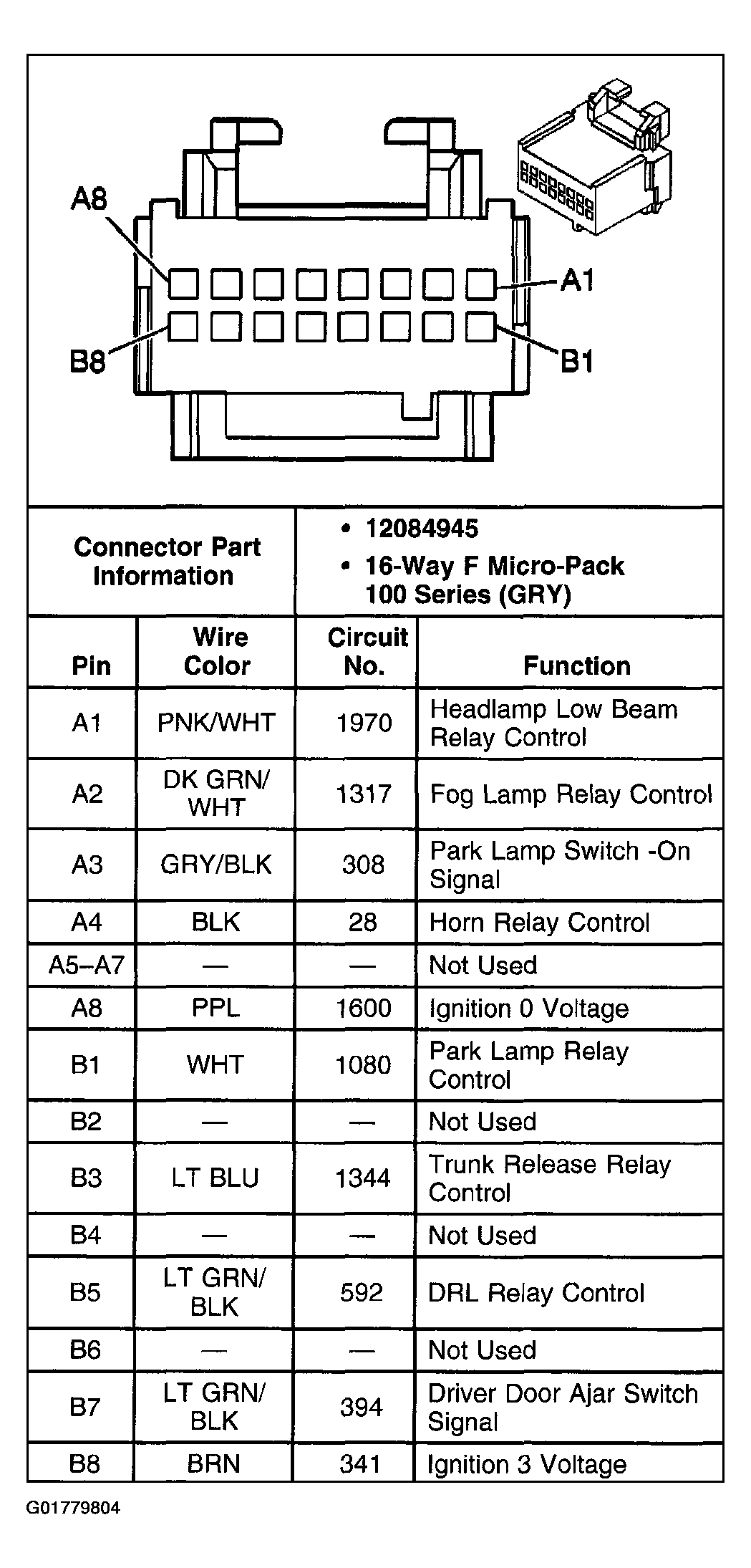

Fig 3: Identifying Body Control Module (BCM) C2 Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

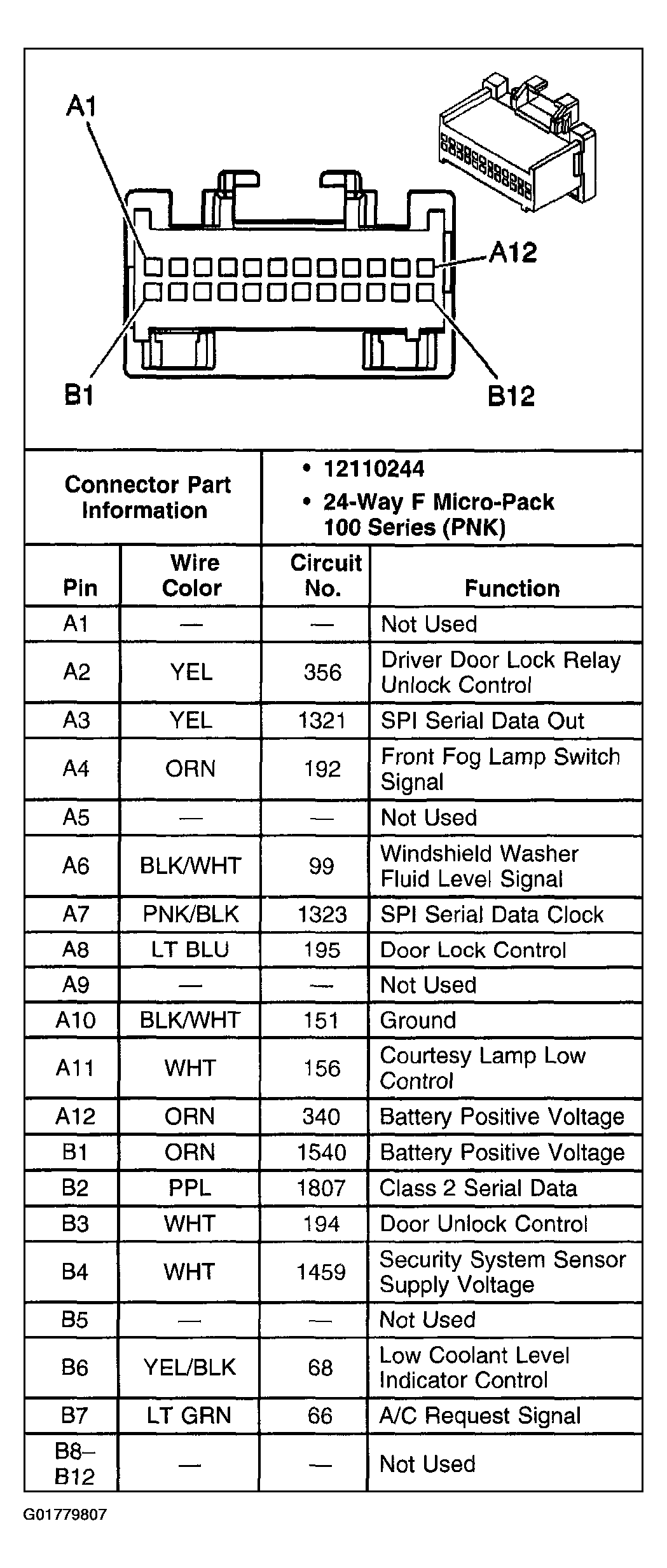

Fig 4: Identifying Body Control Module (BCM) C3 Connector End View

Courtesy of GENERAL MOTORS CORP.
