Removal Procedure

Grasp the mirror face firmly and pull it from the mirror body.

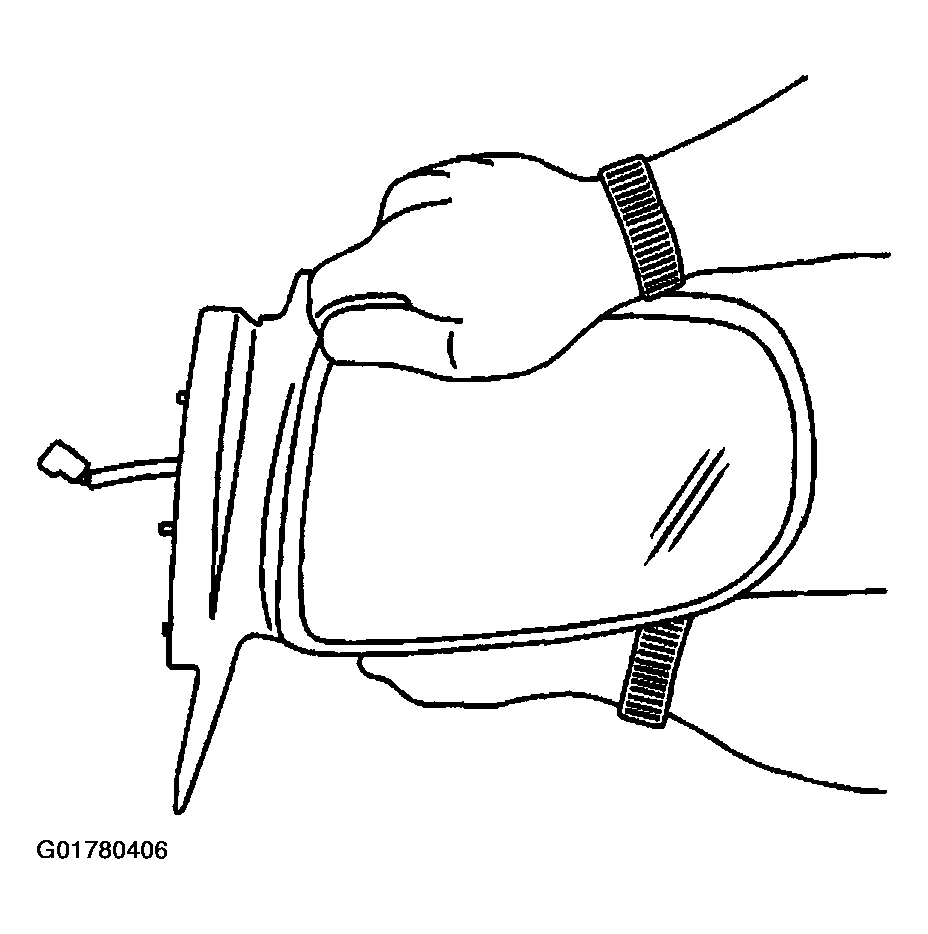

Fig 1: Pulling Mirror Face From Mirror Body
Courtesy of GENERAL MOTORS CORP.
Remove the 2 jackscrews from the back of the mirror case
- Bend the 2 jackscrews over.
- Press down on the side of the jackscrew popping the screw from the mirror glass case.
- Save the jackscrews for reinstallation to the mirror motor.
Fig 2: Removing Mirror Case Jackscrews
Courtesy of GENERAL MOTORS CORP.
