Removal Procedure

  1. Remove the rear door outer belt sealing strip screw (1) from the rear door outer belt sealing strip (2).
  2. Pull up on the door outer belt sealing strip (2) in order to release the strip from the retaining clips.
  3. Remove the rear door outer belt sealing strip (2) from the door.

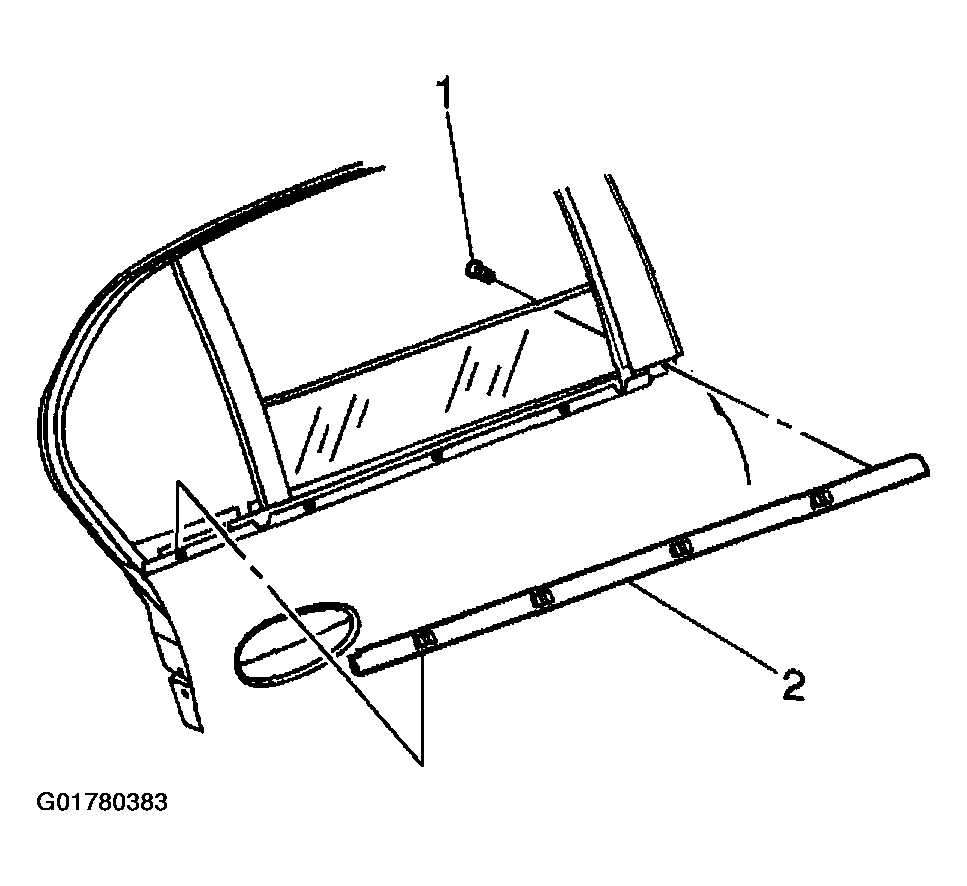

    Fig 1: Removing Rear Door Outer Belt Sealing Strip
    G01780383Courtesy of GENERAL MOTORS CORP.
