Stationary Windows Connector End Views

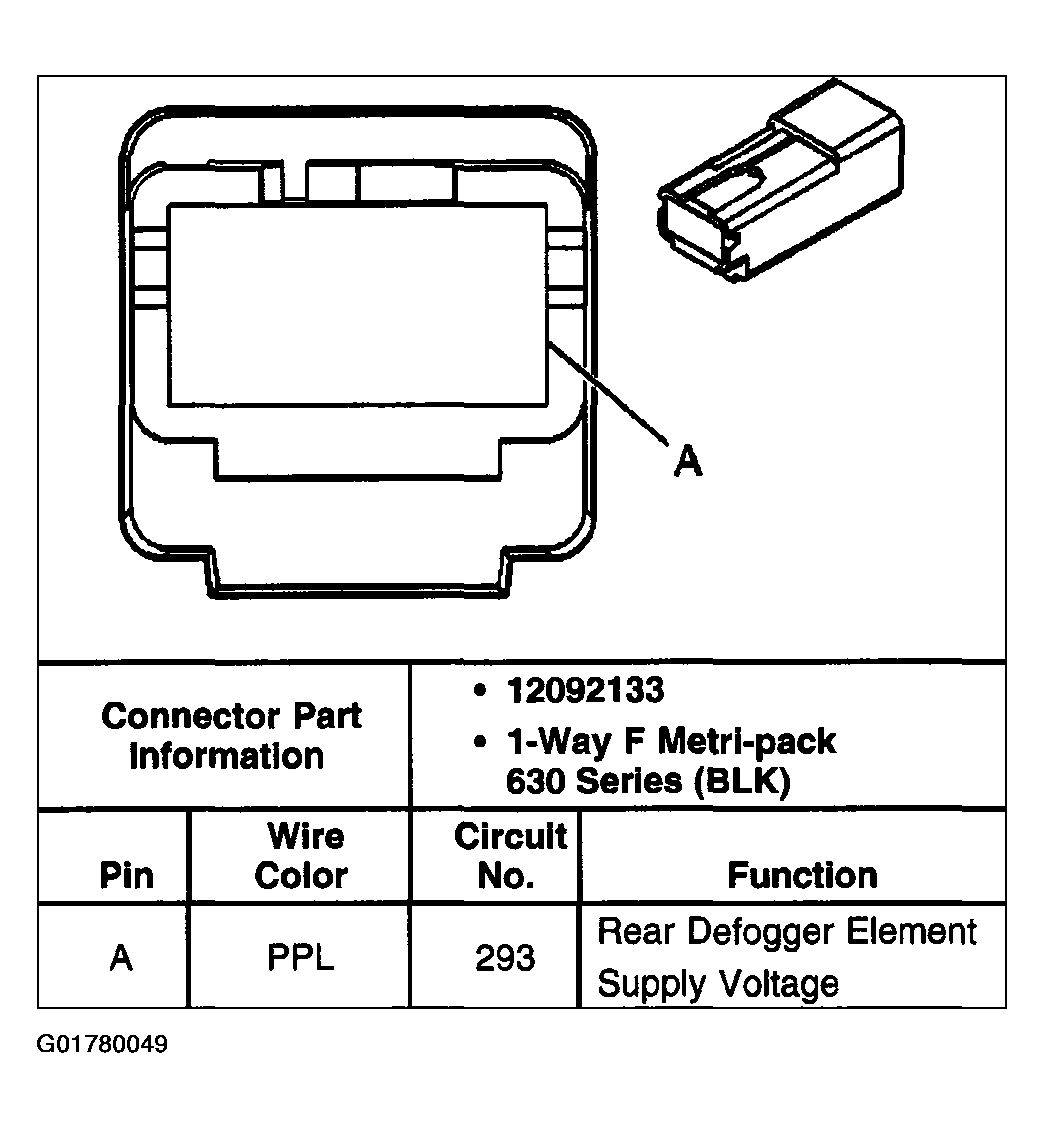

Fig 1: Identifying Rear Window Defogger Grid C1 Connector End View
G01780049Courtesy of GENERAL MOTORS CORP.

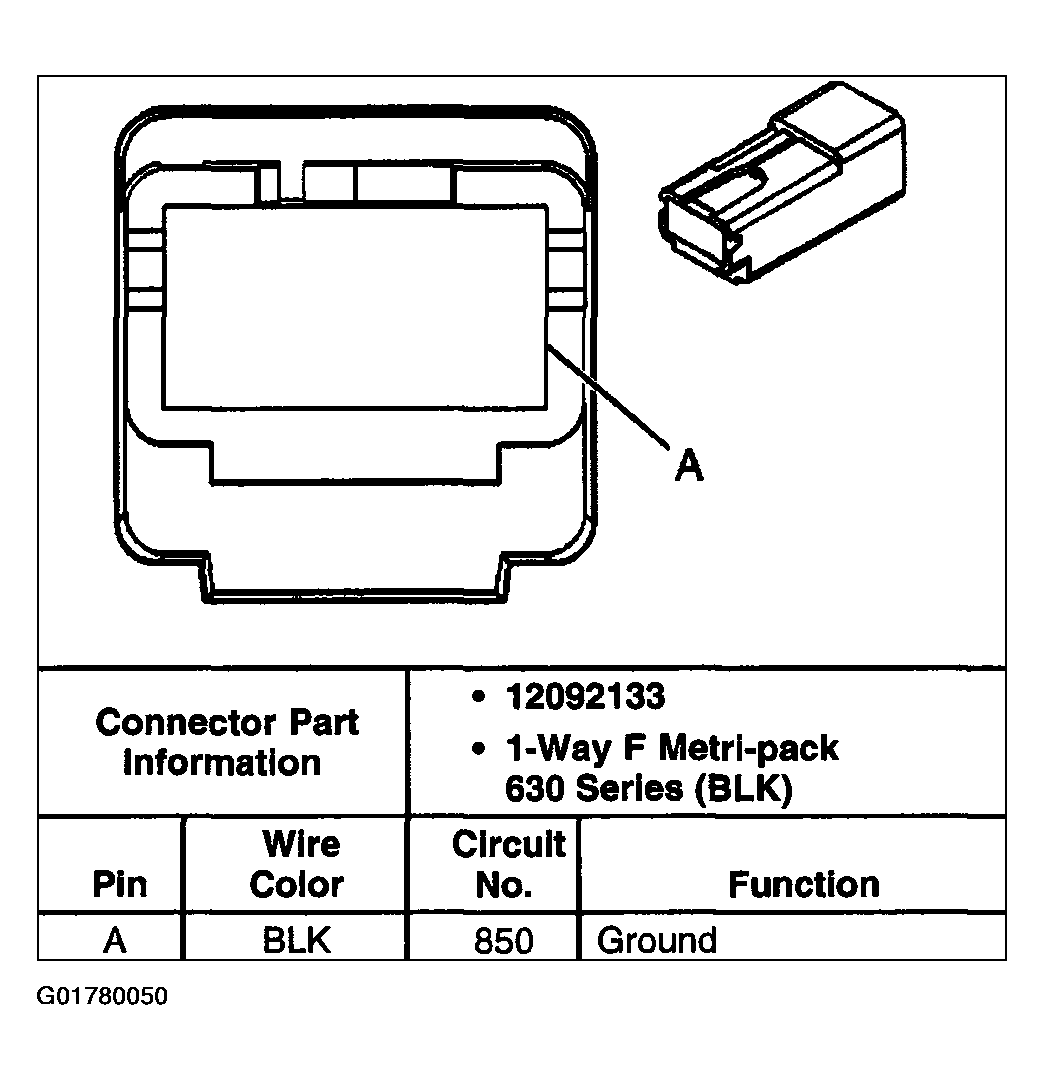

Fig 2: Identifying Rear Window Defogger Grid C2 Connector End View
G01780050Courtesy of GENERAL MOTORS CORP.
