Removal Procedure

  1. Disconnect the negative battery cable (2). Refer to Battery Negative Cable Disconnect/Connect Procedure  .
  2. Disconnect the positive battery cable (1 ).
  3. Remove the battery hold down retainer.

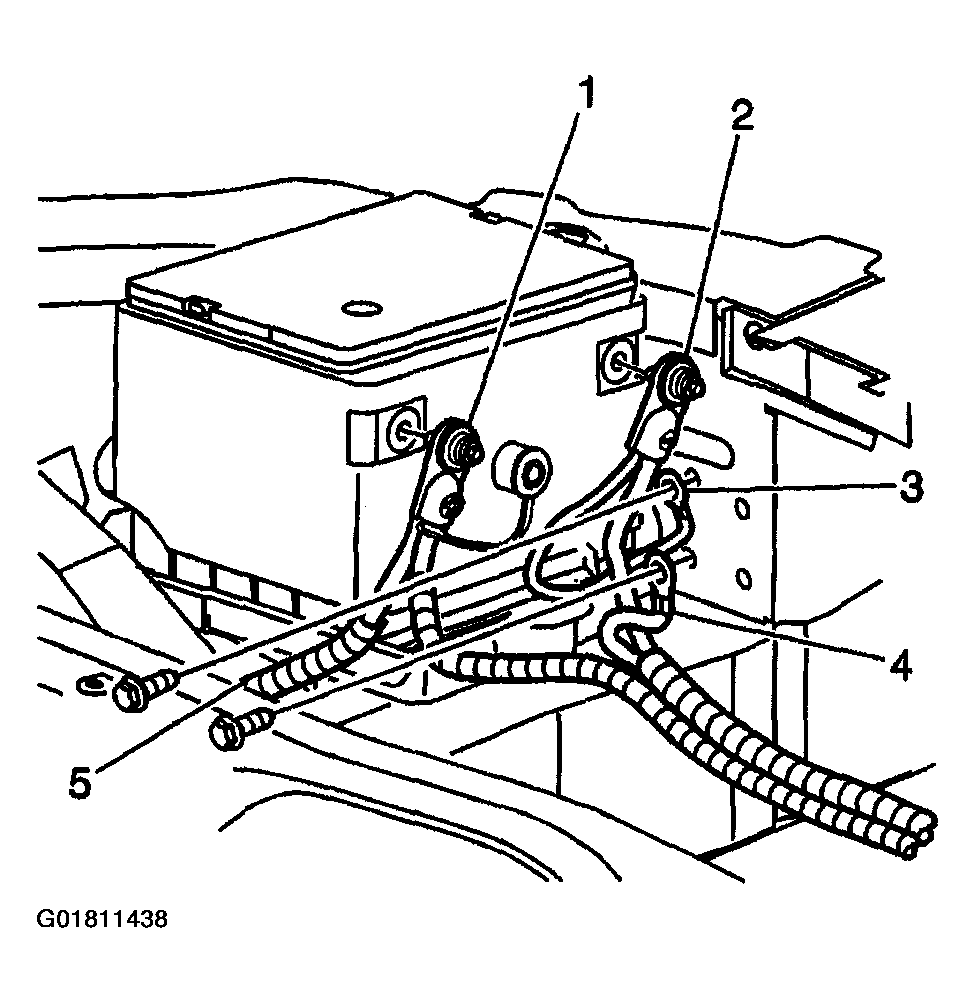

    Fig 1: Disconnecting Battery Cables
    G01811438Courtesy of GENERAL MOTORS CORP.

    Important:  Do not tip the battery more than 40 degrees during removal.

  4. Remove the battery.

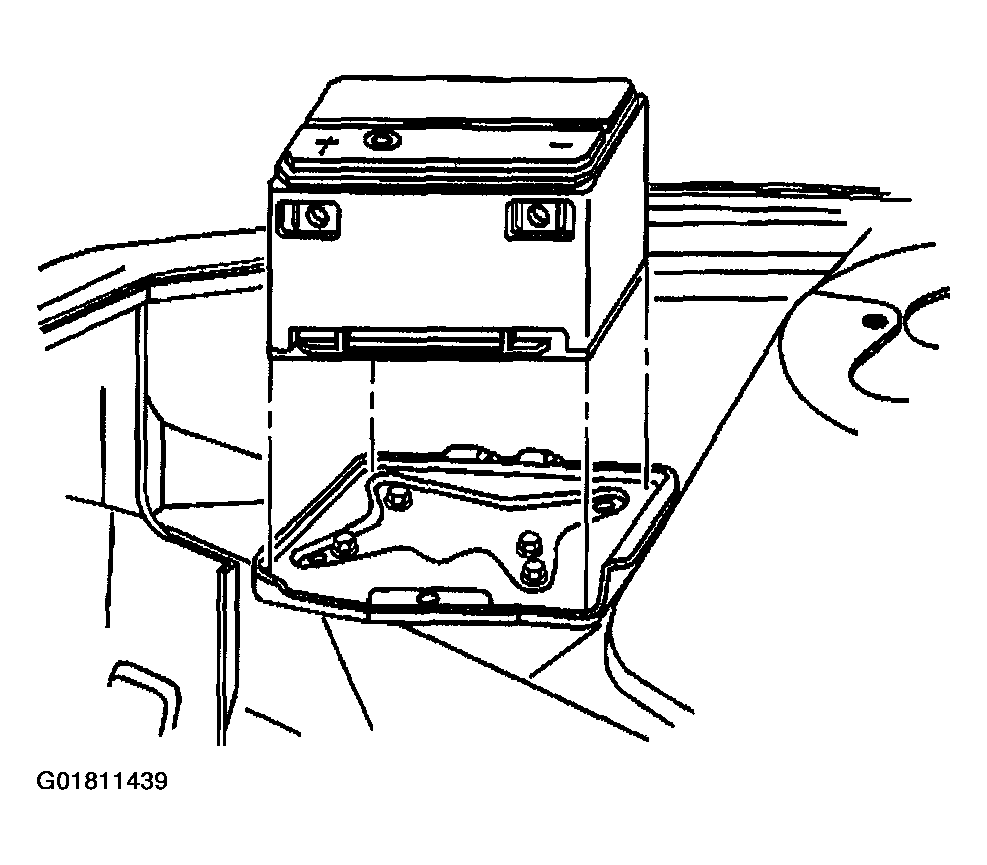

    Fig 2: Removing Battery
    G01811439Courtesy of GENERAL MOTORS CORP.
