Sunroof Control Module Connector End View C1
Sunroof Control Module Connector End View C1

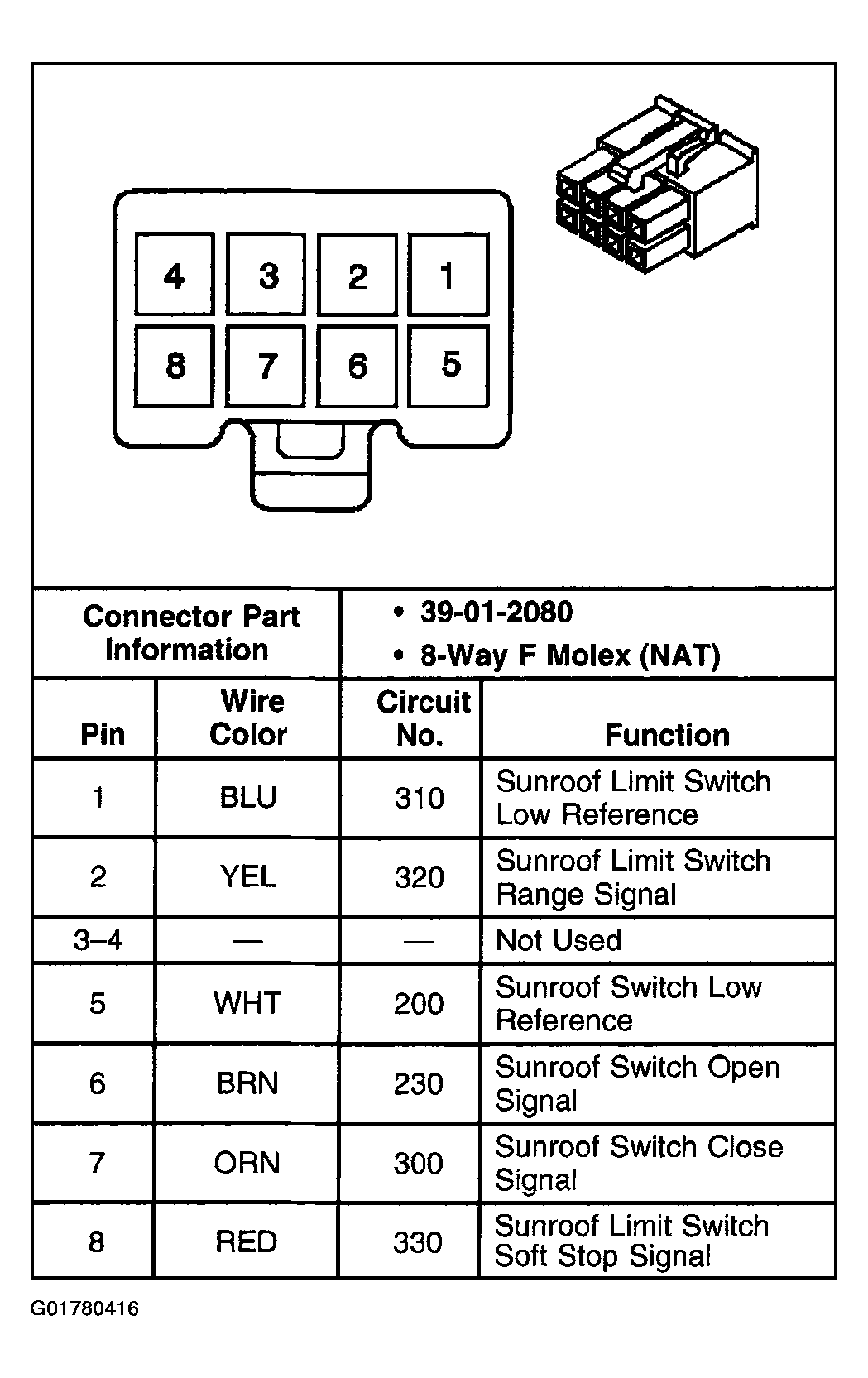

Fig 1: Sunroof Control Module C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
