Power Door Systems Component Views

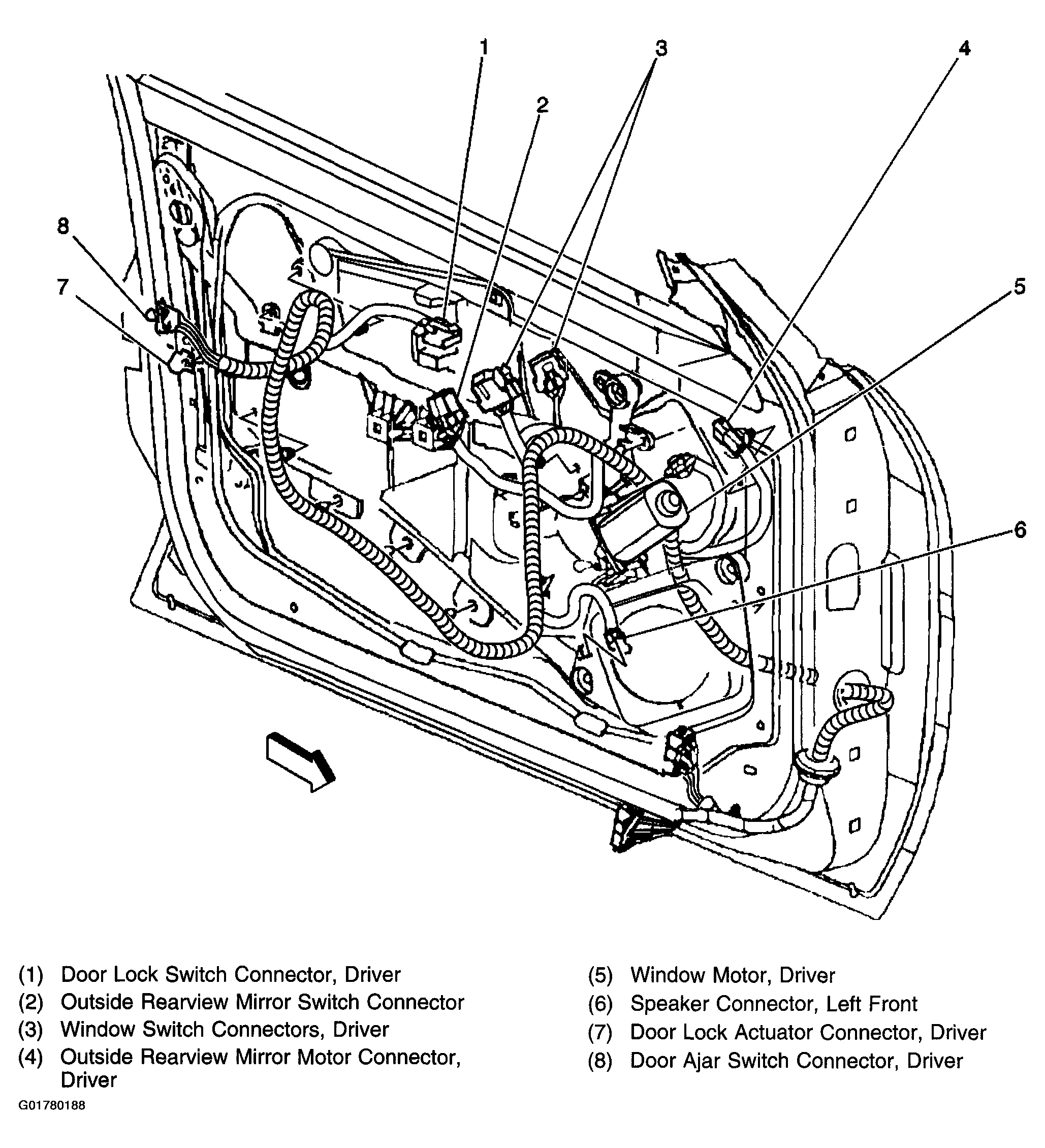

Fig 1: Identifying Left Door

Courtesy of GENERAL MOTORS CORP.

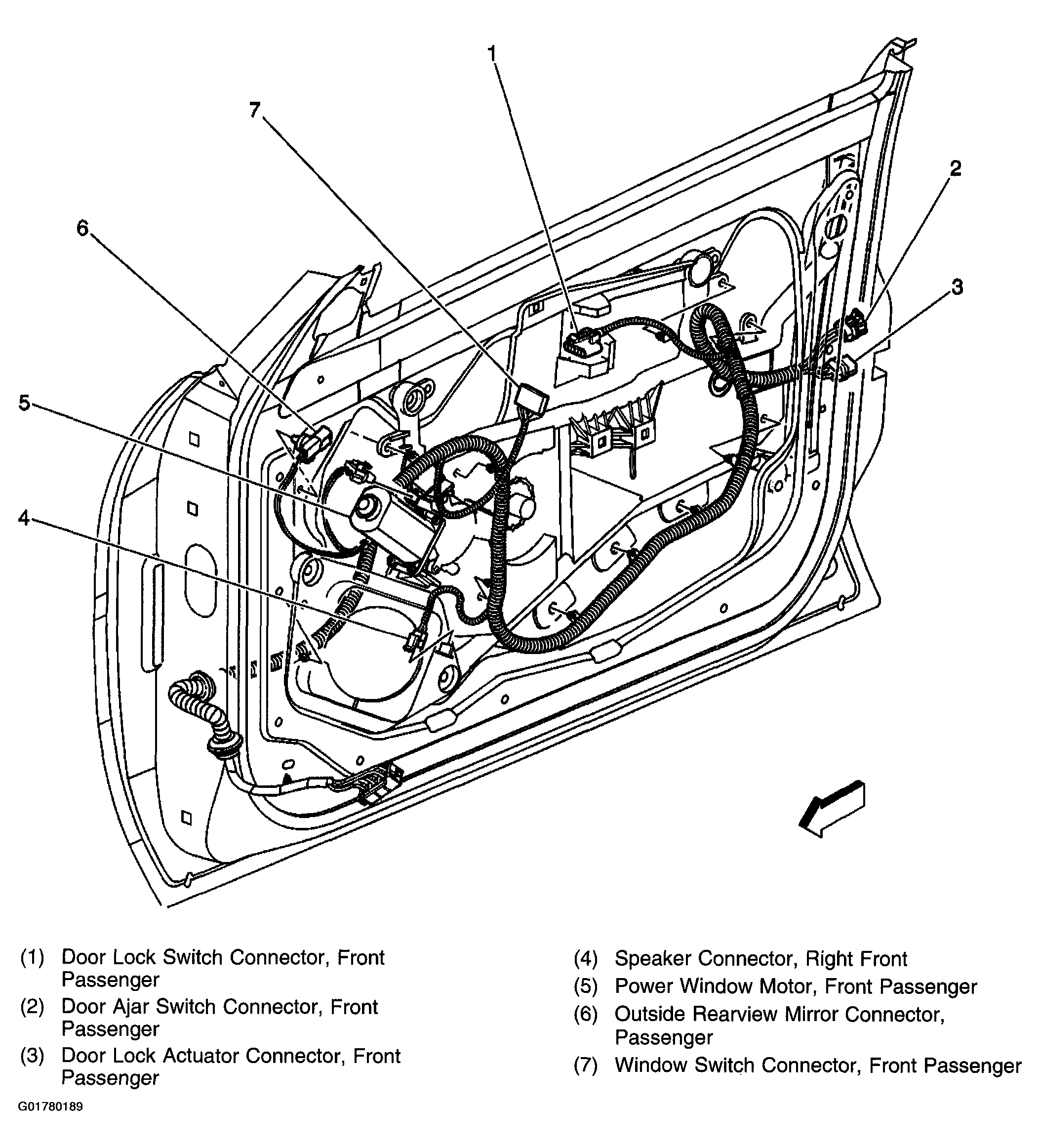

Fig 2: Identifying Right Door

Courtesy of GENERAL MOTORS CORP.

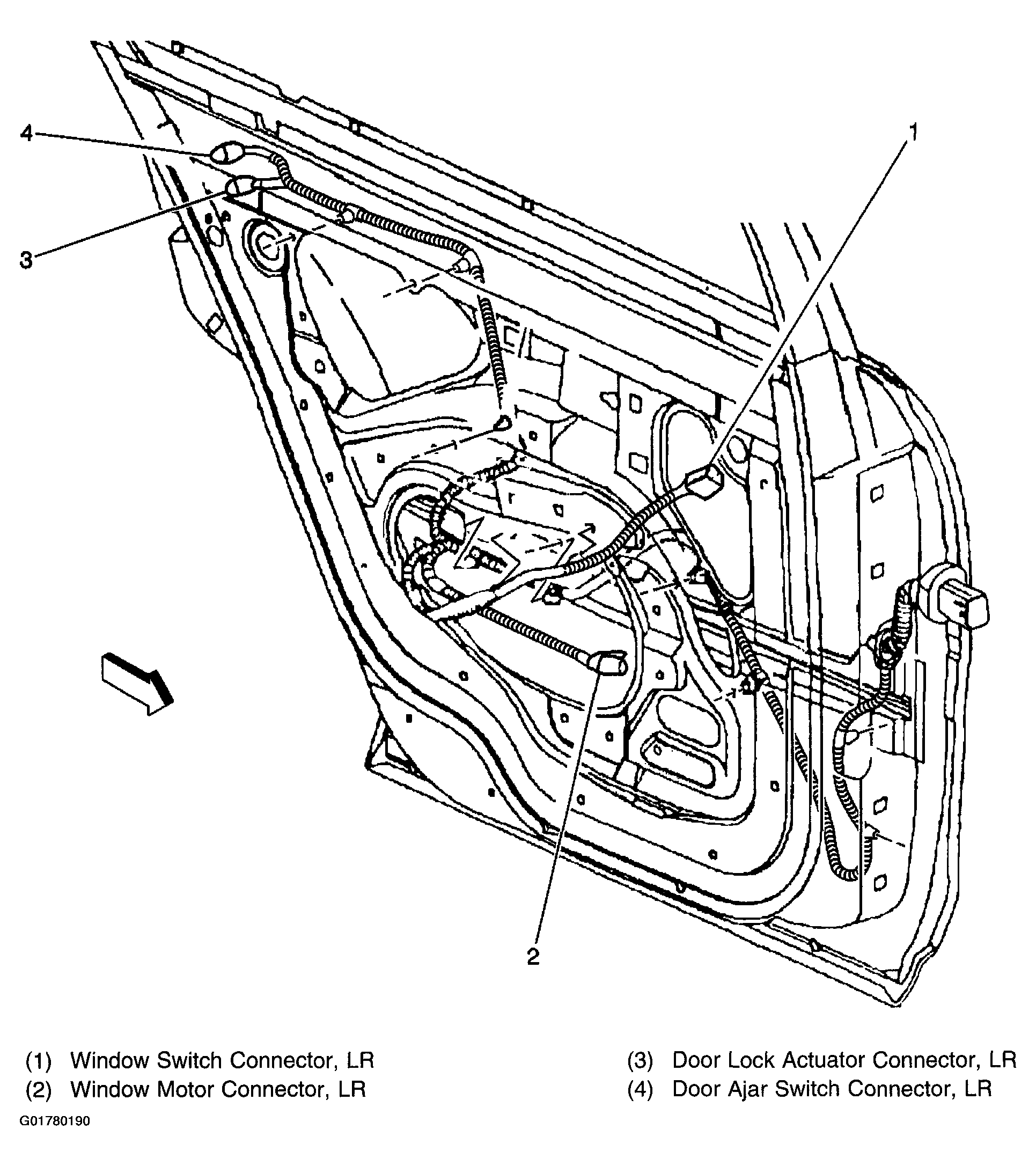

Fig 3: Identifying Left Rear Door (Right Rear Door Similar)

Courtesy of GENERAL MOTORS CORP.
