Home › Chevrolet › 2002 › Malibu LS › Repair and Diagnosis › Body & Frame › Windows › Door System, Mirror System & Window System › Repair Instructions › Door Frame Applique Replacement-Rear › Removal Procedure

Removal Procedure

  1. Remove the rear door outer belt sealing strip. Refer to Sealing Strip Replacement-Rear Door Window Belt Outer .
  2. Pull back enough of the window run channel from the forward edge of the rear door to access the rear door frame applique screws.
  3. Remove the rear door frame applique screws (2) from the rear door frame applique.
  4. Rotate the rear door frame applique (1) forward.
  5. Remove the rear door frame applique from the rear door.

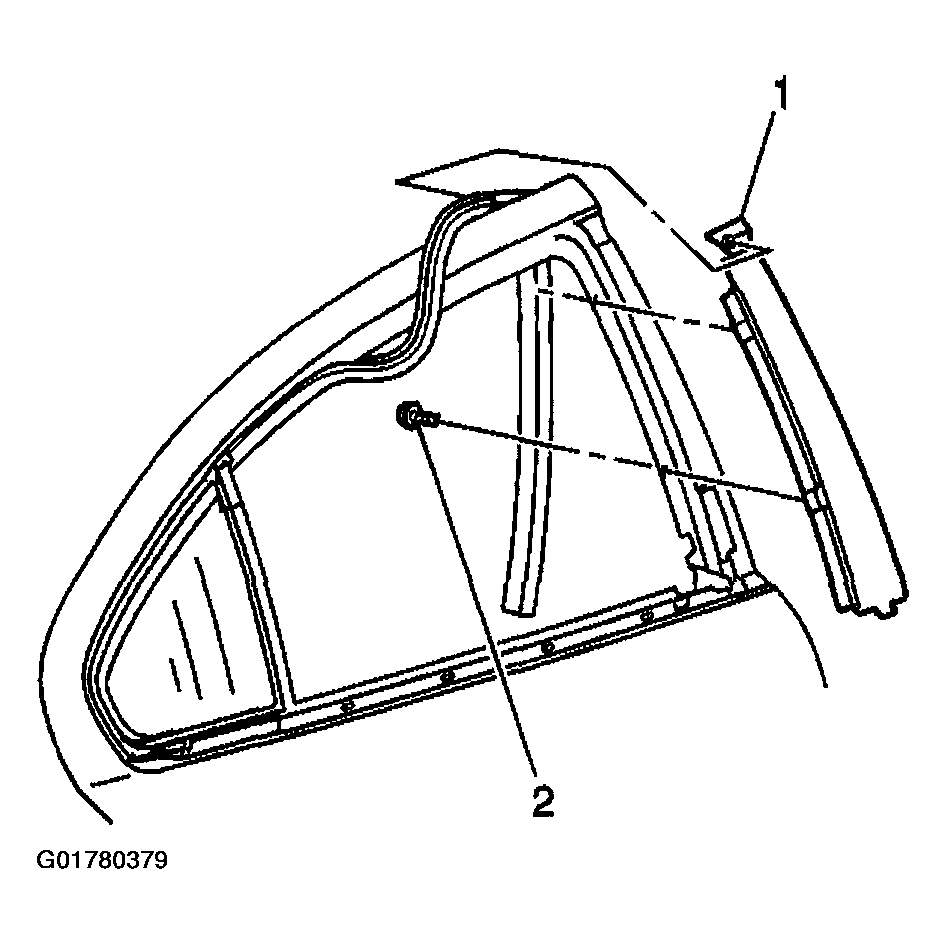

    Fig 1: Removing Rear Door Frame Applique
    G01780379Courtesy of GENERAL MOTORS CORP.
