Removal Procedure

  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door window. Refer to Window Replacement-Front Door .
  3. Remove the front door system locking module nuts.
  4. Remove the front door system locking module bolt.
  5. Remove the front door system locking module screw.
  6. Remove the front door lock screws.
  7. Remove the front door system locking module from the front door to gain access to the front door lock.
  8. Disconnect the front door outside handle lock rods from the front door lock.
  9. Disconnect the electrical harness from the front door system locking module and position aside.
  10. Remove the front door system locking module from the door.

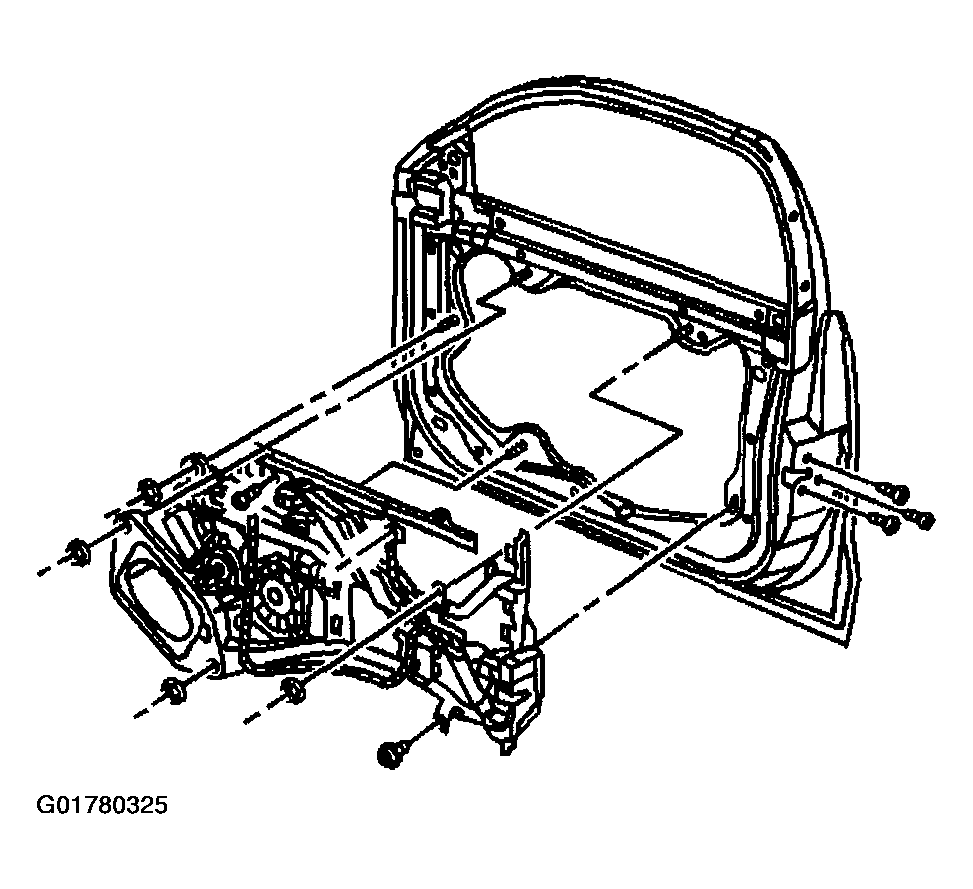

    Fig 1: Removing Front Door Locking System Module
    G01780325Courtesy of GENERAL MOTORS CORP.
