Installation Procedure

Install the power window switch to the accessory switch plate.
Press the window switch into the switch plate until retaining tabs are fully seated.

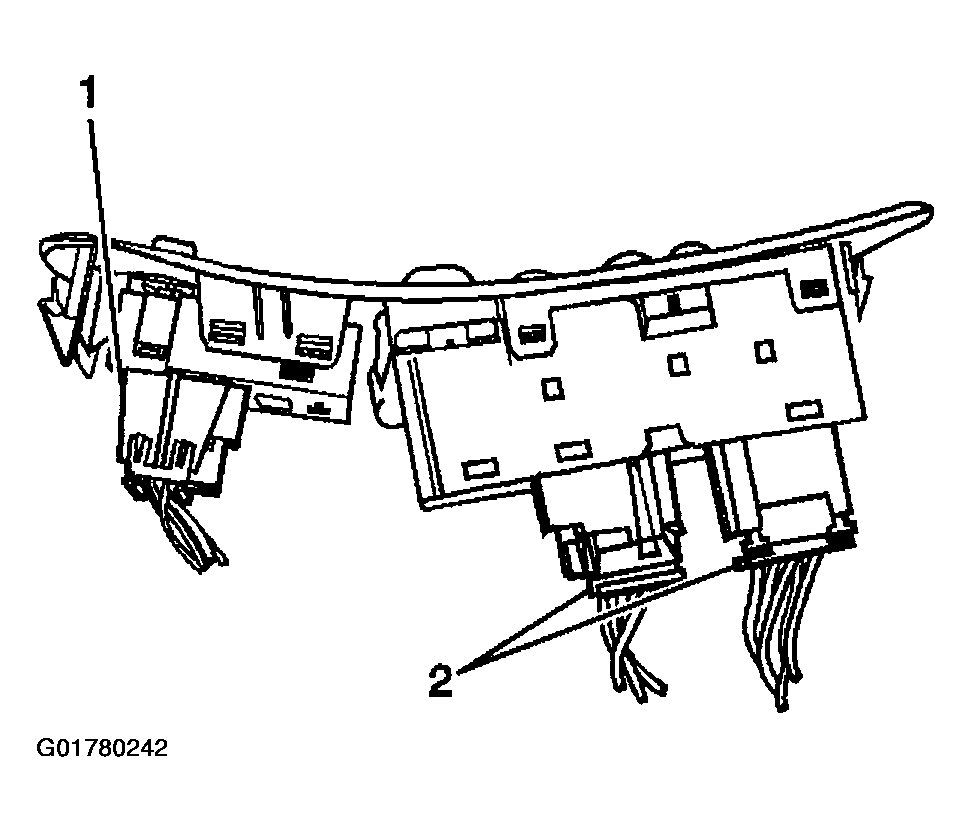

Connect the electrical connectors (2) to the power window switch.

Fig 1: Connecting Power Accessory Switch Plate Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

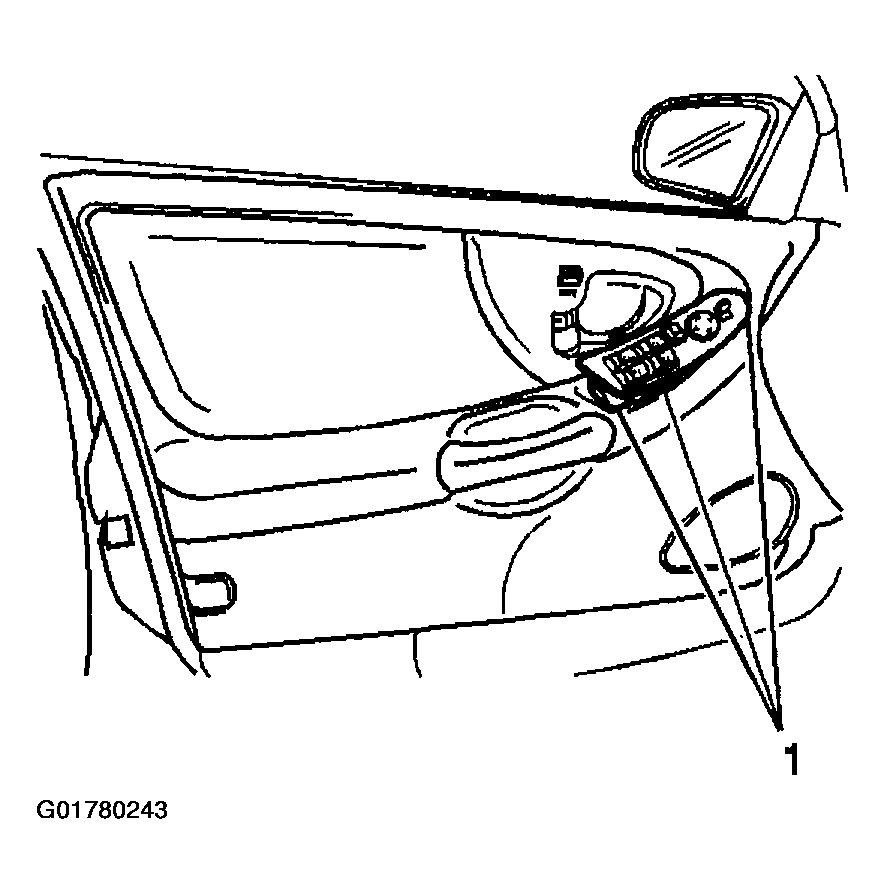

Install the accessory switch plate to the door trim panel.
Press the switch plate into the door trim panel until the retainers (1) are fully seated.

Fig 2: Installing Power Accessory Switch Plate
Courtesy of GENERAL MOTORS CORP.
