Removal Procedure

Place the rear door window assembly to the down position.
Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
Disengage the glass sash regulator (2) from the rear side door window (1).
Remove the door window frame applique. Refer to Door Frame Applique Replacement-Rear .

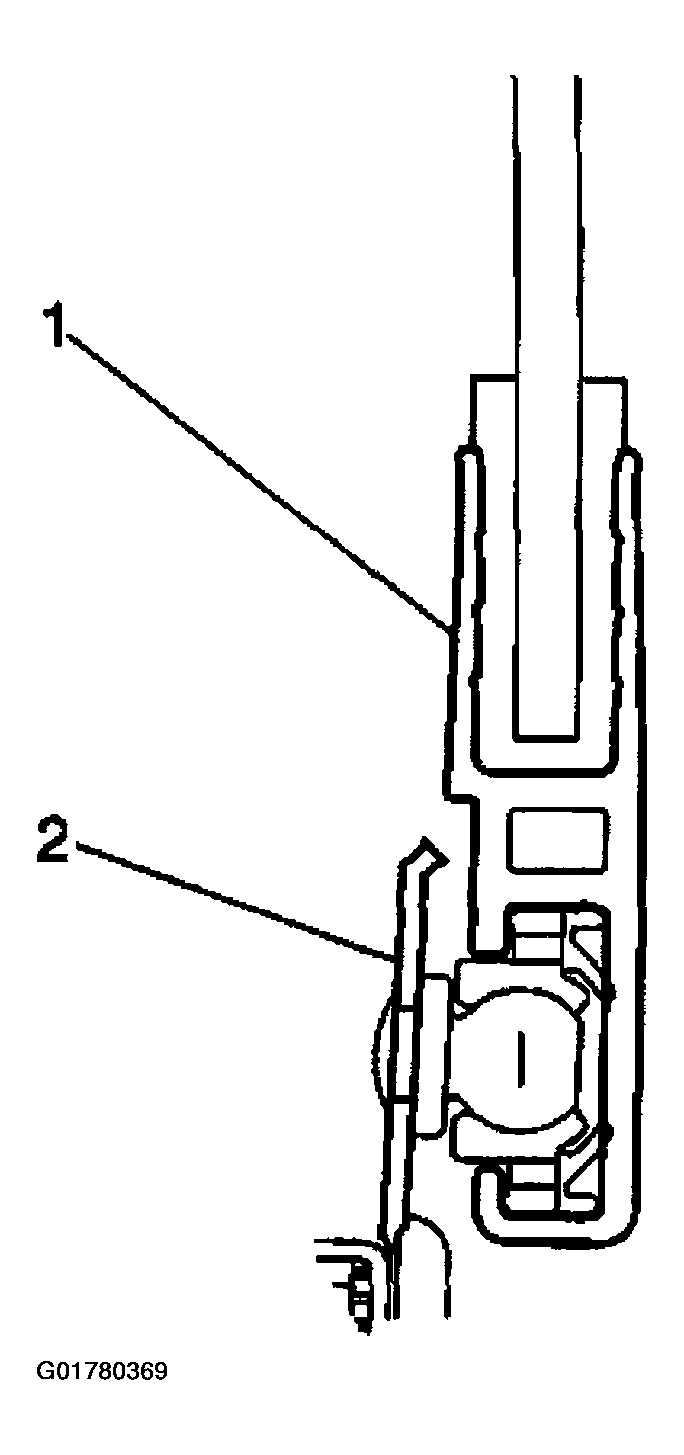

Fig 1: Disengaging Glass Sash Regulator
Courtesy of GENERAL MOTORS CORP.
Remove the rear side door window (1).

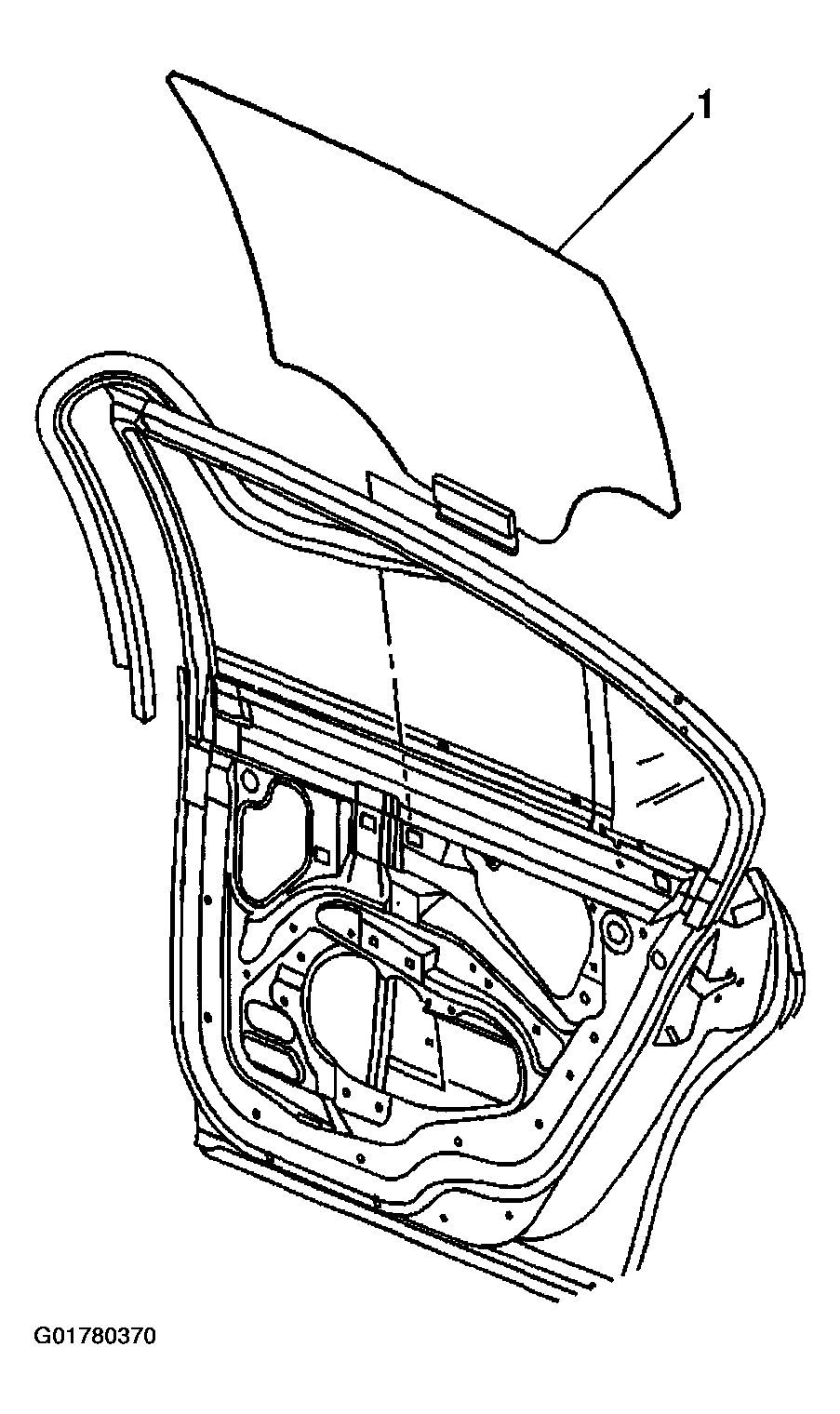

Fig 2: Removing Rear Side Door Window
Courtesy of GENERAL MOTORS CORP.
