Removal Procedure

  1. Remove the screws from the data link connector.
  2. Reposition the data link connector from the instrument panel.

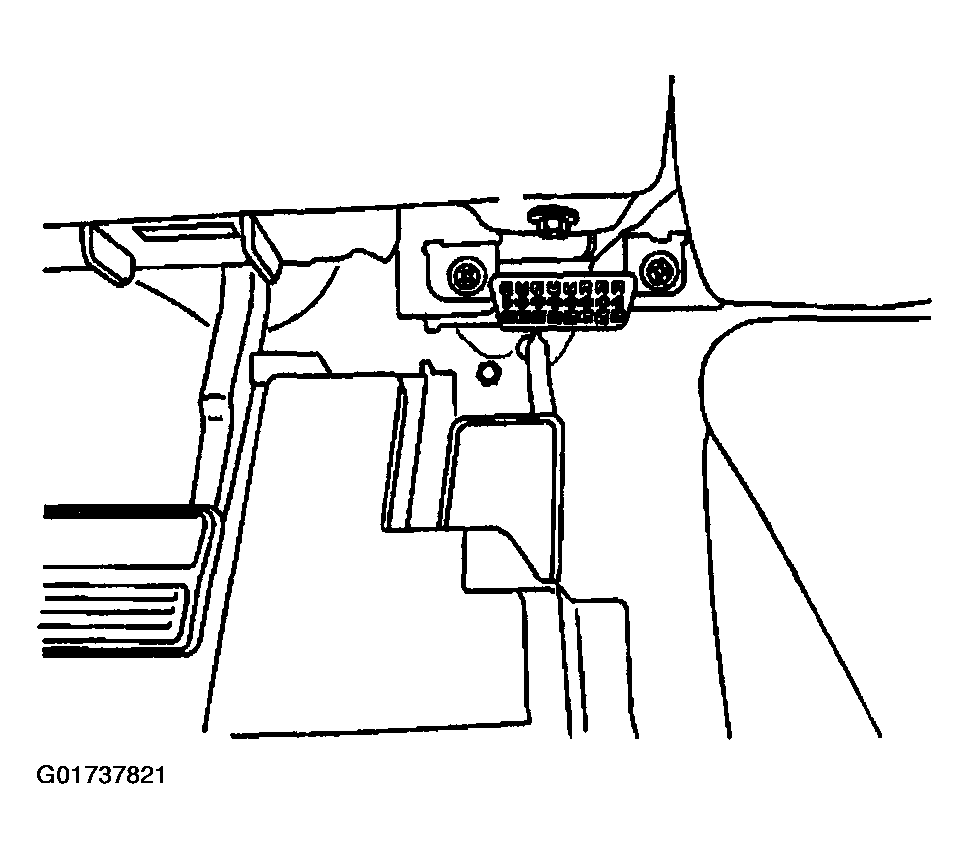

    Fig 1: Locating DLC
    G01737821Courtesy of GENERAL MOTORS CORP.
